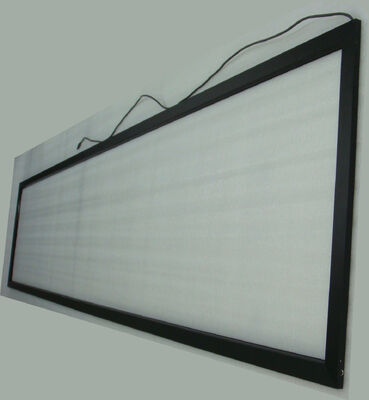

Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    • Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame
    • Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame
  • Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    Product Details:

    Place of Origin: China
    Brand Name: ZXT
    Certification: CE,FCC, ROHS
    Model Number: ZXT-T100-10A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: wooden case, carton, flight case are option
    Delivery Time: 3-5 working days
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 5,000 pcs per month
    Contact Now
    Detailed Product Description
    Interface: USB Resolution: 32768*32768
    Touch Points: Multi Touch 10 Points Product Name: Touch Screen Panel Kit
    Warranty: 1 Year Operation Systems: Windows 7, 8, 10,XP, Linux, Android

    100 Inch USB Interface Infrared IR 10 Points Multi Touch Screen Panel Kit 32768*32768



    Infrared Touch Panel Working Principal

    IR Touch Screen is a touch frame which is usually installed in front of the display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation





    How does it work?

    An infrared touchscreen uses an array of X-Y infrared LED and photo detector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These
    LED beams cross each other in vertical and horizontal patterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can
    detect essentially any input including a finger, gloved finger, stylus or pen. It is generally used in outdoor applications and point of sale systems which can not rely on a conductor
    (such as a bare finger) to activate the touchscreen. Unlike capacitive touchscreens, infrared touchscreens do not require any patterning on the glass which increases durability and optical clarity of the overall system. Infrared touchscreens are sensitive to dirt/dust that can interfere with the IR beams, and suffer from parallax in curved surfaces and accidental press when the user hovers his/her finger over the screen while searching for the item to be selected.



    Product Features:

    1. 1. Double-point write with peace,precise multi-point touching.
    1. 2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
    1. 3. Longevity of service ,maintenance free.
    1. 4. Aluminum alloy shell with strong stability.
    1. 5. Tempered glass with high light transmittance and true color rendition.
    1. 6. Without driver ,supporting plug and play.
    1. 7. Adapt to internal and external linked environment.
    1. 8. No touching tools,no special touching pen is required ,only your finger.
    1. 9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and

    other undesirable phenomena

    Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    Specifications



    Touch Technology Infrared Touch
    Performance
    Resolution(Interpolation) 4096*4096
    Resolution(Interpolation) 16:9,16:10,4:3
    Linearity Error 1.5mm
    Response Speed <15ms
    Mechanical
    Input Method Finger, gloved hand, or opaque object
    Touch Times Unlimited
    Touch Activation Force No minimum touch activation force is required with IR touch
    technology

    Minimum Touch Object 5mm
    Environmental suitability
    Temperature Operating: -20°C ~ 70°C
      Storage: -40°C ~ 85°C
    Relative Humidity Operating: 90%(non-condensing at max 40°C)
      Storage: 90%(non-condensing at max 40°C)
    Altitude Up to 3,000m
    Life Time At least 7-year
    Electrical
    Scan frequency 60Hz
    Communication interface USB 2.0 or RS232
    type
    Output Format Coordinate output
    Touch Accuracy 2MM(Over 90%Area)
    Operation Voltage Typical +DC 5V, +4.75V to +5.25V
    Power Supply USB, power ripple max.200mV rms
    Power <2W, operating current<200mA
    Agency Approvals CE, FCC Class B
    Operatin current <180mA



    Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    Applications
    • • TV
    • • PC
    • • Gaming device
    • • Exhibition
    • • Education training
    • • Pubic query machine
    • • Self-service machine
    • • Map directory
    • • Any interactive machine
    • • And more

    Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame

    Aluminum Alloy Shell Touch Screen Frame Kit , Touch Screen Conversion Frame
