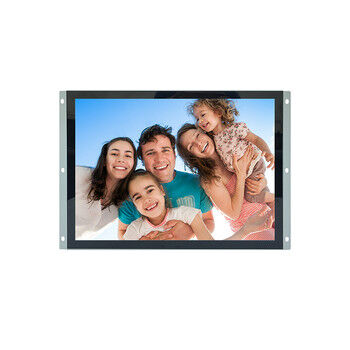

Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel

Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel

    • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
  • Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel

    Product Details:

    Place of Origin: China
    Brand Name: ZXT
    Certification: CE,FCC,ROHS
    Model Number: ZXT-OPT2150A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Standard export carton reinforced by wooden box
    Delivery Time: 7-10 workdays
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 5,000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Open Frame Touch Screen Monitor Size: 21.5 Inch
    Ratio: 16:9 Touch Screen: IR/Capacitive
    Application: Kiosk, Gaming Machine..etc Resolution: 1920*1080

    21.5 Inch 16:9 Open Frame Touch Screen Monitor For Kiosk / Arcade Game Machine Application



    This is tailor-made open frame with 10-point PCAP touch screen and 3M brand 120 degree viewing angle touch monitor, interface of HDMI in, DVI in and VGA in, meet user's various usage. Client inbuilt it into their own frame, touch screen size is customized.



    Installation bracket is on option, intallation holes will be prepared in the housing and with our L-shaped bracket, client to choose how and where to install on site.

    1. Size: 4:3 square screen----12.1 inch, 15 inch, 17 inch, 19 inch, 16:9 wide screen---21.5 inch, 22 inch, 32 inch
    2. Touch optional: 10-point capactive touch / infrared touch / resistive touch or without touch
    3. Material of back housing: Metal
    4. Support embedded rack mounted / VESA wall mounted
    5. RS232 touch interface, DC 12V power input, VGA signal input
    6. IPS wide view angle and high-contrast screen for stunning colors
    Product Description
    Model No. ZXT-OPT2150A
    LCD panel Size/Aspect ratio 21.5''/ 16:9
    Brightness 350 cd/m2
    Contrast Ratio 500:1
    Viewing Angle 170° (H)/160° (V)
    Colors 16.7 M
    Input terminals Signal VGA
    Power Interface 12V DC
    OSD Control Menu/Select,Auto,Up,Down,Power
    Touch Screen
    Resolution 1920*1080
    Response Time Below 10ms
    Optional Touch Type Capacitive/ Resistance/ Infrared
    Touch Media Finger
    Durability More than 10,000,000 single touch
    MTBF >60,000 hours
    Environments Temperature 0°C to 50°C (Operating)
    -20°C to 60°C (Storage )
    Humidity 10% RH to 90% RH (Operating)
    10% RH to 90% RH (Storage)
    Mount Embedded / Open frame
    Optional Interfaces can be customized



    Touch Screen

    Accurate rate: >99%, Transmittance: >90%

    Infrared touch screen:

    Touch Life of clik: more than 50 million times

    Projected capacitive touch

    senstive multi touch.

    Touch life of click: more than 50 million times,



    Detailed Images
    Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
    Industrial Touch Screen Monitor Display , High Contrast Touch Screen Lcd Panel
