Indoor Totem Interactive Touch Screen Kiosk 43 Inch Mall Panel Advertising Touch Screen

Indoor Totem Interactive Touch Screen Kiosk 43 Inch Mall Panel Advertising Touch Screen

    • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
  • Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen

    Product Details:

    Place of Origin: China
    Brand Name: ZXT
    Certification: CE,ROHS,FCC
    Model Number: ZXT=FRT430CM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: 1. Product packaged in one carton box with foam inside to protect the kiosk panel screen; 2. Multiple kiosks will be packaged in one wooden box, maximum 5 kiosks packaged in one wooden box. 3. Wooden box can be carried by forklift, and professional for i
    Delivery Time: 5-10 workdays after receive the payment
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 5,000 pcs per ponth
    Contact Now
    Detailed Product Description
    Size: 43 Inch Product Name: Touch Screen LCD Display Kiosk Totem
    Application: Indoor Touch Screen: Infrared IR/Nnao Touch Foil/Capacitive Touch
    LCD Panel: LG, AUO, Samsung Resolution: 1920*1080

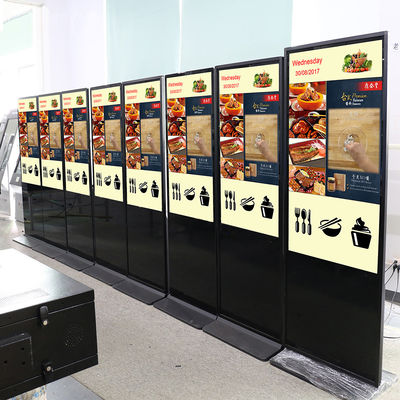

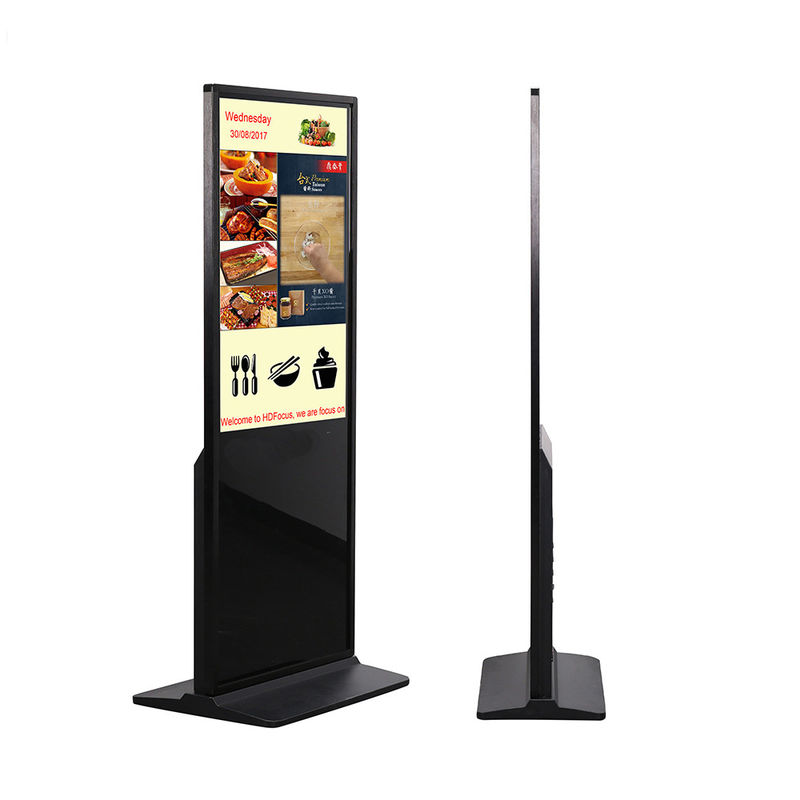

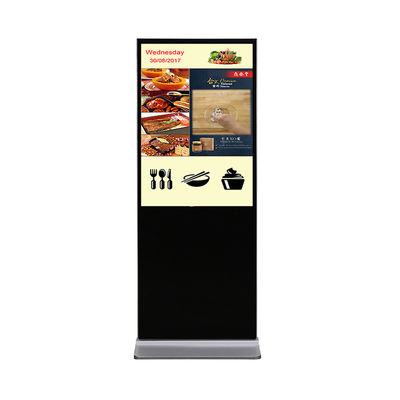

    Indoor Totem 43 Inch Mall Panel Advertising Touch Screen Digital Signage LCD Display Kiosk



    1: Freestanding Digital Posters are fitted with a commercial grade LCD panel they have the ability to be in constant use, no buttons, controls, logos or branding on show and are generally much brighter than LCD panels found in home TVs. A mild steel enclosure and a stylish tempered glass front protect the internal components from potential damage.


    2: The displays are ideally used as advertising, retail environment, FMCG, Cash & Carry’s, Bars, Restaurants, Estate Agents, Dentistry, Hair Salons, messaging systems for retail;

    3: Public service such as hospitals, financial institutions and places of entertainment such as a gym or cinema.They are also suitable for applications in restaurants, take-aways and other fast food outlets;Stores, Mall, hotel, education, airport, large chains, where need advertising area,and much more.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen

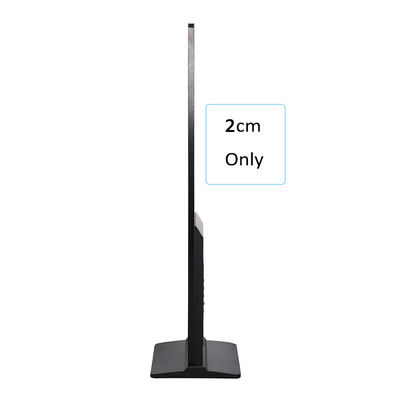

    ZXT produce super slim freestanding totem with only 20mm thickness.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    Creative design, ZXT make you different from others.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    Wide range of viewing angle, best display effect.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    Rich interfaces, quite user friendly.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    Detailed product dimension drawing, with 42", 50" and 55" size available.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen
    WIFI connection, easy for multiple kiosks central control.
    Indoor Totem Interactive Touch Screen Kiosk 43  Inch Mall Panel Advertising Touch Screen

    We can customize the kiosk with printer, camera, card reader, 3G, 4G, 5G, wheels...




    Specification



    Screen Display Screen 43” TFT with LED backlight
    Display Ratio 16:9
    Color 16.77M colors
    Display area 941.184*529.416mm
    Resolution 1920*1080
    Brightness 450cd/m2
    Contrast 4000:1
    View Angle 178°(Horizontal / Vertical)
    Life time Over 50,000hrs
    Interface USB USB*2
    HDMI Output HDMI*1
    COM COM*1, RS232 serial port
    RJ45 RJ45*1
    Others Color Black,Champagne gold, Silver white
    Speaker 5W*2
    Floorstand Basement*1
    Voltage DC12V/AC100-240V 50/60Hz
    Power 80W
    Working Temperature 0℃- 35 ℃
    Working Humidity 5% to 90%
    Net Dimension 1810*592.8*20mm
    Gross Weight 35KG




    Our available touch panels as below for your options if you need your device built-with touch function.



    IR Touch Screen Capacitive Touch Screen Nano Touch Foil

    Feature: USB Interface, Plug & Play,
    Resolution: 32768*32768

    Response Time: 8MS-15MS

    Input Method: Finger or other Opacity Touch Medium
    Compatible OS: WindowsXP, 7, 8, 10, Linux,Mac, Android
    Work Voltage: DC 5V(+4.75_+5.25V)

    Feature: USB Interface, Plug & Play, Tempered Glass 3mm

    Input Method: Finger , Capacitive Touch Pen
    Transparency: ≥85%±5%

    Compatible OS: WindowsXP, 7, 8, 10, Linux,Mac, Android

    Connection Cable: FPC

    Active Force: ≤10g

    Structure: Glass+Glass

    Feature: USB Interface, Plug & Play,

    1.Available Adhesive to any medium, like Transparent Glass, LCD/LED Display Unit, etc"
    2.Almost Transparent with Nano Touch Foil
    3.High Penetration to Capture finger touch/gesture over the medium.

    4.Large sizes available up to 167inch
    Input Method: Finger

    Compatible OS: WindowsXP, 7, 8, 10, Linux,Mac, Android
    Connection Cable: FPC

    Active Force: ≤10g

    Structure: F+F

    Thickness: ≤100um

    Common Computer configurations selections:

    Level CPU RAM Integrated Video Graphics
    A Intel 1037U 2G DD3 Intel HD Graphics Integrated

    B Option Interated I3 DDR3/4GB Intel HD Graphics 4400
    C Option Interated I5 DDR34GB Intel HD Graphics 4400
    D Option Interated I7 DDR3/4GB Intel HD Graphics 5000
    E Option Discrete I3 DDR3/4GB GT730 2G(other) 2gb Discrete
    F Option Discrete I5 DDR3/8GB GT730 2G(other)
    G Option Discrete I7 DDR3/8GB GT730 2G(other)





    Our service:

    1. We not only offer device, our own R&D teams is including shape design, and also covering software development. Any questions about our machines, we could provide you relievable question-solutions and after service.

    2. During our guarantee, we will take the responsibility for any defects our products.

    3. Some parts is available to be separated offered.

    4. OEM/ODM

    5. Any certificates needed please keep us informed, we will try our best to meet your demands.



    Packing and Shipping:

    1. Outer protecting package could be customized if needed, our regular offer is with Bubble, Carton, Thick Corrugated Board Carton and Wood Case; Air cases

    is also available if it is needed.

    2. Regular delivery date is about 3-7 working days about sample, 10-15 working days for mass order, customized device based on confirming about details.

    3. Available trade terms: EWX, FOB Shenzhen, C&F, CIF, DDP, DDF.

    4. The final packing size and details is sure according to order quantity.
