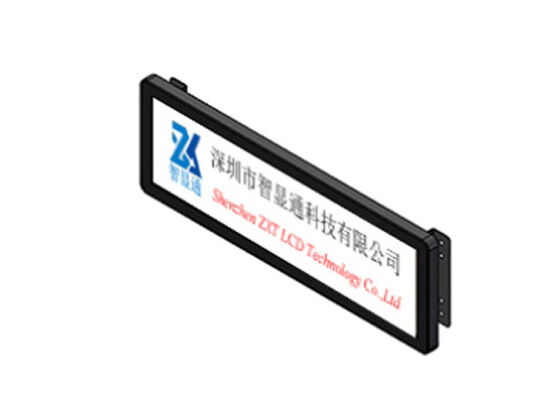

19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide

19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide

  • 19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
  • 19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
  • 19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
  • 19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
Product Details:
Place of Origin: China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC/ERP Energy Label
Model Number: ZXTLCD-BAR190MTQSP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300pcs per month
Contact Now
Detailed Product Description
Screen Size: 19" LCD Panel Active Display Area: 476.64(H) X 80(V)mm
Resolution: 1920(V) X 540(H) Brightness: 500cd/m2
Viewing Angles: 89°/89°/89°/89°(U/D/L/R) Lifespan: 50000 Hours
Interfaces: USB2.0 / HDMI*2 / TF/Audio/DC IN Touch Type: Projected Capacitive Touchscreen
Backlight Type: WLED Operating Voltage: USB 12V/2A
High Light:

PCAP Touch Stretched LCD Monitor

,

500cd/m2 Stretched LCD Monitor

,

500cd/m2 Ultra Wide LCD Display

19" stretched LCD Monitor with PCAP Touch Panel Integrated Bar-Type Ultra Wide Display



Product Features


• Available in a range of Screen Sizes from 16″ to 88″.
• High Brightness Sunlight Readable LED Backlight
• Unique aspect ratio to catch viewers attention
• Available as enclosed monitors or component parts for integration
• Industrial grade LCD solutions for optimum performance and reliability
• PCAP Touch Screen options available
• Digital Signage / Monitors / Touch monitors design options available.





19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide 0



The specification



The specification
Model No Product model ZXTLCD-BAR190MTQSP
LCD Screen Panel Screen size 19" LCD Panel
Active display area 476.64(H) X 80(V)mm
Resolution 1920(V) X 540(H)
Brightness 500cd/m2
Contrast ratio 1200:1
Display color 16.7M
Backlight type WLED
Viewing angles 89°/89°/89°/89°(U/D/L/R)
Response time 9.5ms
Lifespan 50000 hours
Main board CPU MSTAR V56(TSUMV56RUU)
Interfaces USB2.0
HDMI*2
TF/Audio/DC IN
Touchscreen Touch type in-TOUCH (P-Cap in-cell Touch)
machine specification Operating voltage USB 12V/2A
Power consumption ≤25W
Product size 522.64(H)X126(V)X42.66(D)mm
Installation Embedded, wall-mounted
Appearance material Metal shell
Net weight ≤3.8KG
Surface treatment Black metal paint
Environmental Storage Environment Temperature:-20℃~60℃
Humidity:5%~95%
Atmospheric Pressure:86kPa~104kPa
Working Environment Temperature:-10℃~50℃
Humidity:10%~85%
Atmospheric Pressure:86KPa~104KPa
Packing list Bar lcd display 1pcs
Power Cable 1Pcs
Support special requirements customization



The design drawing as follows :


19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide 1

19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide 2



Product physical photo for reference :



19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide 3



The specification of Capacitive touch screen panel



Touch Method Finger or Pen
Touch points 10 Points
Touch strength 10-60g
Finger touch time ≥35,000,000 times
Withstand pressure <10g
Surface hardness ≥7H
storage temperature -15°C~40°C,<90%RH;40°C~70°C,<60%RH
Relative humidity 10%~90%RH at 40°C, non-condensing
Response time <10ms
Transmittance >85%
thickness (1.1mm)+TopITO Film(0.125mm) +Bottom ITO Film(0.125mm)
Durability Touch 50,000,000 times in the same position to work normally



Product Phycial Photo for reference



19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide 4

19" Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide 5
