Place of Origin: | China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC/ERP Energy Label |
Model Number: | ZXTLCD-BAR376AJSY |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiate |
Packaging Details: | Machine body appearance wrapped in pearl carton firstly, packedin wooden box |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 300pcs per month |
Screen Size: | 37.6" LCD Panel | Active Display Area: | 919.29(H) X 258.50(V)mm |
---|---|---|---|
Resolution: | 1920(V) X 360(H) | Brightness: | 500cd/m2 |
CPU: | T972 ,Quad Core A35 | RAM: | 2gb |
ROM: | Android 9.0 | Power Consumption: | ≤60W |
Product Size: | 958(H)X297(V)X49(D)mm | Installation: | Embedded, Wall-mounted |
High Light: | 37.6 Inch Stretched Bar LCD Display,Stretched Bar LCD Display 1920X360,60W Stretched Bar Lcd Monitor |

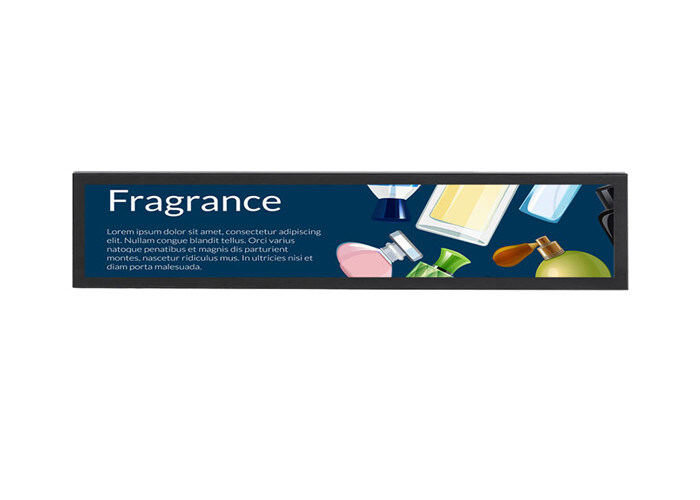

37.6 inch Ultra-wide Stretched (Cut) Displays with 1920X360 resolution
*Please note the fully enclosed monitors above are also available in component form, with the display, interface board and cables for you to build into your own enclosure.
*High brightness upgrade options are also available for multiple sizes so please check.
Applications for Ultra-wide Stretched (Cut) Displays:
1, Transportation; Airports, Bus / Railway Stations, Subways
2, Advertising; shopping centres, retail stores, restaurants & bars
3, Gaming; slot machines, roulette winning numbers & button deck
4, Public information; Government buildings, elevators, offices, Museums
The specification
The specification | ||
Model No | Product model | ZXTLCD-BAR376AJSY |
LCD Screen Panel | Screen size | 37.6" LCD Panel |
Active display area | 919.29(H) X 258.50(V)mm | |
Resolution | 1920(V) X 360(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 2000:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89/89/89/89 (Typ.)(CR≥10) | |
Response time | 9ms | |
Lifespan | 50000 hours | |
Monitor PCB Board | CPU | T972 ,Quad core A35 |
RAM | 2gb | |
ROM | 8gb EMMC | |
System | Android 9.0 | |
Network support | 10M/100M Auto-adjust Gigabit Ethernet , WIFI | |
RTC real time clock | Support timing on / off function | |
Interfaces | 1*USB2.0 | |
1*OTG USB | ||
1*RJ45 | ||
Video formats | wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 | |
Photo formats | BMP,JPEG,PNG,GIF | |
machine specification | Operating voltage | 100-240V(50/60Hz) |
Power consumption | ≤60W | |
Product size | 958(H)X297(V)X49(D)mm | |
Installation | Embedded, wall-mounted | |
Apperance material | Metal shell | |
Net weight | ≤18KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature:-20℃~60℃ |
Humidity:5%~95% | ||
Atmospheric Pressure:86kPa~104kPa | ||
Working Environment | Temperature:-10℃~50℃ | |
Humidity:10%~85% | ||
Atmospheric Pressure:86KPa~104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |
Support special requirements customization |
The design drawing as follows :
Product Physical Photo as follows :
How do ZXT LCD ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 Stock up much screen panel in factory, and non-stop Power-on test for each LCD Panel with 72 hours.
1.4.Dedicated quality assurance team with failure case analysis process
1.5.Continuous staff training and education
How do ZXT LCD keep your price competitive?
Over the last decade, prices of many raw materials (e.g. copper, chemicals) had doubled, tripled or quadrupled; Chinese currency RMB had appreciated 31% over US dollar; And our labor cost also increased significantly.
However, ZXT LCD have kept our pricing steady. This owns entirely to our innovations in reducing cost, avoiding wastes and improving efficiency. Our prices are very competitive in the industry at the same quality level.
We believe in a win-win partnership with our customers. Our partnership will be mutually beneficial if we can provide you an edge on cost and quality.
If you would like to discuss your requirement or need any additional information on our Ultra-wide stretched bar Lcd display, and then please do not hesitate to contact our sales team.
