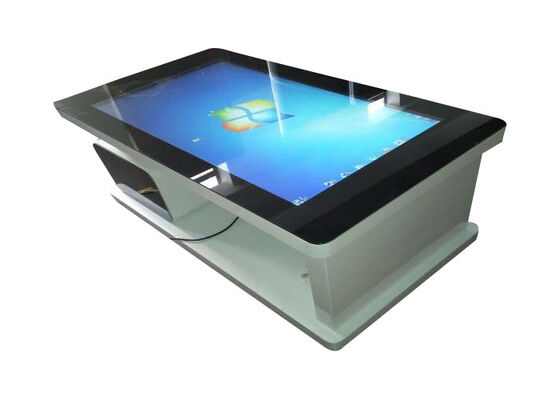

55'' Drawer Style Touch Screen Windows System Waterproof Activity Table With Capacitive touch

55'' Drawer Style Touch Screen Windows System Waterproof Activity Table With Capacitive touch

  • 55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive touch
  • 55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive touch
  • 55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive touch
  • 55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive touch
  • 55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive touch
55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive touch
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC/ERP Energy Label
Model Number: ZXTLCD-TBC550B02
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: wooden case, carton, flight case are option
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Panel Size: 55 Inch Material: 4mm Tempered Glass
Color: Request / Custom, White / Black / Siliver Touch Interfaces: USB
Long Resistance: Yes Available Clicks Time: Unlimited
Touch Ways: Sensitive To Pens, Prostheses, Finger, Brushes And Any Non-transparent Object Panel Lifetime: > 60,000hours
Contrast Ratio: 4000: 1 Display Area: 684mm(H) X 1214mm(V)
Keywords: Touch Screen Table



55'' Drawer Style Touch Screen Windows System Waterproof Activity



Table With Capacitive touch





1. Product Introduction



the waterproof construction of our touch tables making them ideal for use in public spaces, outdoor environments, and more scenes. This means that you can display your interactive content at events, festivals, or in other outdoor settings without worrying about damage from rain or spills. Additionally, the durability of our touch tables means that they will continue to perform at a high level even with frequent usage.



Another key aspect of our touch tables is their versatility when it comes to customization. We offer a wide range of options for color, shape, and size, making it easy to find the perfect match for your business or organization's branding and space requirements.





2. Product parameter


LCD Panel



LCD Panel Screen Size 55 Inch
Display area 684mm(H) X 1214mm(V)
Aspect Ratio 16:09
LCD Type TFT-LCD (WLED Backlight)
Max Resolution 1920 X 1080 / 3840 X 2160
Display color 16.7M
Brightness 350 cd/
Contrast Ratio 4000: 1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
The lifetime of screen panel > 60,000hours



Touch screen parameter



Touch screen parameter Touch style Projected Capacitive Touch screen
Touchpoints 10 points
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 15ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways sensitive to pens, prostheses, fingers, brushes and any non-transparent object
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH



OS Configuration



Built-in Mini PC(Optional) CPU Intel 6th Gen I5-6200U processor,
RAM 8GB
Storage volume 120GB SSD
OS Windows 10 / 11
Built-in wifi 150Mbps 802.11n wifi integate
Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Onboard interface Network port RJ45, 10M/100M Adaptive Ethernet
HDMI 1
USB 2 USB 2.0 PORTS
Power Audio system Built-in 10 W X 2 Speakers
Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 230w
Standby power loss < 1W



Features



Features Operating temperature 0 ~ 50
Storage temperature below20 ~ +60
Enclosure Front panel 4 mm thick protective glass
Frame color white / Black / Silver option
Installation type Floor standing
Application Indoor
Touch Table Dimension of machine Customization





3. More Details

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch

55'' Drawer Style Touch Screen Windows System Waterproof  Activity Table With Capacitive Touch
