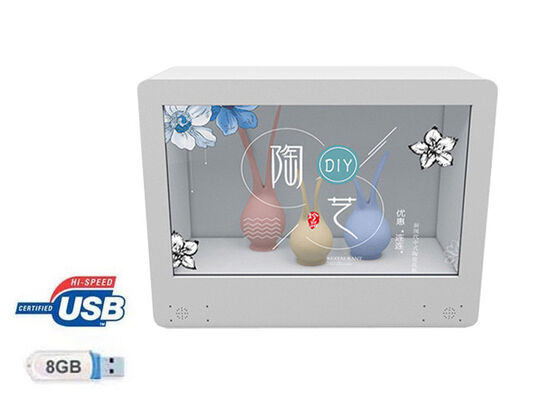

21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel

21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel

  • 21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel
  • 21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel
  • 21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel
21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel
Product Details:
Place of Origin: GuangDong, China
Brand Name: ZXTLCD
Certification: CE, Rohs
Model Number: ZXTLCD-TL215
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $500/pcs ~ $600/pcs
Packaging Details: packed in wooden box or customized flight case
Delivery Time: 10~ 20 days
Payment Terms: T/T, , Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Display Area: 475×267 Mm (H×V) Resolution: 1920(RGB)×1080(FHD)
Dot Pitch: 0.03874×0.11622 Mm (H×V) Screen Size: 21.5”
Aspect Ratio: 16 : 9 Pixel Pitch: 0.11622×0.11622 Mm (H×V)
Contrast: 1000:1 (Typ.) Viewing Angle: 89/89/89/89 (Min.)(CR≥10)
Best Perspective: Full View Angle
High Light:

21.5 Inch Transparent LCD Display

,

20W VGA Transparent LCD Display

,

LVDS See Through Lcd Panel

21.5 inch flush mount Transparent LCD Display see through lcd panel Smart Window Showcase





1, Main Feature :


1) Ultra-thin body design, fashion and elegant in the apperance ;

2) Dynamic play on the transprent screen, physical products show inside, combing static and dynamic display ;

3) Can be divided into different aspects of screen to play, support multiple media format;

4) Support timer switch, remote network control, etc;

5) Novel mode of transmission, and strengthen customer shopping experience, enhance the brand image;

6) Support 1080P full HD Display.

21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel 0



2, The specification of 21.5 inch Transparent LCD Display box :



Model No ZXTLCD-TL215
Brand ZXTLCD
Screen size 21.5”
Panel type A-Si TFT-LCD
Panel No HNT21501
Max resolution 1920(RGB)×1080(FHD)
Dot pitch 0.03874×0.11622 mm (H×V)
Pixel layout RGB vertical bar
Pixel pitch 0.11622×0.11622 mm (H×V)
Display area 475×267 mm (H×V)
Appearance shape Flat rectangle
Aspect ratio 16 : 9
Panel transparency Above 75%
Contrast 1000:1 (Typ.)
Viewing angle 89/89/89/89 (Min.)(CR≥10)
Optical mode IPS, normally black display, transmissive
Best perspective Full view angle
Response time 14 (Typ.)(G to G)(B to W) (ms)
Display color 16.7M (8-bit)
Panel Operating Voltage 12V, 5A
working frequency 60Hz
Panel signal system LVDS
Control signal system HDMI/VGA/USB/Audio inputs
Operating temperature -20°~80°
Storage temperature -30°~90°
Working Humidity 10%~90%
Storage Humidity 5%~90%
Power Supply AC100-240V(50-60Hz)
Working Power Consumption <20W
Standby Power Consumption <3W
Protype Desktop / Floor standing / Interactive(Optional)
Product size Customized



21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel 1

3, The specification of internal USB plug and play PCB Board



Operating system Plug-and-Play / No windows OS, Auto loop play when power on
Input card slot 1 x USB2.0, HDMI
Storage Media Default USB(SD card is optional)
Download Media Auto copy from USB
OSD language Chinese/English
Support Video Formats MP4
Support Audio Formats MP3
Support Photo Formats JPG
Support Doc formats TXT
Audio Output Built-in Power amplifer
Playback Mode Repeat one/all, choose to repeat playback one file or all the files



21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel 2



4,The Function Description :

1), the inside product can be seen through the screen while the pictures or videos are showed ;

2), Support Function : 1080P HD Display, Rolling Text, Daily Timer, Automatically Turn on/off at set time .

3), It will enhance customers' experience on product brand with the combination of digital information and actual product display.

4), No need to worry about software or special video production : Our transparent LCD Display can automatically turn all pictures and videos into transparency .

5), Not only a display but also a monitor. Our transparent LCD Display includes HDMI input. In addition to playing multimedia files, it can also be used as a monitor when connected to devices such as PC or media Player .



21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel 3



Application :



red wine Attract customer's attention and raise excitement
Resting Rooms Disseminate latest information in an unexpected way
Multifunctional decoration On wall, on table, embedded in fixture....and so on



21.5 Inch Transparent LCD Display Flush Mount See Through Lcd Panel 4



If you would like to discuss your requirement or need any additional information on our 21.5 inch Transparent LCD Display box, then please do not hesitate to contact our sales team. Please send us a inquiry or contact us via whats App directly.
