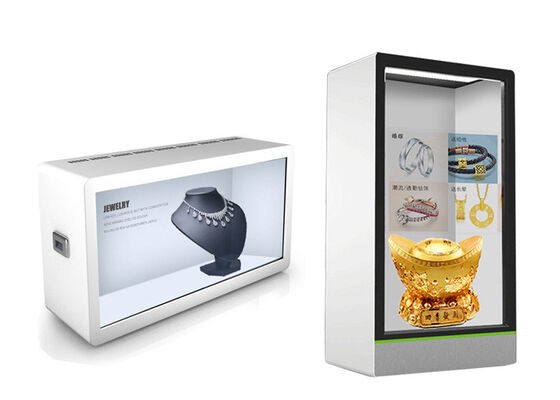

43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase

43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase

  • 43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
  • 43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
  • 43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
  • 43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
  • 43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
  • 43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase
Product Details:
Place of Origin: GuangDong, China
Brand Name: ZXTLCD
Certification: CE, Rohs
Model Number: ZXTLCD-TL430
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $1,100/pcs ~ $1,200/pcs
Packaging Details: packed in wooden box or customized flight case
Delivery Time: 10~ 20 days
Payment Terms: T/T, , Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Brand: ZXTLCD Resolution: 1920(RGB)×1080(FHD)
Screen Size: 43 Inch Panel No: HNT4301
Control Signal System: HDMI/VGA/USB/Audio Inputs Power Supply: AC100-240V(50-60Hz)
Working Power Consumption: <20W Standby Power Consumption: <3W
Protype: Desktop / Floor Standing / Interactive(Optional) Product Size: Refer To Design Drawing
High Light:

LVDS Transparent Lcd Panel

,

TFT IPS Transparent Lcd Panel

,

20W Advertising Monitor Showcase

43 inch transparent lcd screen panel Digital Display Signage advertising monitor showcase





1, Main Feature :


1), Support USB Drive Connection, HDMI output.

2), Great video decoding capability : Max supported 1920 X 1080 Full HD resolution.

3), Compatible File formats : Avi/Mov/MP4/MPG/TS/VOB/WMV/MKV/RM/RMVB/FL and so.

4), Includes HDMI output : Not just a display but also a high quality.

5), SYNC : Reading audio files when pictures playing, so as to pictures have background music effects, meanwhile, Pictures switch 11 different transition effects, choice of 6 different playing time.

6), Slideshow effect of photos : A variety of delicate beautification image slide effect.

7), Rotating the screen by 180 degress.

8), Timer switch function :

Support the sixth the time sharing volume and sixth timing has "weeks timing(day different time requirements) and day timing(daily airtime)...etc, humanized options.

9) Variety of delicate beautification image slide effect high quality music play : Built-in multi-function equalizer setting, a variety of music playback modes.



43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase 0



2, The specification of 43 inch Transparent LCD Display box :



Model No ZXTLCD-TL430
Brand ZXTLCD
Screen size 43”
Panel type A-Si TFT-IPS transparent panel
Panel No HNT4301
Max resolution 1920(RGB)×1080(FHD)
Dot pitch 0.1634×0.4902 mm (H×V)
Pixel layout RGB vertical bar
Pixel pitch 0.4902×0.4902 mm (H×V)
Display area 941.184×529.416 mm (H×V)
Appearance shape Flat rectangle
Aspect ratio 16 : 9
Panel transparency Above 75%
Contrast 1200:1 (Typ.)
Viewing angle 89/89/89/89 (Min.)(CR≥10)
Optical mode IPS, normally black display, transmissive
Best perspective Full view angle
Response time 8 (Typ.)(G to G)(B to W) (ms)
Display color 16.7M (8-bit)
Panel Operating Voltage 12V, 5A
working frequency 60Hz
Panel signal system LVDS
Control signal system HDMI/VGA/USB/Audio inputs
Operating temperature -20°~50°
Storage temperature -30°~60°
Working Humidity 10%~90%
Storage Humidity 5%~90%
Power Supply AC100-240V(50-60Hz)
Working Power Consumption <20W
Standby Power Consumption <3W
Protype Desktop / Floor standing / Interactive(Optional)
Product size Refer to design drawing



43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase 1



3, The specification of internal USB plug and play PCB Board



Operating system Plug-and-Play / No windows OS, Auto loop play when power on
Input card slot 1 x USB2.0, HDMI
Storage Media Default USB(SD card is optional)
Download Media Auto copy from USB
OSD language Chinese/English
Support Video Formats MP4
Support Audio Formats MP3
Support Photo Formats JPG
Support Doc formats TXT
Audio Output Built-in Power amplifer
Playback Mode Repeat one/all, choose to repeat playback one file or all the files



43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase 2



4,The Function Description :

1), the inside product can be seen through the screen while the pictures or videos are showed ;

2), Support Function : 1080P HD Display, Rolling Text, Daily Timer, Automatically Turn on/off at set time .

3), It will enhance customers' experience on product brand with the combination of digital information and actual product display.

4), No need to worry about software or special video production : Our transparent LCD Display can automatically turn all pictures and videos into transparency .

5), Not only a display but also a monitor. Our transparent LCD Display includes HDMI input. In addition to playing multimedia files, it can also be used as a monitor when connected to devices such as PC or media Player .



43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase 3



Application :



Watch Attract customer's attention and raise excitement
Resting Rooms Disseminate latest information in an unexpected way
Multifunctional decoration On wall, on table, embedded in fixture....and so on



43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase 4



43 inch Transparent LCD Display box also can do flush mount as follows:



43 Inch TFT IPS Transparent Lcd Panel Advertising Monitor Showcase 5



If you would like to discuss your requirement or need any additional information on our 43 inch Transparent LCD Display box, then please do not hesitate to contact our sales team. Please send us a inquiry or contact us via whats App directly.
