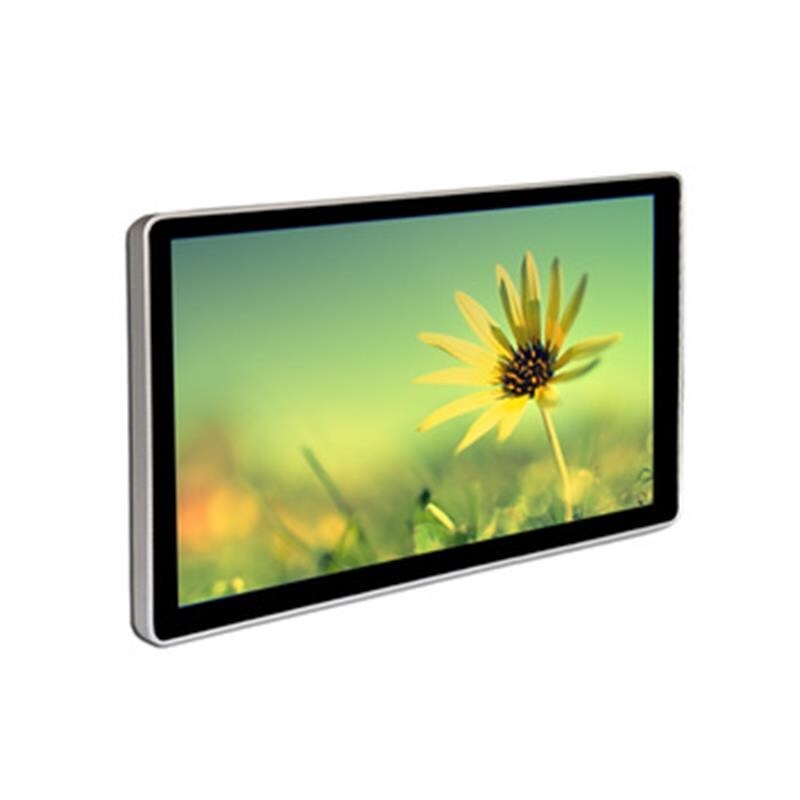

Industrial All In One PC Touch Screen 32 Inch High Definition Image Display

Industrial All In One PC Touch Screen 32 Inch High Definition Image Display

  • Industrial All In One PC Touch Screen 32 Inch High Definition Image Display
  • Industrial All In One PC Touch Screen 32 Inch High Definition Image Display
Industrial All In One PC Touch Screen 32 Inch High Definition Image Display
Product Details:
Place of Origin: China
Brand Name: ZXTLCD
Certification: CE,FCC,ROHS
Model Number: ZXT-WTP320A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiate
Packaging Details: wooden case, carton, flight case are option
Delivery Time: 5-7 workdays
Payment Terms: T/T,Western Union, Alibaba trade assurance
Supply Ability: 5,000 pcs per month
Contact Now
Detailed Product Description
Size: 32 Inch Product Name: Touch Screen All In One PC Computer
Build-in Computer: Yes Touch Screen: Capacitive/nano
Panel Brand: LG/Samsung/Chimei/AUO Warranty: 1 Year
Brightness: 360nits
High Light:

all in 1 pc touch screen

,

all in one pc mit touchscreen

32 inch Industrial Touch Screen All in One PC LCD Touchscreen Monitor with Built in Computer



Product introduction :



This kind machine usually built-in PC, you can consider it as a large computer with touchscreen function. Besides, you can install your own software to get what you need. Actually, you can see this kind product around you here and there. Some one special application software installed on this kind machine, you can touch the screen to query some information from web page or perform an operation via software. As you seen, interactive Application represent a major trend in the futures market.


We will default I3 processor as standard configuration of internal PC for touchscreen PC if you have no special configuration requirements in your inquiry, besides, For this kind interactive display equipment, high quality touchscreen panel is key to the machine.



Specification







Model ZXT-WTP320A
Screen Size 32 inches
Screen brand LG or Samsung
Pixel Pitch 0.63(H)x0.63(V)
Resolution 1920x1080
Brightness 360 cd / m2
Aspect Ratio 16:9
Contrast Ratio 2000:1
Viewing Angle 178°
Colors 1.07 Billion
Input Power Voltage AC 110-240V (50Hz-60Hz)
Working Temperature 0°C - 50°C
Speakers 2×5W(9Ω)
Program Input Port USB 2.0 x 2
Built-in Flash Memory 4GB
Signal Input Port VGA,HDMI,Audio (3.5mm)
Power Consumption 270W
Supported Media Format

Video: All Formats (1080P Full HD)

Picture: JPG,GIF,BMP,PNG

Audio: All Formats



Timer On/Off Support (Set by daily or weekly)
Scrolling Test Support
Split Screen Support
AD Playlist Editor Support (software free of charge, sync with LCD
digital signage via USB flash drive to achieve different functions)
Internet Control
(work with software)
LAN, WIFI,3G (Optional)
Software Optional (digital signage software to control LCD display via internet to
achieve different functions)
Accessories IR Remote Controller, CD ,Key



i3 Solution



CPU Intel i3 2100 (3.1Ghz, Dual Core)
Chipset Intel H61 Chipset
RAM 4GB DDR III 1333 RAM (Up to 16GB)
Graphics Integrated with CPU
Audio HD 8-channel (7.1) audio subsystem
Network Interface Card 10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 2.5 inch 250GB or 320GB SATA HDD or SSD
Speak 2 build-in high quality stereo speakers (3w or 5w)
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows XP/VISTA/7 or Linux
TV Tuner Optional



i5 Solution



CPU Intel i5 2300 Processor (2.8Ghz, Quad Core)
Chipset Intel H61 Chipset
RAM 4GB DDR III 1333 RAM (Up to 16GB)
Graphics Integrated with CPU
Audio HD 8-channel (7.1) audio subsystem
Network Interface Card 10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 2.5 inch 320GB SATA HDD or SSD
Speak 2 build-in high quality stereo speakers (3w or 5w)
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows XP/VISTA/7 or Linux
TV Tuner Optional



i7 Solution



CPU Intel i7 2600 (3.40Ghz, Quad Core)
Chipset Intel H61 Chipset
RAM 4GB DDR III 1333 RAM (Up to 16GB)
Graphics Integrated with CPU
Audio HD 8-channel (7.1) audio subsystem
Network Interface Card 10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 2.5 inch 250GB or 320GB SATA HDD or SSD
Speak 2 build-in high quality stereo speakers (3w or 5w)
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows XP/VISTA/7 or Linux
TV Tuner Optional



Touch Screen Specifications:

Capacitive Touch Screen Feature USB Interface, Plug & Play, Free Driver
Tempered Glass 3mm
Input Method Finger , Capacitive Touch Pen
Transparency ≥85%±5%
Compatible OS WindowsXp,7,8,10,Linux,Mac,Android
Connection Cable FPC
Active Force ≤10g
Structure Glass+Glass
Nano Touch Foil Feature USB Interface, Plug & Play, Free Driver
1.Available Adhesive to any medium, like Transparent Glass, LCD/LED Display Unit, etc
2.Almost Transparent with Nano Touch Foil
3.High Penetration to Capture finger touch/gesture over the medium.
4.Large sizes available up to 167inch
Input Method Finger
Compatible OS WindowsXp,7,8,10,Linux,Mac,Android
Connection Cable FPC
Active Force ≤10g
Structure F+F
Thickness ≤100um
