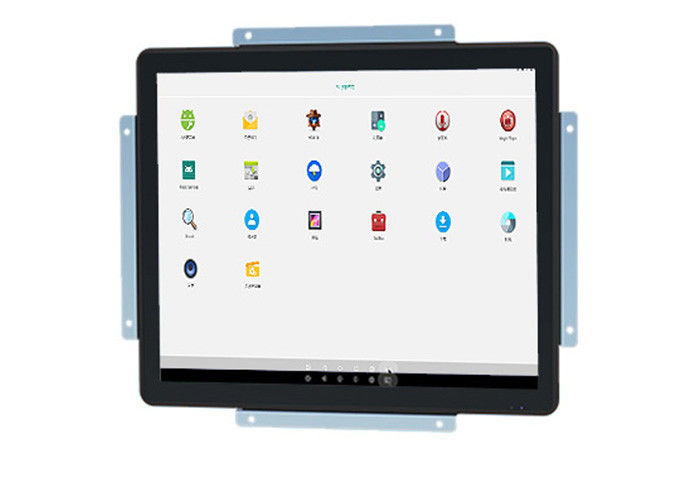

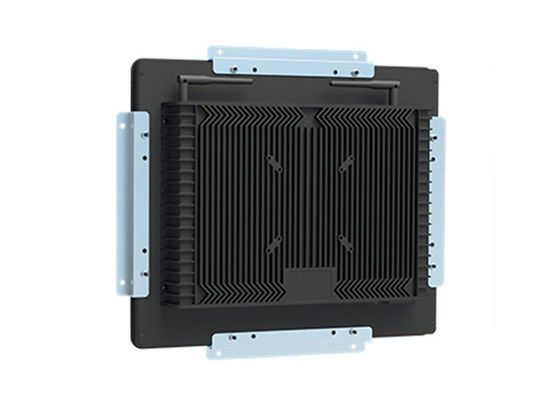

17-Inch Android All-in-One for Factory Automation and Security Systems

17-Inch Android All-in-One for Factory Automation and Security Systems

  • 17-Inch Android All-in-One for Factory Automation and Security Systems
  • 17-Inch Android All-in-One for Factory Automation and Security Systems
17-Inch Android All-in-One for Factory Automation and Security Systems
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E170BAWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 17 Inch Aspect Ratio: 16:9
Brightness: 250 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

17-Inch Android All-in-One for Factory Automation and Security Systems

The 17-inch Android all-in-one system is an ideal solution for factory automation and industrial control environments. With a 1280 x 1024 resolution, the display offers crisp visuals and vibrant colors, making it well-suited for monitoring real-time data in production lines. This system can seamlessly integrate with factory equipment, allowing operators to oversee machine performance, monitor energy consumption, and track production metrics in a user-friendly interface. The device’s Android operating system supports robust connectivity options, including Ethernet and Wi-Fi, enabling smooth communication between devices and cloud-based management systems. Its compact design allows for easy installation in control rooms, workstations, or factory floors, ensuring space-efficient operations without compromising on functionality.

LCD Panel Parameters Screen Size 17 Inch
Display Area 337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7M , 72% NTSC
Brightness 250cd/
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 20ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 13.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60
Package Size Device Dimensions 380 X 318 X 55.7mm.
Net Weight 5.5 Kilogram
Package Size 45 X 38.5 X 15Centimeter
Gross Package Weight per Unit 6 Kilogram



In addition to factory automation, the 17-inch Android system is also a powerful tool for security applications. When integrated into security monitoring systems, this device provides a reliable interface for displaying surveillance footage and live camera feeds. Its high contrast ratio and wide viewing angles ensure that images are clearly visible from multiple directions, even in brightly lit environments. Security personnel can monitor live feeds from multiple cameras and receive real-time alerts, all from a single, centralized display. The system’s ability to connect to various IoT devices and smart sensors makes it versatile for use in monitoring various security metrics, including access control, motion detection, and environmental sensors, enhancing the efficiency of security operations in commercial and industrial spaces.

17-Inch Android All-in-One for Factory Automation and Security Systems 0

17-Inch Android All-in-One for Factory Automation and Security Systems 117-Inch Android All-in-One for Factory Automation and Security Systems 217-Inch Android All-in-One for Factory Automation and Security Systems 317-Inch Android All-in-One for Factory Automation and Security Systems 4

The 17-inch Android all-in-one system also excels in interactive digital signage and self-service kiosk applications. With its touchscreen interface and high-definition resolution, it allows users to engage with dynamic content, whether for wayfinding, product displays, or information dissemination in public venues such as airports, malls, or corporate offices. The Android OS enables remote management, making it easy to update content and ensure that information remains current. The system’s Bluetooth connectivity also facilitates wireless communication with other devices, such as barcode scanners and payment systems, further enhancing the interactivity of kiosks. This system’s versatility ensures that it serves as a powerful tool for digital signage, interactive advertisements, and customer service, providing businesses with an efficient and effective way to engage and inform their audience.
