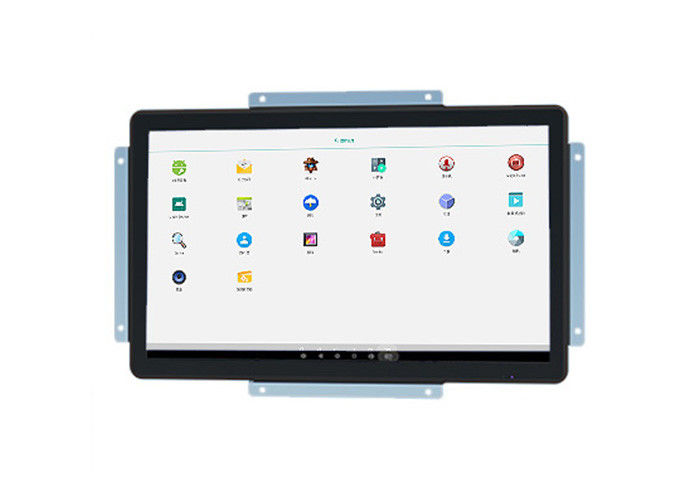

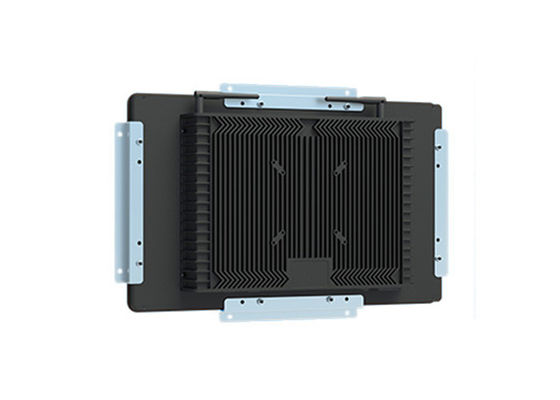

18.5-Inch Android Screen for Medical Devices and Public Information Panels

18.5-Inch Android Screen for Medical Devices and Public Information Panels

  • 18.5-Inch Android Screen for Medical Devices and Public Information Panels
  • 18.5-Inch Android Screen for Medical Devices and Public Information Panels
18.5-Inch Android Screen for Medical Devices and Public Information Panels
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E185BAWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 18.5 Inch Aspect Ratio: 16:9
Brightness: 250 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

18.5-Inch Android Screen for Medical Devices and Public Information Panels

The 18.5-inch Android display is an advanced solution for medical devices, offering both clarity and ease of use in critical healthcare environments. With its full HD resolution (1920x1080), this device ensures that medical professionals can easily read and interpret data, such as patient vitals, diagnostic images, and medical charts. The wide viewing angles and high contrast ratio provide clear visibility from various positions, which is especially important in busy hospital rooms or operating theaters. The touchscreen functionality enables quick, responsive interaction with medical software, allowing healthcare providers to adjust settings, input data, and navigate patient records with ease. This system’s ability to integrate seamlessly with medical monitoring equipment and support wireless connectivity ensures that it can be used for real-time patient tracking and health analytics.

LCD Panel Parameters Screen Size 18.5 Inch
Display Area 409.8 mm.(Height) X 230.4(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m , 72% NTSC
Brightness 250cd/
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60
Package Size Device Dimensions 450.4 X 274.4 X 55.7 mm
Net Weight 6.5 Kilogram
Package Size 53 X 35 X 15 Centimeter
Gross Package Weight per Unit 7 Kilogram



In the realm of public information panels, the 18.5-inch Android display serves as an effective tool for real-time communication and interactive information sharing in public spaces such as airports, train stations, and malls. The screen’s high brightness and full HD resolution make it ideal for high-traffic areas where visibility and clarity are critical. Whether used for wayfinding, emergency notifications, or event schedules, this display offers an intuitive interface that can be customized for various applications. The Android OS provides the flexibility to run various public-facing applications, allowing organizations to update content remotely, schedule messages, and display dynamic information. Furthermore, its Wi-Fi and Ethernet capabilities ensure stable connections for easy content management, making it an excellent choice for dynamic, responsive public information displays.

18.5-Inch Android Screen for Medical Devices and Public Information Panels 0

18.5-Inch Android Screen for Medical Devices and Public Information Panels 118.5-Inch Android Screen for Medical Devices and Public Information Panels 218.5-Inch Android Screen for Medical Devices and Public Information Panels 318.5-Inch Android Screen for Medical Devices and Public Information Panels 4

In addition to its use in medical and public information applications, the 18.5-inch Android screen can enhance retail environments by acting as a self-service kiosk or interactive digital signage. In retail stores, it enables customers to browse products, check stock availability, and even complete purchases, all through a simple, intuitive touch interface. With its ability to handle multimedia content, such as videos, promotions, and interactive menus, the display offers a highly engaging customer experience. Additionally, the high durability and long lifespan make it perfect for continuous operation in busy retail environments. Retailers can update product catalogs, showcase advertisements, and interact with customers dynamically, making the 18.5-inch Android display an ideal tool for both in-store marketing and customer engagement.
