Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E104WACTS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 12.1 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

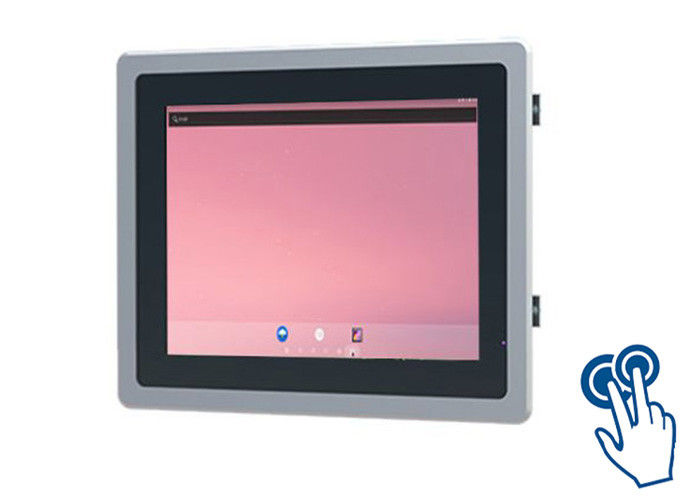

The 10.4-inch Android touch display offers an excellent solution for integrating into Human-Machine Interface (HMI) systems, smart automation, and other industrial applications. With its 800 x 600 resolution and high brightness of 400cd/m², the screen ensures clear visibility in various working conditions. It’s designed to optimize real-time data monitoring and control systems, providing operators with an intuitive and responsive interface. Equipped with a capacitive touchscreen that supports up to 10 touch points, this device excels in factory automation, process monitoring, and machine control, where swift and precise interaction is crucial. The system’s Android 10.0 platform makes it versatile for use in a variety of industrial environments, supporting a range of automation software and systems that are essential for optimizing productivity and efficiency.
| LCD Panel Parameters | Screen Size | 10.4 Inch | |
| Display Area | 211.2 mm.(Height) X 158.4(Width)mm. | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 800 X 600 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/m² | ||
| Contrast Ratio | 700 : 1 | ||
| Viewing Angle (Up/Down/Left/Right) | 80°/80°/70°/70° (Type)(CR≥10) | ||
| Response Time | 30Miss | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | ||
| Field Frequency | 60Hertz | ||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | |
| Touch Points | 10 Points | ||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | ||
| Glass 3 mm. Optical mount to reduce parallax | |||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | ||
| Response Speed | < 6Miss | ||
| Touch Accuracy | More than 90% of the touch area ±2 mm | ||
| Touch Method | Inch Stylus | ||
| Output Format | Coordinate Output | ||
| Click Time | Unlimited | ||
| Smallest Touch Size | 5 mm | ||
| Long-lasting Durability | Yes, Available | ||
| Touch Interface | USB | ||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | ||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | ||
| Audio parameters | Audio system | Stereo | |
| Speaker size | ≈ 99 x 45 x 20 mm | ||
| Impedance | 8 Ohm | ||
| Power | 2 x 5 Watt | ||
| Loudness | > 80 Decibel | ||
| Interface | 4-pin connector | ||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | |
| GPU | Mali-T764 | ||
| RAM | 2GB | ||
| ROM | 32GB | ||
| Android System | Android 10.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | ||
| Bluetooth | 4.2 | ||
| Interface | USB2.0 x 2 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | |
| Maximum Power Loss | ≤ 15 Watt | ||
| Standby Mode Power Loss | < 1 Watt | ||
| Features | Operating Temperature | 0℃ ~ 50℃ | |
| Storage Temperature | Below 10℃ ~ +60℃ | ||
| Package Size | Device Dimensions | 281.1 X 231.1 X 50 mm. | |
| Net Weight | 2 Kilogram | ||
| Package Size | 33.5 X 18.5 X 15 Centimeter | ||
| Gross Package Weight per Unit | 2.5 Kilogram | ||
The 10.4-inch touchscreen also proves valuable in applications beyond automation. In medical settings, this display can be integrated into diagnostic equipment and patient monitoring systems. The screen’s high-resolution color display provides medical professionals with clear, readable data, such as patient vital signs, medical imaging, or treatment progress. The capacitive touch functionality also enables users to interact with the interface smoothly, crucial for settings that demand fast, accurate input, such as in intensive care units or during emergency responses. Moreover, the durable design, featuring reinforced glass and long-lasting components, ensures that it can withstand the rigorous conditions of healthcare environments.
This versatile touchscreen display is also ideal for interactive kiosks, retail point-of-sale systems, and digital signage. Its compact form factor and responsive touch capabilities make it perfect for self-service kiosks, where users can interact with the interface to browse products, place orders, or complete transactions. In retail, this system can help create seamless customer experiences by providing interactive menus or assisting with inventory management. Additionally, businesses can deploy this display as a dynamic signage solution in locations like malls, airports, or showrooms, where it can display information or advertising content. With its ability to function across a range of temperatures and its low power consumption, it is well-suited for both indoor and outdoor settings.
