Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E121WACTB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 12.1 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

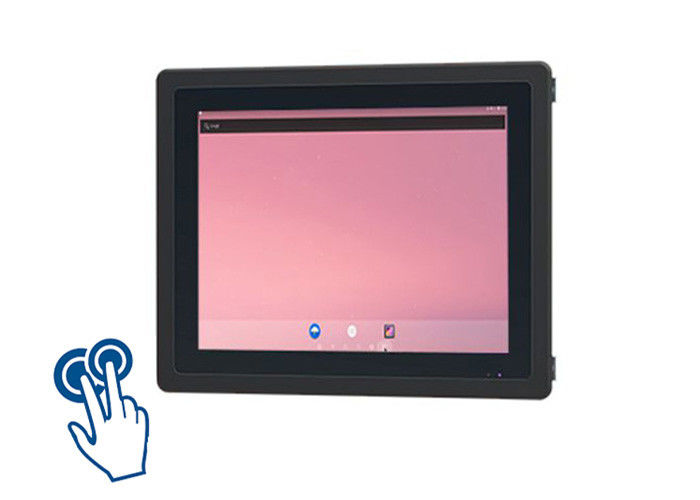

The 12.1-inch Android touch display is a cutting-edge solution that seamlessly integrates into medical interfaces and control systems. With a high resolution of 1280 x 800, it ensures crystal-clear visuals that are essential for applications requiring precise data and real-time monitoring. Its robust capacitive touchscreen supports up to 10 touch points, offering responsive and accurate interaction for healthcare professionals, medical staff, or industrial operators. Ideal for use in patient monitoring systems, diagnostic equipment, or even surgical assistants, this display supports rapid data entry and visualization with its lightning-fast response time of just 25ms. The device's high brightness (400 cd/㎡) and wide viewing angles make it suitable for use in hospitals, clinics, or other environments where accessibility and clarity are critical.
| LCD Panel Parameters | Screen Size | 12.1 Inch | ||
| Display Area | 245.76 mm.(Height) X 184.32(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 800 X 600 | 1280 X 800 | ||
| Display Color | 16.7M | 16.7M | ||
| Brightness | 350 cd/㎡ | 400 cd/㎡ | ||
| Contrast Ratio | 1000 :1 | 1200 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 85°/85°/85°/85° (Type)(CR≥10) | ||
| Response Time | 30ms | 25ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 13.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | OTG USB2.0 x 1 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 15 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 314.1 X 253.1 X 50mm. | ||
| Net Weight | 3 Kilogram | |||
| Package Size | 36.8 X 16.3 X 15Centimeter | |||
| Gross Package Weight per Unit | 4 Kilogram | |||
Beyond healthcare, the 12.1-inch touch display proves invaluable in industrial control systems where efficiency and reliability are paramount. The advanced capabilities of this screen make it perfect for integration into factory automation, production lines, and smart grids. With features like Wi-Fi 6 support and Bluetooth 5, the display can connect to various devices, enabling a seamless exchange of information and enhancing the overall control and monitoring process. Its IP-rated durability, along with resistance to extreme temperatures (operating between 0°C to +50°C), ensures the unit can function effectively in challenging environments. Whether used in heavy machinery controls, traffic management systems, or security surveillance interfaces, the device's sleek design and user-friendly interface are critical assets for operators managing complex systems.
Additionally, this 12.1-inch display can be an excellent choice for commercial and educational use. In retail, it can serve as a dynamic point-of-sale terminal or as part of an interactive customer service kiosk, helping businesses enhance the shopping experience with touch-based interactions and real-time product information. In educational settings, the screen can be used for interactive digital whiteboards, where students and instructors can collaborate on various subjects, providing an immersive learning experience. Furthermore, the device's compact size and ease of integration make it an ideal fit for embedded applications such as interactive signage in museums, exhibitions, or public information systems. Whether it's used to display real-time information, educational content, or advertisements, this versatile touch screen excels across a wide range of industries, providing a reliable, high-performance solution.
