Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E104WAB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 10.4 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

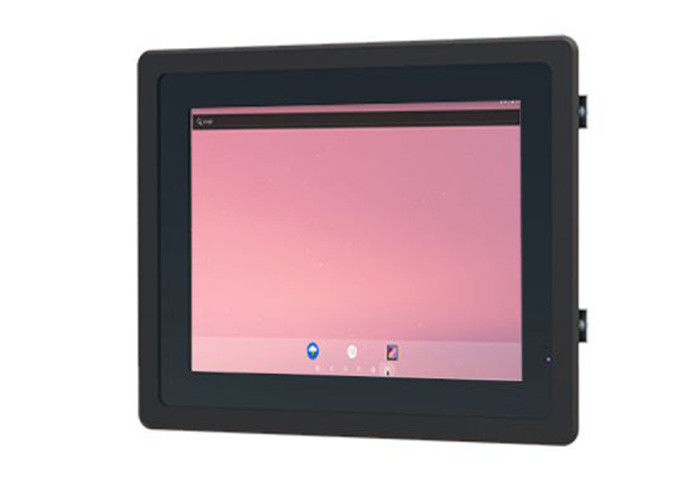

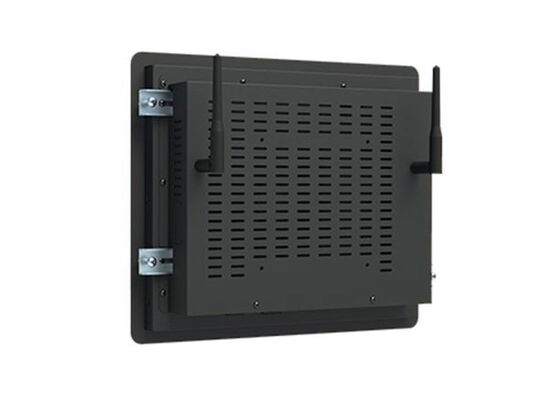

The 10.4-inch Android display offers a robust solution for Human-Machine Interface (HMI) systems and industrial automation. With its compact size and high brightness of 400cd/m², it is ideal for environments with challenging lighting conditions such as factories, control rooms, and production lines. The screen’s high contrast ratio and wide viewing angles allow operators to interact with the display even in dynamic, fast-paced industrial settings. Whether used for machine control, data visualization, or real-time process monitoring, this display provides clear, readable visuals. Its Android 10.0 OS allows for smooth integration with a variety of industrial applications and software, making it a versatile tool for industrial-grade tasks.
| LCD Panel Parameters | Screen Size | 10.4 Inch | |
| Display Area | 211.2 mm.(Height) X 158.4(Width)mm. | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 800 X 600 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/m² | ||
| Contrast Ratio | 700 : 1 | ||
| Viewing Angle (Up/Down/Left/Right) | 80°/80°/70°/70° (Type)(CR≥10) | ||
| Response Time | 30ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | ||
| Field Frequency | 60Hertz | ||
| Audio parameters | Audio system | Stereo | |
| Speaker size | ≈ 99 x 45 x 20 mm | ||
| Impedance | 8 Ohm | ||
| Power | 2 x 5 Watt | ||
| Loudness | > 80 Decibel | ||
| Interface | 4-pin connector | ||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | |
| GPU | Mali-T764 | ||
| RAM | 2GB | ||
| ROM | 32GB | ||
| Android System | Android 10.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | ||
| Bluetooth | 4.2 | ||
| Interface | USB2.0 x 2 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | |
| Maximum Power Loss | ≤ 15 Watt | ||
| Standby Mode Power Loss | < 1 Watt | ||
| Features | Operating Temperature | 0℃ ~ 50℃ | |
| Storage Temperature | Below 10℃ ~ +60℃ | ||
| Package Size | Device Dimensions | 281.1 X 231.1 X 50 mm. | |
| Net Weight | 2 Kilogram | ||
| Package Size | 33.5 X 18.5 X 15 Centimeter | ||
| Gross Package Weight per Unit | 2.5 Kilogram | ||
In the realm of automation and industrial interfaces, the 10.4-inch display excels as a touch-enabled interface for controlling machinery and monitoring production systems. Its 2GB RAM and 32GB ROM ensure seamless performance, even when handling complex control systems or operating multiple industrial applications at once. This display is particularly effective in smart factory environments where real-time data feedback is crucial. It can be used to control automated workflows, track inventory, manage robotic systems, and interact with SCADA (Supervisory Control and Data Acquisition) systems. Additionally, its Ethernet connectivity allows for easy integration into existing network systems, enabling remote monitoring and troubleshooting of industrial operations.
The 10.4-inch Android display also proves valuable in point-of-sale (POS) systems, security monitoring, and access control systems. Its touch interface allows users to easily interact with security software, input commands, and view surveillance footage. In logistics and warehousing, it can act as an intelligent display for inventory management, offering real-time updates on stock levels, location, and status. Additionally, its wireless connectivity and Bluetooth capabilities allow for quick and easy communication with nearby devices, such as barcode scanners or RFID readers. This makes it an effective tool for streamlining operations across industries that rely on real-time data for making critical decisions. With its adaptability and compact form factor, this display serves as an essential tool for a range of industrial and commercial applications.
