Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E104WAS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 10.4 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

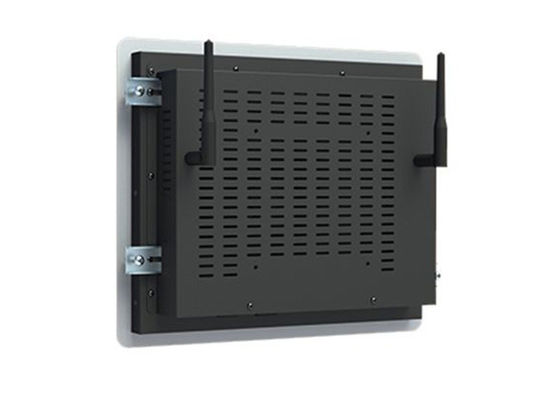

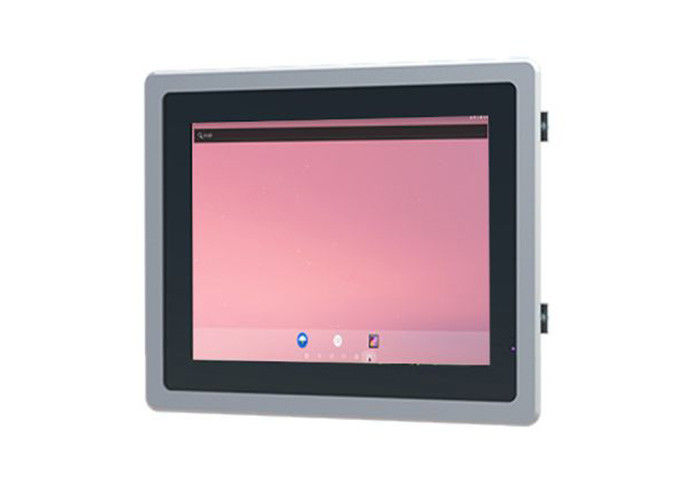

The 10.4-inch Android display is a powerful solution for Human-Machine Interface (HMI) systems used across various industrial applications. With its high brightness of 400cd/m² and contrast ratio of 700:1, it is ideal for operation in environments where ambient light may interfere with screen visibility, such as in factories or control rooms. This display supports real-time monitoring and control, giving operators the ability to interact with machines, adjust settings, and observe performance metrics from a central point. The screen's compact size and 800x600 resolution make it perfect for integration into small equipment, automation systems, and remote monitoring solutions where space and power efficiency are important.
| LCD Panel Parameters | Screen Size | 10.4 Inch | |
| Display Area | 211.2 mm.(Height) X 158.4(Width)mm. | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 800 X 600 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/m² | ||
| Contrast Ratio | 700 : 1 | ||
| Viewing Angle (Up/Down/Left/Right) | 80°/80°/70°/70° (Type)(CR≥10) | ||
| Response Time | 30ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | ||
| Field Frequency | 60Hertz | ||
| Audio parameters | Audio system | Stereo | |
| Speaker size | ≈ 99 x 45 x 20 mm | ||
| Impedance | 8 Ohm | ||
| Power | 2 x 5 Watt | ||
| Loudness | > 80 Decibel | ||
| Interface | 4-pin connector | ||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | |
| GPU | Mali-T764 | ||
| RAM | 2GB | ||
| ROM | 32GB | ||
| Android System | Android 10.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | ||
| Bluetooth | 4.2 | ||
| Interface | USB2.0 x 2 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | |
| Maximum Power Loss | ≤ 15 Watt | ||
| Standby Mode Power Loss | < 1 Watt | ||
| Features | Operating Temperature | 0℃ ~ 50℃ | |
| Storage Temperature | Below 10℃ ~ +60℃ | ||
| Package Size | Device Dimensions | 281.1 X 231.1 X 50 mm. | |
| Net Weight | 2 Kilogram | ||
| Package Size | 33.5 X 18.5 X 15 Centimeter | ||
| Gross Package Weight per Unit | 2.5 Kilogram | ||
In industrial automation and process control, the 10.4-inch display serves as an efficient tool for managing complex systems. Equipped with a Quad-Core RK3288 CPU, 2GB RAM, and 32GB ROM, it handles demanding software applications used in SCADA systems or robotic control panels. Whether it's monitoring the performance of conveyor belts, adjusting temperature controls, or overseeing assembly line operations, this device provides operators with immediate access to data and system feedback. Its Ethernet connectivity allows seamless communication with networked systems, enabling remote access for monitoring and diagnostics. Additionally, its wireless internet capability makes it perfect for cloud-based solutions that require constant data updates.
Moreover, the 10.4-inch Android display enhances operations in sectors like logistics, warehouse management, and security systems. In logistics, it can function as a smart interface to track inventory, process shipments, and manage warehouse logistics in real-time. The Bluetooth functionality allows the display to easily integrate with barcode scanners or RFID systems, making it ideal for automated inventory control. In security applications, it can display surveillance camera feeds, control access systems, or operate alarm systems in smart buildings or retail environments. Compact and highly functional, this display brings versatility to a wide range of industries, improving operational efficiency and decision-making.
