Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E121WAB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 12.1 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

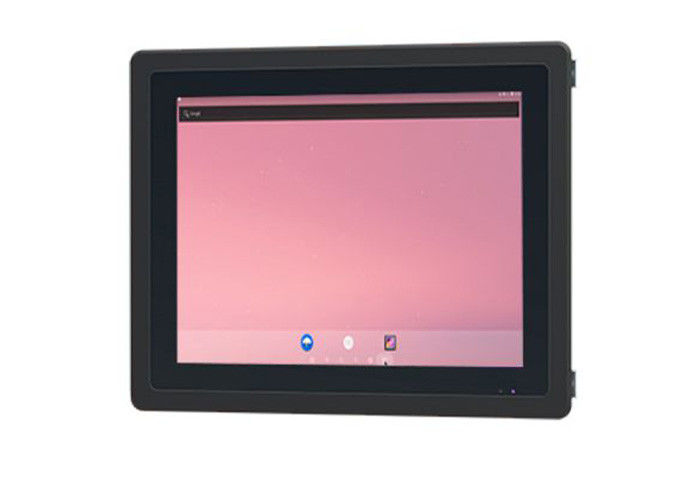

The 12.1-inch Android display is a versatile and high-performance solution for medical panels and smart terminals in healthcare environments. With a high resolution of 1280 x 800 and a brightness of 400cd/m², this display ensures crystal-clear visibility for medical professionals operating in environments with varying lighting conditions. Whether used for patient monitoring, diagnostic imaging, or displaying real-time health data, this screen offers the necessary clarity and accuracy required for healthcare applications. The device's 16.7 million color display enables vibrant visuals, making it ideal for electronic medical records (EMR) systems, ensuring that doctors and nurses can interact with medical data effectively.
| LCD Panel Parameters | Screen Size | 12.1 Inch | ||
| Display Area | 245.76 mm.(Height) X 184.32(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 800 X 600 | 1280 X 800 | ||
| Display Color | 16.7M | 16.7M | ||
| Brightness | 350 cd/㎡ | 400 cd/㎡ | ||
| Contrast Ratio | 1000 :1 | 1200 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 85°/85°/85°/85° (Type)(CR≥10) | ||
| Response Time | 30ms | 25ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 13.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | OTG USB2.0 x 1 | ||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 15 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 314.1 X 253.1 X 50mm. | ||
| Net Weight | 3 Kilogram | |||
| Package Size | 36.8 X 16.3 X 15Centimeter | |||
| Gross Package Weight per Unit | 4 Kilogram | |||
In addition to medical devices, this 12.1-inch Android screen is perfect for smart terminals used in industries such as retail, education, and hospitality. Its touchscreen interface supports seamless user interaction, enabling fast access to key functionalities. In retail environments, it can be used as a point-of-sale (POS) terminal, providing an intuitive interface for processing transactions and displaying customer-facing content. For interactive kiosks, the screen can offer information on product listings, promotions, or even serve as a self-service check-in station in places like airports or hotels. The 2GB RAM and 32GB storage ensures that apps run smoothly, while Wi-Fi 6 and Bluetooth 5.0 connectivity enable fast communication with other devices, making it highly versatile for various business needs.
Beyond its use in healthcare and business sectors, this 12.1-inch Android display is highly suitable for industrial automation applications. It can be integrated into control panels, manufacturing equipment, and automated systems to provide operators with a reliable and responsive interface. The high contrast ratio and wide viewing angles make it ideal for use in environments where operators need to monitor and control machinery remotely. Additionally, with its Ethernet and Bluetooth capabilities, it supports remote diagnostics and troubleshooting, ensuring that machines operate smoothly without the need for physical intervention. This embedded display offers a practical and efficient solution for monitoring and managing operations in diverse industrial sectors.
