Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E156WAS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

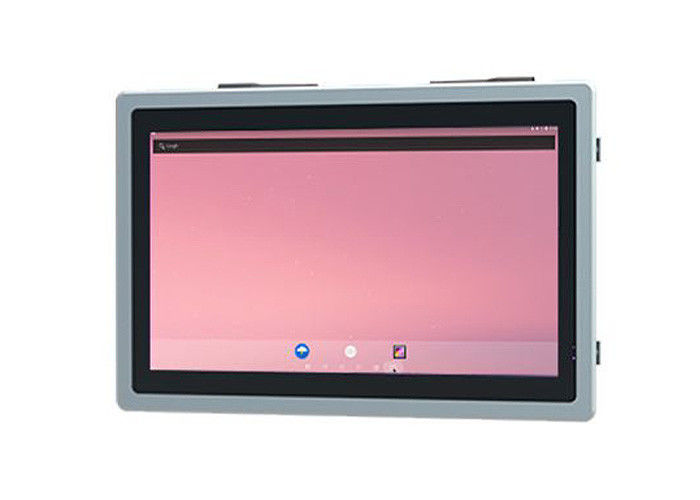

The 15.6-inch slim Android display is a powerful solution for factory dashboards and automation systems where precision and efficiency are key. With a 1920x1080 resolution, this monitor ensures clear, detailed visuals of real-time production metrics, machine status updates, and automated processes. Its robust build quality allows for continuous operation in demanding industrial environments, making it an ideal choice for smart factories and manufacturing plants. Featuring high brightness levels and wide viewing angles, the display ensures consistent readability from multiple positions, making it easy for operators and technicians to monitor critical data throughout the factory floor. The Android operating system also supports easy customization, enabling seamless integration with existing automation systems and devices, thereby optimizing workflow.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.16 mm.(Height) X 193.59(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 403.9 X 263.9X 50mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 47 X 33 X 15Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
In addition to industrial use, the 15.6-inch Android monitor can be integrated into transportation systems and logistics hubs for efficient fleet management. Its high resolution allows for clear viewing of GPS navigation, vehicle tracking, and performance diagnostics in real-time. With the Bluetooth connectivity and Ethernet ports, it easily connects to a wide variety of sensors and tracking devices, making it perfect for live fleet management dashboards that require constant monitoring of vehicle location, maintenance status, and route optimization. The sturdy design ensures that the monitor can withstand the harsh conditions of moving vehicles, while its power-efficient design guarantees it remains functional for long durations without significant energy consumption.
The 15.6-inch display is also ideal for use in public information systems and digital signage applications. With its sleek and compact design, it can be seamlessly integrated into kiosks, interactive wayfinding stations, or even customer service points. Whether for retail stores, airports, or shopping malls, the monitor's HD resolution and wide viewing angles deliver clear, high-quality visuals to passersby, ensuring that digital advertisements, product information, or service updates are easily visible from all directions. Its Android system allows for remote updates and control, making it easy to manage content remotely across multiple locations. This versatility makes it an excellent choice for dynamic content delivery in public-facing installations, where reliability and user-friendliness are paramount.
