Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-E185WLS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 18.5 Inch | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |

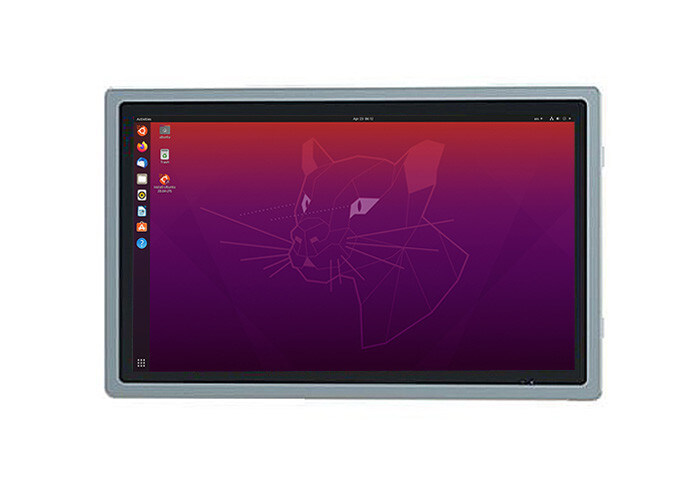

The 18.5-inch integrated display serves as an ideal solution for transportation systems, providing critical information for commuters and passengers. With its high-definition resolution of 1920 x 1080 and 1200:1 contrast ratio, it is capable of delivering clear, vibrant visuals of real-time schedules, route maps, and alerts. The wide 89° viewing angles ensure that travelers can easily read information, regardless of where they are standing. Designed to perform consistently in high-traffic environments, this display offers 250cd/m² brightness, ensuring optimal visibility even under bright sunlight. It's perfect for installation in train stations, bus terminals, and airport lounges, where clear and reliable passenger information is paramount. Additionally, the built-in stereo audio system can enhance notifications and announcements, making the system more user-friendly and interactive.
| LCD Panel Parameters | Screen Size | 18.5 Inch | ||
| Display Area | 409.8 mm.(Height) X 230.4(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7m , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 1200 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 14ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 470.9 X 294.9 X 50mm | ||
| Net Weight | 6.5 Kilogram | |||
| Package Size | 55 X 38 X 15Centimeter | |||
| Gross Package Weight per Unit | 7 Kilogram | |||
In smart equipment and industrial applications, the 18.5-inch monitor proves to be a highly functional and flexible tool. Whether used for automation controls, machine monitoring, or inventory tracking, it integrates seamlessly into complex systems, providing real-time data and status updates. The display's Intel i5 processor and 8GB of RAM deliver strong performance even under heavy processing loads, while its Wi-Fi integration offers remote connectivity for monitoring and control. In manufacturing plants, robotic systems, or assembly lines, this display can be used to manage and adjust parameters, show real-time machine data, and guide operators through automated workflows. Its ability to support multiple input interfaces such as HDMI, USB, and Ethernet makes it adaptable to various devices, from video surveillance systems to control panels, ensuring seamless integration with diverse systems.
This 18.5-inch display is equally well-suited for smart homes and digital signage applications. Whether functioning as a control hub for home automation or as an interactive information kiosk, it provides a user-friendly interface for managing lighting, security, and entertainment systems. The screen's full HD resolution ensures that it displays high-quality visuals for advertising, wayfinding, or customer engagement in shopping malls, corporate lobbies, and exhibition spaces. Additionally, the low power consumption (under 30W) and long lifespan (60,000 hours) make it a sustainable choice for both commercial installations and personal use. Its compact size and versatility allow it to be mounted easily in various locations, offering an excellent combination of functionality, performance, and energy efficiency for a range of applications in both residential and commercial environments.
