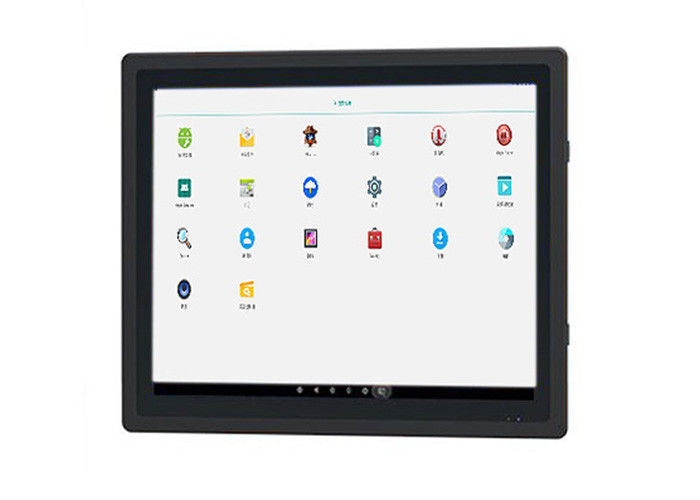

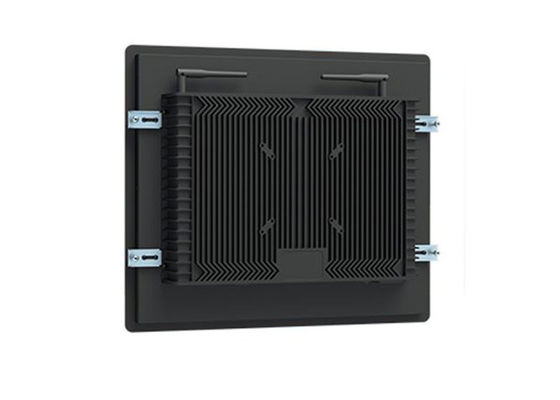

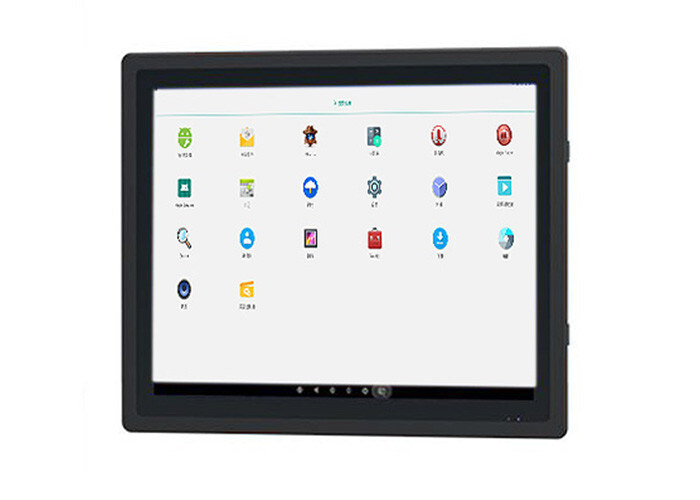

17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations

17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations

  • 17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations
  • 17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations
17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E170WABWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 17.0 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations

The 17-inch Android display is an ideal solution for industrial monitoring systems where reliability and clarity are crucial. With its 1280x1024 resolution and high contrast ratio, it provides real-time data visualization for processes that require constant oversight, such as monitoring machinery performance, environmental conditions, or factory production lines. Equipped with a Quad-Core processor and Wi-Fi 6 connectivity, this device allows seamless integration with other systems, offering a smart, centralized control panel for operators. It is particularly valuable in remote monitoring setups, where operators can view live updates, troubleshoot issues, or adjust machine settings through the intuitive touchscreen interface. Its Android OS adds the flexibility to deploy custom apps, enhancing its adaptability to various industrial environments like manufacturing facilities or energy plants.

LCD Panel ParametersScreen Size17 Inch
Display Area337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7M , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time20ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
GPUMali-T764Mali-G52
RAM2GB4GB
ROM32GB32GB
Android SystemAndroid 10.0Android 13.0
Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth4.25
InterfaceUSB2.0 x 2OTG USB2.0 x 1
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions400.6 X 338.6 X 56.7 mm.
Net Weight5.5 Kilogram
Package Size48 X 39 X 15 Centimeter
Gross Package Weight per Unit6 Kilogram


In logistics operations, the 17-inch screen serves as a highly efficient tool for managing and tracking shipments, inventory, and real-time supply chain processes. Its wide viewing angles and consistent brightness ensure clear, accessible information whether displayed in warehouses, truck loading docks, or distribution centers. With its Ethernet port and Bluetooth connectivity, the display can easily link to barcode scanners, RFID systems, or GPS devices to track the status and movement of goods. Warehouse operators and logistics managers can view detailed information, such as shipping schedules, inventory levels, and live transport status updates, all from one convenient interface. This seamless integration improves workflow efficiency, reduces human error, and enhances real-time decision-making, which is vital in inventory management, delivery scheduling, and asset tracking.
17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 017-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 117-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 217-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 317-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 417-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 5
17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations 6
For fleet management, the 17-inch Android display is an invaluable tool in vehicle dashboards, helping track, manage, and optimize routes for delivery fleets or transportation companies. The screen can be installed within vehicles, providing drivers with essential data such as real-time traffic conditions, vehicle status, and GPS navigation. Its Android operating system enables fleet managers to remotely update software, monitor performance, and even conduct diagnostics without requiring physical intervention. Moreover, the display’s stereo speakers provide audible notifications for critical updates, such as maintenance alerts or operational reminders. With its rugged design and broad temperature range, this screen is perfect for use in harsh environments, such as delivery trucks or field service vehicles, ensuring continuous operations and improved communication in logistics and transportation fleets.
