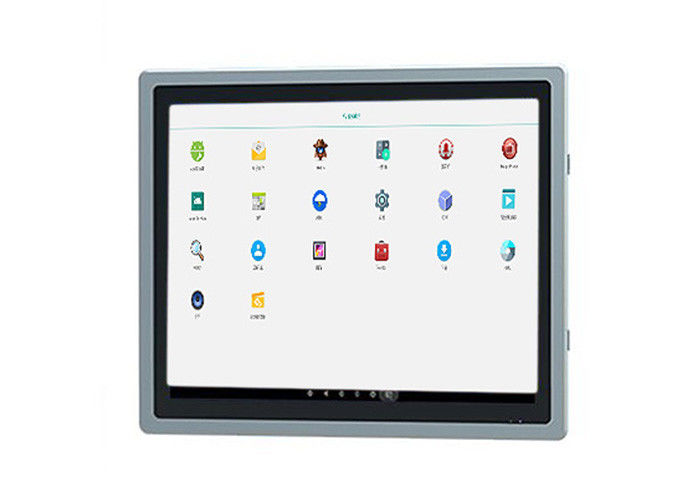

17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations

17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations

  • 17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations
  • 17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations
17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E170WASWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 17.0 Inch Aspect Ratio: 16:9

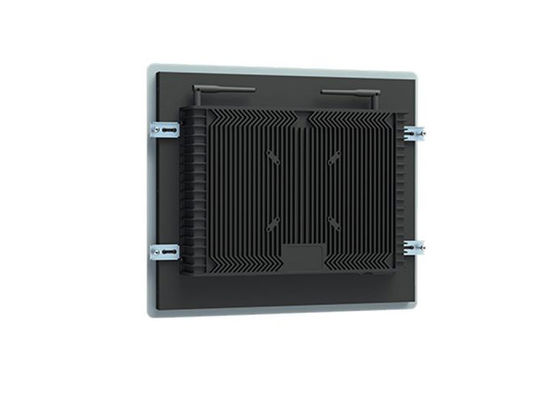

Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
Highlight:

17-Inch Reliable Android Screen PC

,

Android Screen PC for Industrial Monitoring

,

Android Display PC for Logistics Operations

17-Inch Reliable Android Screen for Industrial Monitoring and Logistics Operations

The 17-inch Android monitor is an indispensable tool in industrial monitoring applications, where its high contrast ratio and large display area help optimize workflow and improve visibility. Whether in control rooms overseeing factory production lines or in environmental monitoring systems, this display provides real-time data and visual feedback to operators. Its 1280x1024 resolution ensures that operators can accurately observe critical performance metrics, while its Android OS allows for easy integration with custom apps or remote control systems, making it highly adaptable to various industrial environments. With Ethernet connectivity and Wi-Fi 6, it can also communicate seamlessly with other networked devices to deliver comprehensive insights into machine performance, safety parameters, and operational statuses, contributing to better decision-making in energy plants, manufacturing facilities, and automated warehouses.

LCD Panel Parameters Screen Size 17 Inch
Display Area 337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 20ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 13.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 400.6 X 338.6 X 56.7 mm.
Net Weight 5.5 Kilogram
Package Size 48 X 39 X 15 Centimeter
Gross Package Weight per Unit 6 Kilogram


In logistics and supply chain management, this 17-inch display proves invaluable for streamlining operations. With its stereo audio system and 4-pin connectors, it can be integrated into tracking systems for real-time updates on shipments and inventory, making it perfect for use in warehouses, distribution centers, and delivery vehicles. By providing clear visual indicators for package location, storage conditions, or stock availability, it enhances operational efficiency and reduces the chances of human error. Warehouse managers can monitor the flow of goods, schedule deliveries, and view alerts or notifications about inventory levels directly from the screen. The added Bluetooth 5.0 functionality ensures that peripheral devices like barcode scanners or RFID systems are easily linked to the screen for a complete, integrated solution.
17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 017-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 117-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 217-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 317-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 417-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 5
17-Inch Reliable Android Screen PC for Industrial Monitoring and Logistics Operations 6
The 17-inch Android display also has broad applications in vehicle fleet management, where its rugged design and long lifespan make it perfect for use in delivery trucks, service vehicles, or logistics fleets. Its multi-angle viewing and high brightness capabilities allow drivers to access live information such as route guidance, traffic updates, and vehicle diagnostics in all conditions. Moreover, the USB ports and HDMI input make it highly versatile, enabling it to interact with navigation systems, vehicle telematics, or mobile devices for a complete management solution. Fleet managers can remotely monitor vehicle status, ensuring efficient route planning and maintenance schedules, ultimately reducing downtime and increasing fleet productivity. The Android platform also provides the flexibility to run custom applications for real-time monitoring, driver behavior analysis, and maintenance tracking, offering a comprehensive solution for transportation companies.
