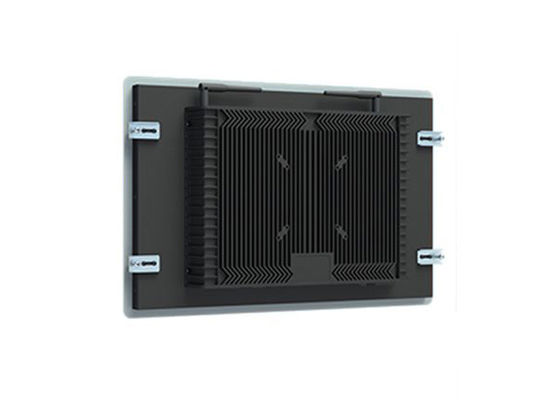

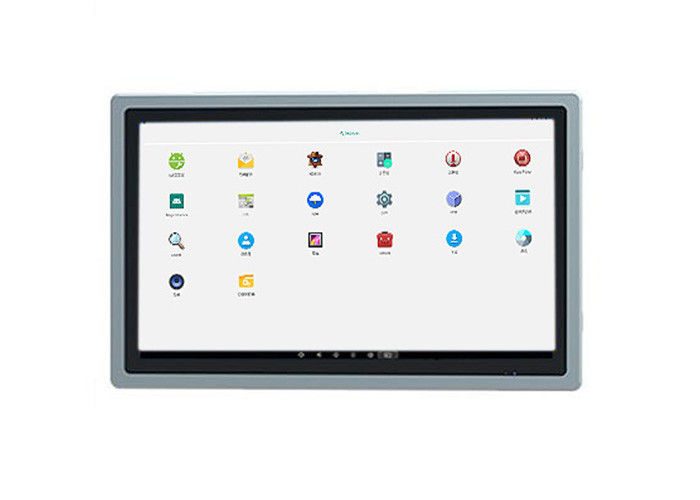

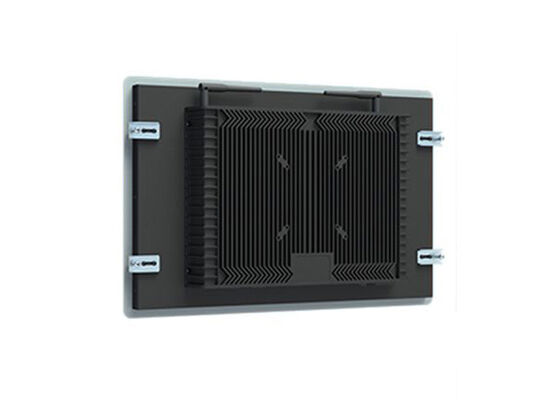

18.5-Inch Android Monitor for Transportation Systems and Access Control Panels

18.5-Inch Android Monitor for Transportation Systems and Access Control Panels

  • 18.5-Inch Android Monitor for Transportation Systems and Access Control Panels
  • 18.5-Inch Android Monitor for Transportation Systems and Access Control Panels
18.5-Inch Android Monitor for Transportation Systems and Access Control Panels
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E185WASWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 18.5 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

18.5-Inch Android Monitor for Transportation Systems and Access Control Panels

The 18.5-inch Android monitor is an ideal solution for transportation systems such as bus terminals, train stations, and subway systems, providing clear and dynamic displays for public announcements, schedules, and live updates. With its 1920x1080 resolution, the monitor ensures that essential information, like travel itineraries, traffic alerts, and emergency notices, are visible even in high-traffic areas or well-lit environments. Its high contrast ratio and wide viewing angle ensure that information remains legible from various distances and angles, making it perfect for large transportation hubs where passengers need quick and easy access to real-time data. Equipped with Wi-Fi 6 and Ethernet connectivity, the monitor enables seamless integration into centralized management systems, allowing for instant updates, synchronization, and the remote control of displays across multiple locations.

LCD Panel ParametersScreen Size18.5 Inch
Display Area409.8 mm.(Height) X 230.4(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color16.7m , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
GPUMali-T764Mali-G52
RAM2GB4GB
ROM32GB32GB
Android SystemAndroid 10.0Android 11
Ethernet1 x RJ45, 1,000 MbpsEthernet 1,000 Mbps
Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth4.25
InterfaceUSB2.0 x 2OTG USB2.0 x 1
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions470.9 X 294.9 X 56.7 mm
Net Weight6.5 Kilogram
Package Size55 X 38 X 17Centimeter
Gross Package Weight per Unit7 Kilogram


In access control panels for smart buildings, gated communities, or commercial offices, the 18.5-inch monitor functions as an intuitive interface for security systems, allowing personnel to interact with video feeds, access logs, and authentication systems. The screen's ability to display both camera surveillance footage and real-time notifications enhances security monitoring, ensuring personnel can act promptly when necessary. Additionally, the stereo audio system provides clear sound for announcements or emergency alerts, which is crucial in restricted or high-security areas. This Android-based monitor supports a variety of peripheral devices, such as biometric scanners, RFID card readers, or keypad systems, thanks to its USB and Bluetooth capabilities. Whether used in visitor management or employee access control, this monitor offers a flexible solution for modern security needs.

18.5-Inch Android Monitor for Transportation Systems and Access Control Panels 018.5-Inch Android Monitor for Transportation Systems and Access Control Panels 118.5-Inch Android Monitor for Transportation Systems and Access Control Panels 218.5-Inch Android Monitor for Transportation Systems and Access Control Panels 318.5-Inch Android Monitor for Transportation Systems and Access Control Panels 418.5-Inch Android Monitor for Transportation Systems and Access Control Panels 518.5-Inch Android Monitor for Transportation Systems and Access Control Panels 6
For interactive kiosks and self-service terminals in locations like retail outlets, airports, or hotel lobbies, the 18.5-inch monitor offers a seamless, user-friendly experience. Customers can check in, view product catalogs, access location maps, or purchase tickets with ease, thanks to the monitor's responsive touchscreen and powerful Android system. Its high-resolution display ensures that multimedia content, such as promotional videos or product information, appears vibrant and engaging. The Bluetooth and USB connectivity support integration with additional services, such as ticket printers, payment systems, or QR code scanning, expanding its use across a range of applications. Designed to operate efficiently in public spaces, this monitor offers a reliable solution for customer-facing interactions in a wide variety of commercial and public service environments.
