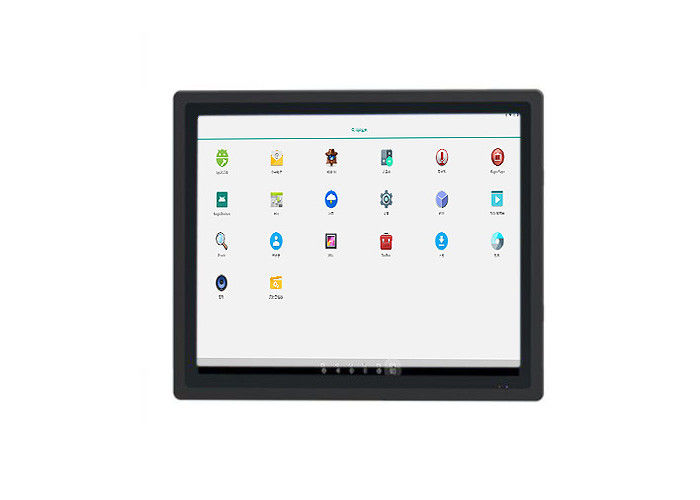

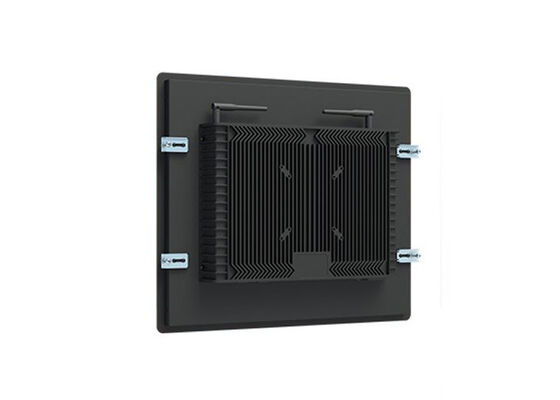

19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces

19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces

  • 19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces
  • 19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces
19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces
Product Details:
Place of Origin: Guangdong, China
Brand Name: ZXTLCD
Certification: CE/Rohs/FCC
Model Number: ZXTLCD-E190WABWFS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden case, carton, flight cases are optional
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Screen Size: 19.0 Inch Aspect Ratio: 16:9
Brightness: 400 Cd/m² Install Type: Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment: Outdoor; Indoor Applications: Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An

19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces

The 19-inch Android display offers significant potential for medical applications, enhancing the functionality and usability of medical equipment in hospitals and clinics. Designed to deliver high-resolution images, this screen is ideal for medical imaging devices like ultrasound machines, X-ray systems, and patient monitoring stations. With its crisp 1280x1024 resolution and high contrast ratio, medical professionals can view images, diagnostic charts, and patient data with clarity, ensuring quick and accurate decision-making. The large screen size allows multiple data streams to be presented simultaneously, facilitating more efficient workflows. The display also integrates seamlessly with various hospital management systems, enabling remote access, updates, and integration with other medical devices, thanks to its robust Ethernet and Wi-Fi capabilities.

LCD Panel ParametersScreen Size19 Inch
Display Area376.32 mm.(Height) X 301.06(Width)mm.
Aspect Ratio4 : 3
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7m , 73% NTSC
Brightness250cd/m²
Contrast Ratio1000 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency100Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Built-in Android PCB Configuration (Choose one of two)CPUQuad-Core RK3288, 1.8GHzQuad-Core RK3568,2.0GHz
GPUMali-T764Mali-G52
RAM2GB4GB
ROM32GB32GB
Android SystemAndroid 10.0Android 11.0
Ethernet1 x RJ45, Ethernet 1,000 Mbps1 x RJ45, Ethernet 1,000 Mbps
Wireless Internet2.4Gigahertz2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth4.25
InterfaceUSB2.0 x 2USB2.0 x 2
HDMI IN x 1
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions436.5 X 364.5 X 56.7 mm.
Net Weight6.5 Kilogram
Package Size52 X 44 X 17 Centimeter
Gross Package Weight per Unit7 Kilogram


In addition to healthcare settings, this 19-inch monitor serves as a powerful interface for smart home systems and automation control panels. With its responsive Android operating system, the monitor can serve as the central hub for controlling various smart devices within a home or building, such as lighting, security systems, and climate control. Its sleek design and wide viewing angle make it an ideal choice for mounted installations on walls, enabling easy interaction with household systems. Whether used for controlling smart thermostats or managing video surveillance feeds, this monitor ensures users can enjoy smooth navigation with Wi-Fi 6 and Bluetooth connectivity, adding flexibility and convenience to modern living environments.

19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 019-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 119-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 219-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 319-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 419-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 519-Inch High-Performance Android Display for Medical Applications and Smart Interfaces 6
Furthermore, the 19-inch Android display is well-suited for interactive kiosks and digital signage in public spaces. From airport check-ins and information stands to advertising boards in shopping malls, this screen's combination of high brightness and vibrant colors ensures that it captures attention in bustling environments. It is also an excellent solution for wayfinding systems and self-service terminals in museums, hotels, and entertainment venues, where visitors can access maps, booking systems, and event schedules. Thanks to its HDMI input and USB interfaces, the display can easily connect to other media sources or digital content providers, delivering interactive, engaging, and informative experiences. Its compact form factor, paired with efficient power consumption, makes it a versatile solution for a range of digital interaction scenarios.
