19-Inch High-Performance Industrial Panel PC for Medical Applications and Smart Interfaces

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-E190WASWFS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight cases are optional
Delivery Time:	3-5 working days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	19.0 Inch	Aspect Ratio:	16:9

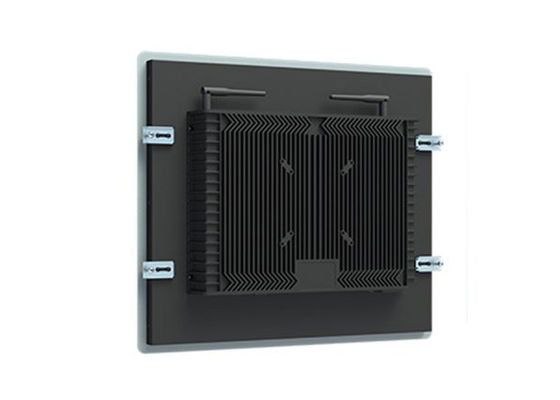

Brightness:	400 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
Highlight:	19-Inch Industrial Panel PC , Smart Interfaces Industrial Panel PC , 4:3 Android Display PC

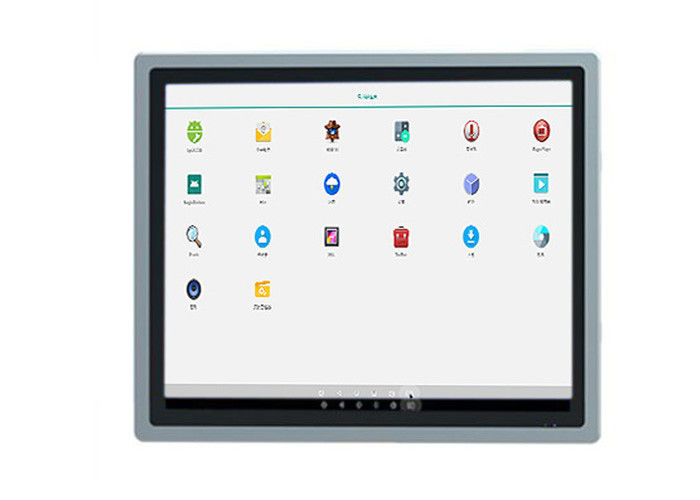

19-Inch High-Performance Android Display for Medical Applications and Smart Interfaces

The 19-inch high-performance Android display is perfectly suited for medical applications, offering healthcare professionals a high-definition interface for patient monitoring systems, diagnostic imaging equipment, and healthcare management software. With its 1280x1024 resolution and excellent color accuracy, this display enhances the precision of reading medical scans, vital signs, and other critical data, while the wide viewing angle ensures clear visibility from multiple directions. Whether integrated into radiology workstations, used in operating rooms, or for patient care systems, the reliable performance of this screen supports real-time data management. With Wi-Fi and Ethernet connectivity, it ensures smooth integration into medical networks, enabling remote access and data sharing, essential in modern telemedicine practices.

LCD Panel Parameters	Screen Size	19 Inch
	Display Area	376.32 mm.(Height) X 301.06(Width)mm.
	Aspect Ratio	4 : 3
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 1024
	Display Color	16.7m , 73% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	100Hertz
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Built-in Android PCB Configuration (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11.0
	Ethernet	1 x RJ45, Ethernet 1,000 Mbps	1 x RJ45, Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	USB2.0 x 2
			HDMI IN x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	436.5 X 364.5 X 56.7 mm.
	Net Weight	6.5 Kilogram
	Package Size	52 X 44 X 17 Centimeter
	Gross Package Weight per Unit	7 Kilogram

In addition to its medical utility, this versatile 19-inch Android display also excels in smart interface applications, transforming it into an intelligent control hub for modern living and business spaces. It can be embedded into smart home systems for managing lighting, security, and environmental controls, providing a convenient touch interface. Whether it’s controlling HVAC systems, security cameras, or smart locks, this screen brings intuitive interaction to the forefront. With its Bluetooth and Wi-Fi 6 capabilities, the display allows seamless communication with various IoT devices, making it an ideal solution for interactive home dashboards or business control panels. Its reliable performance in both high-traffic environments and private settings ensures continuous, high-quality operation.

19-Inch High-Performance Industrial Panel PC for Medical Applications and Smart Interfaces 0
Furthermore, the 19-inch Android monitor offers an exceptional solution for digital signage and interactive kiosks in public and commercial spaces. Whether used in retail environments, airports, or trade shows, this display delivers stunning visuals and crisp text, essential for capturing the attention of passersby. Its high brightness and contrast ratio make it suitable for installation in bright, high-traffic areas. The display also integrates easily with external devices through HDMI inputs and USB interfaces, enabling it to play videos, advertisements, or information feeds seamlessly. This makes it a go-to solution for interactive touchscreens used in wayfinding, self-check-in kiosks, and advertising boards, enhancing user engagement and streamlining customer interactions in public spaces.
