Give your amazing touch and visual experience !!!
 |
| Place of Origin: | China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | LD490DUN-THC1 |
| Minimum Order Quantity: | 4 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 5 working days after confirm |
| Payment Terms: | T/T,Western Union, Alibaba trade assurance |
| Supply Ability: | 5,000 pcs per month |
| Panel Size: | 49 Inch | Panel Brand: | LG |
|---|---|---|---|
| Installation Way:: | Cabinet, Floor Standing Or Wall Mount | Gap Between Panels: | 3.5mm |
| Warranty: | 1 Year | Brightness: | 700 Cd/m2 |
| High Light: | touch screen video wall,video wall lcd monitors |
||

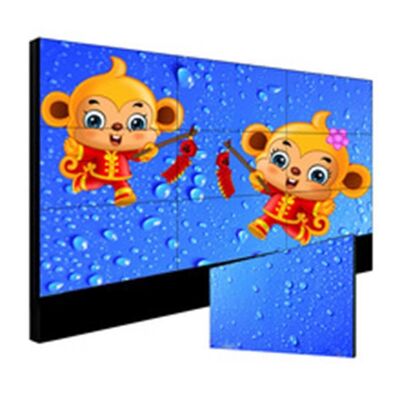

Top Quality 49 Inch Exhibition LCD Video Wall LG TV Walls Ultra Narrow Bezel
| Video Wall | Model No. | LD490 DUN-THC1 | LD550 DUN-TGB1 |
| Panel | Panel Size | 49 inch | 55 inch |
| Super narrow bezel | 3.5mm | 3.5mm or 1.8mm | |
| Resolution | 1920*1080 | 1920*1080 | |
| Viewing angle(H/V) | 178° | 178° | |
| Color | 16.7M | 16.7M | |
| Brightness(nits) | 500cd/m2 or 700cd/m2 | 500cd/m2 or 700cd/m2 | |
| Contrast ratio | 3000:1 | 3000:1 | |
| Aspect Ratio | 16:9 | 16:9 | |
| Display area | 1073.8*604 | 1209.6*680.3 | |
| Response Time | <=8ms | <=8ms | |
| Life(hrs) | >60,000(hrs) | >60,000(hrs) | |
| Video Wall Controller(Built-in each Screen) | |||
|
DVI in:1 HDMI in:1 VGA in:1 AV(BNC) in: 4 Composite Video Input:2(BNC×2) Y,Pb,Pr/Y,Cb,Cr input:1 (BNC×3) Composite Video Output:2 (BNC×2) S-video:1 (BNC×2) Control signal input and loop out:RS232(RJ45-8) |
|||
| Video System | |||
|
Color System:PAL/NTSC/SECAM HDTV Mode:480P,576P,720P,1080P |
|||
| Power | |||
|
Power Supply:AC100V~240V, 50/60Hz Maximum Power Consumption:<=220W Standby Power Consumption:<=5W |
|||
| Temperature | |||
|
Working Temperature:0°C~50°C Working Humidity:20%-80% |
|||
| Optional features: IR touch | |||
|
Color Gamut: 70% Operating Temperature:0℃ - 40℃, Humidity: 10% ~ 80% . Touch points: 10 touch |
|||
| Optional accessories: Cabinets, wall-mounted, floor-type | |||
A video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. Typical display technologies include LCD panels, Direct View LED arrays, blended projection screens, Laser Phosphor Displays, and rear projection cubes.
1. Ultra-narrow edge mosaic wall, the narrowest bilateral border can reach 1.8mm, the real seamless mosaic video wall.
2. Bright LCD, LCD screen brightness up to 700cd / m2, but also according to the brightness of the surrounding environment, automatically adjust the screen brightness.
3. Ultra-high resolution, single-screen display resolution of 1920 × 1080, full screen mosaic display resolution is a single screen multiples.
4. Video mosaic wall matrix display capabilities, built-in image magnification processor, supports a variety of video wall format, enabling 2 × 2, 3 × 3 ... m × n any installation splicing, free to support M × N, such as 256 screen Phase stitching. The signal receiver does not require an additional signal distributor.
5. High reliability, stability, stitching splicing wall support 7 × 24 hours of continuous operation. Highly reliable industrial power supply design, heat flow guide design to ensure stable operation.
6. Software control, stitching software centralized control system, the monitor splicing methods, size, contrast, brightness, color and other control, easy to operate, fast.
1.Outer protecting package could be customized if needed, our regular offer is with Bubble, Carton, Thick corrugated board carton and Wood case; Air cases is also available if it is needed.
2.Regular delivery date is about 3-7 working days about sample, 10-15 working days for mass order, customized device based on confirming about details.
3.Available trade terms: EWX, FOB Shenzhen, C&F, CIF, DDP, DDF.
4.The final packing size and details is sure according to order quantity.
