Give your amazing touch and visual experience !!!
 |
| Place of Origin: | China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXT-TP320B |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T,Western Union, Alibaba trade assurance |
| Supply Ability: | 2,000 pcs per month |
| Panel Size: | 32'' | Type: | Touch Screen Table |
|---|---|---|---|
| Touch Screen: | Capacitive Multi Touch 10 Points | Waterproof: | Support |
| OS: | Windows 10 | Mainboard: | H81 |
| High Light: | interactive multi touch table,tabletop touch screen monitor |
||

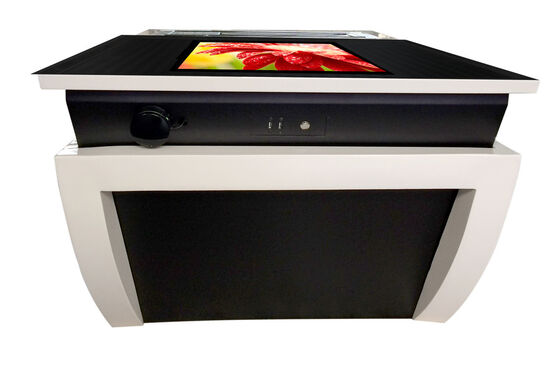

Customized Windows 10 Wifi Waterproof Projected Capcitive Touch Screen Tea Table
Product introduction :
This kind machine usually built-in PC, you can consider it as a large computer table with touchscreen function. Besides, you can install your own software to get what you need. Actually, you can see this kind product around you here and there. Some one special application software installed on this kind machine, you can touch the screen to query some information from web page or perform an operation via software. As you seen, interactive Application represent a major trend in the futures market.
We will default I3 processor as standard configuration of internal PC for touchscreen PC if you have no special configuration requirements in your inquiry, besides, For this kind interactive display equipment, high quality touchscreen panel is key to the machine.
The instruction for Touchscreen Panel
We usually default capacitive touchscreen panel(10 points) with these feature for our machine as follows :
1, High resolution 1080P, make sure the high touch accuracy .
2, Support real multi touch,lines will not get cross when multi people writting/drawing at the same time.
3, Software develop kit can provide you, then you can develop some softwares by yourself.
4, Touch still available even 20% sensors are covered.
5, Supporting automatical adjusting of touch according to dust, making less impact caused by dust.
| Touch Max Resolution | 32726 X 32726 |
| Transparency | >90% ; Up to 100% |
| Scanning Speed | >50s scans/S |
| Response speed | <12m |
| Touch type | Vertical Multiple Dot Touch screen |
| Touch precision | 0.625mm |
| Min Touch object | 5m |
| Touch intensity | Over 60,000,000 Single Point Touch |
| Operation System | Android system |
| Operating Voltage | DC, 5V 5% |
| Power Supply | Keyboard Serial Interface |
| Power | <1W(Current < 200mA) |
| Communication | RS-232 interface Port, USB port |
| Vandal-Proof | Steel Ball (Diameter 63.5mm 1040g weight) drop from 1040mm , No break |
| Temperature Operating | below 41℃~70℃ |
| Temperature Storage | below 50℃~85℃ |
| Altitude | 3000m |
| Noise | None |
| Life Time | >10 year |
The Product Specification
| Panel size | 32" |
| Display area(mm)/mode | 697(H) X 392(V) |
| Maximum resolution | 1920 X 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.510(H)×0.510(V) |
| Brightness (nits) | 350cd/m2 |
| Contrast | 2000:1 |
| Visual angle | 178/178/178/178° |
| Response time | 8ms |
| Life(hrs) | 50,000(hrs) |
| Power Supply | AC 100~240V |
| Standy Power Consumption | 0.3W |
| Working Temperature | 0℃ ~ 40℃ |
| Storage Temperature | below 20℃~60℃ |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Appearance | Tempered Glass with metal Enclosure( other type or coloris option) |
| Max Power Consumption | 160W |
Computer Configuration1
|
CPU |
C1037CPU 1.8GHz Dual Core |
|
Chipset |
Intel NM70 |
|
RAM |
2 GB DDR3 |
|
Graphics |
Intel HD Graphics2500 |
|
Audio |
HD 6-channel audio system |
|
Network Interface Card |
10/100/ 1000M |
|
WiFi |
High quality WiFi module |
|
H.D.D. |
320GB |
|
Speaker |
2 build-in high quality stereo speaks(3w or 5w) |
|
O.D.D |
DVD-RW(unavailable) |
|
Mouse/Keyboard |
wireless suit(optional) |
|
Pre-Installed OS |
Windows XP or Win 7 |
| Interface | VGA/DVI/HDMI/ USB*4/RJ45 |
Computer Configuration2
|
CPU |
Intel i3 4160 3.2GHz,Dual core |
|
Mainboard |
H110 |
|
RAM |
4 GB DDR3 |
|
Graphics |
HD Graphics 4600 |
|
Audio |
HD 6-channel audio system |
| 1x PCI Expansion Slot, 6x USB2.0 | |
|
WiFi |
High quality WiFi module |
|
H.D.D. |
500GB |
|
Speaker |
2 build-in high quality stereo speaks(3w or 5w) |
|
Interface |
VGA/HDMI |
| Network Card | Card RTL8100E |
|
Pre-Installed OS |
Windows 7/8/10 (Tested Version) |
| RJ45 x1, Wi-Fi |
Computer Configuration3
|
CPU |
Intel i5 6400 3.3GHz Dual core |
|
Mainboard |
H81 |
|
RAM |
8 GB DDR3 |
|
Graphics |
HD Graphics 4600 |
|
Audio |
HD 6-channel audio system |
| 1x PCI Expansion Slot, 6x USB2.0 | |
|
WiFi |
High quality WiFi module |
|
H.D.D. |
500GB |
|
Speaker |
2 build-in high quality stereo speaks(3w or 5w) |
|
Interface |
VGA/HDMI |
| Network Card | Card RTL8100E |
|
Pre-Installed OS |
Windows 7/8/10 (Tested Version) |
| RJ45 x1, Wi-Fi |
If you have any other questions, please contact our salesman as soon as possible.
