|Place of Origin:||China|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||wooden case, carton, flight case are option|
|Delivery Time:||3-5 working days|
|Payment Terms:||T/T, Western Union,Paypal|
|Supply Ability:||5,000 pcs per month|
|Size:||15 Inch||Touch Type:||Projected Capacitive Touch|
|Touch Points:||10 Points||Application:||Industry..etc|
|Surface Hardness::||≥7 Mohs||Thickness:||1.8mm~2.8mm (Custom Thicknesses Available)|
multi touch touchscreen,
projected capacitive touch screen

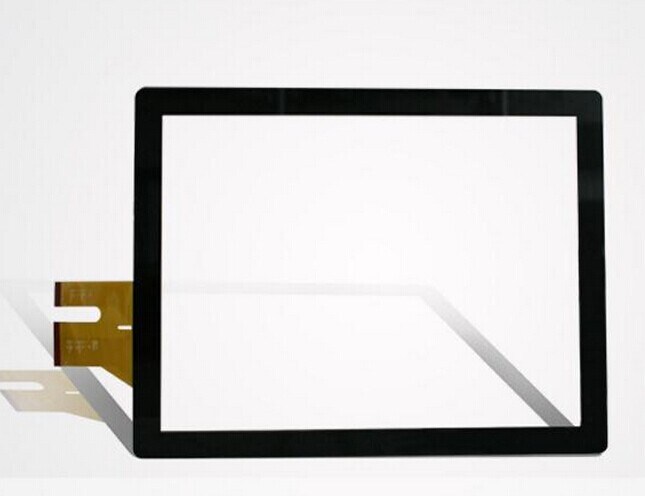

15 Inch Projected Capacitive Touch Screen, Customized Dimension LCD Touch Panel for Industry Application
ZXT capacitive touch screen is developed by American expert, used high quality raw material imported from Japan, and the quality control is under the supervision of Taiwanese experienced technical stuff. The item has long life, high stability, high transmittance, large size, maintenance free features, and is idea for Smart Phone, Tablet PC, GPS applications.
capacitive touch screen are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch screen are sealed between two sheets of glass by an optically clear adhesive.
-- There is no air gap between layers like in a resistive touch screen.
-- The patterns on the two parallel ITO layers form a grid of capacitors.
-- The electric fields of these capacitors are projected through the top layer of glass.
-- When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
-- This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
-- An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.
|Availabte Size||15-65 inch|
|Product Name||Capacitive Touch Screen|
|Surface Hardness||≥7 Mohs|
|Operational voltage||5V,12V DC|
|Operating Temperature||-30°C to 80°Cfor the touch screen|
|Storage Temperature||-40°C to 90°C(up to 90%RH from 0°C to +35°C)|
|Cleaning||Water, isopropyl, alcohol, and non-abrasive cleaners|
|Chemical Resistance||solvents, acids, and household chemicals in accordance with ASTM-D-1308-02el and ASTM-F-1598|
|Supported Operating Systems||MS-DOS, Windows 95/98/2000, CE/ME/2000NT, OS/2,XP,Linux|
|Thickness||1.8mm~2.8mm (Custom thicknesses available)|
|Touch Life||250 million touches in a single location|
|1. After-sales Service:|
|For the user questions or machine fault,we will arrange engineer provide remote-control technical support and maintenance services for you at any time.|
|2. Product Quality Assurance:|
|ZXT products had gone through authoritative evaluation, approves CE, RoHS certification, and strict test before shipment.|
|3. After-sales Service Team:|
|ZXT after-sales service center is equipped with a professional technical service team with abundant experience in maintenance and support.|
|4. Special statement:|
|ZXT provides 1 year warranty for free.
Validity starts from the device deliver and the signature acceptance, all man-made damage, accidental damage and malfunction caused by illegal operation are out of warranty. Beyond the touch screen warranty period, ZXT provide touch screen maintenance paid service, and charge for components and parts at our discretion with free maintenance . Within Warranty period, users will be provided with various timely response and support service , 24 hours all day-hotline telephone, fax, Email and other flexible means.
