Give your amazing touch and visual experience !!!
 |
| Place of Origin: | China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXT-D215-10B |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T,Western Union, Alibaba trade assurance |
| Supply Ability: | 5,000 pcs per month |
| Interface: | USB | Size: | 21.5'' |
|---|---|---|---|
| Touch Type: | Capacitive Touch | Structure: | Glass+glass |
| Storage Environment: | -40 To 90 ℃,≤90%RH | Surface Hardness: | 6H |
| High Light: | USB External Capacitive Touch Screen Panel,21.5'' Capacitive Touch Screen Panel,High Resolution Capacitive Touchscreen Display |
||

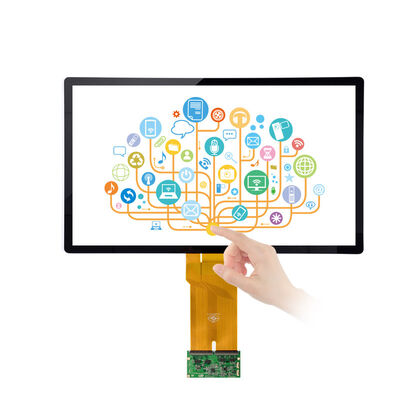

21.5 Inch Multi Touch Capacitive USB External Touch Screen For Self-Service Terminal
(PCAP)Capacitive Multi Touch Screen Specification:
ZXT's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps
Advantage:
- Capacitive touch technology.
- Highest resolution, sensitive and fast response
- Easy to install with LCD monitor
- Dustproof and Waterproof maintenance free.
- Touch screens can be built in specific dimensions requested by clients in custom orders
- Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.
Application:
- Point-of-information kiosks
- Vending and ticket sales
- Electronic catalogs
- Gaming, lottery, and amusement
- Public pay phones
- Multimedia marketing
- Banking/financial transactions
- Industrial control rooms
- Computer-based training
| OS | Version | Interfaces |
| Windows | Windows 8(Need logo submission) Windows 7 Windows Vista, XP/2000 Windows CE.net/5.0/6.0/7.0 Windows Embedded Windows XP Tablet PC edition |
USB/RS232 |
| Linux | Distribution based on Kernel 2.6.24 and later. (Ubuntu/Linux Mint Debian Fedora Red Hat/CentOS Magaie/Mandriva/Mandrake SUSE/openSUSE |
USB/RS232 |
| Android 2.3 ~ 4.4 | USB/RS232 | |
| Mac | Mac OS, Mac OS X (PowerPC, Intel CPU) | USB |
| QNX | QNX RTOS v6.3 | USB/RS232 |
Projected Capacitive Touch Panel Specification
---The specification of 21.5 inch touch screen--- |
|
| Specification | |
| Size | 21.5 inch |
| Product name |
21.5 inch capacitive touch screen |
| Model number | ZXT-D215-10B |
| Type | Capacitive touch screen |
| Struture | CTP(Glass+Glass) |
| Outline Dimension | 524x321.8x1.8mm |
| Active area | 478x269.80 mm |
| Thickness of cover glass | 1.1 mm |
| Touch screen solution | COB(Chip on the board) |
| Touch controller | EETI |
| Operating system | Win 7,win8,win ce,android,Linux,Mac |
| Interface of CTP | I2C/USB/RS232 |
| Surface Hardness | 6H |
| Transparency | 90%min |
| Touch Points | 10 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Specification:
| Size | Ratio | Frame Size | Viewable Area | Sensor Size | Active Area | Cover Thickness (mm) |
| (Inch) | WxH(mm) | WxH(mm) | WxH(mm) | WxH(mm) | ||
| 15 | 4:3 | 346.08*270.02 | 305.00*229.01 | 323.10*251.79 | 307.10*231.07 | 1.1 |
| 15.6 | 16:9 | 387.00*231.00 | 344.00*194.00 | 362.00*222.00 | 346.00*196.00 | 1.1 |
| 17 | 4:3 | 377.00*309.00 | 338.92*271.34 | 363.92*301.34 | 340.92*273.34 | 1.1 |
| 18.5 | 16:9 | 440.80*271.40 | 410.80*231.40 | 430.80*261.40 | 412.80*233.40 | 1.1 |
| 19 | 4:3 | 421.00*346.00 | 377.32*302.06 | 402.36*334.06 | 379.32*304.06 | 1.1 |
| 21.5 | 16:9 | 524.00*321.80 | 478.00*269.80 | 508.00*303.80 | 480.00*271.80 | 1.8 |
| 23.6 | 16:9 | 555.50*343.00 | 525.50*297.00 | 545.50*333.00 | 527.50*299.00 | 1.8 |
| 27 | 16:9 | 658.00*416.00 | 598.00*336.00 | 640.00*390.00 | 600.00*338.00 | 1.8 |
| 32 | 16:9 | 765.00*466.50 | 698.70*393.30 | 750.00*450.00 | 704.00*396.00 | 1.8 |
