Give your amazing touch and visual experience !!!

|
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label/Battery CE |
| Model Number: | ZXTLCD-TL190HAT |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $500/pcs ~ $650 |
| Packaging Details: | packed in wooden box or customized flight case |
| Delivery Time: | 10~ 20 days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 3000pcs per month |
| Features: | Transparent Screen | Screen Size: | 19 Inch |
|---|---|---|---|
| OS: | Android 7.1 System | Touchscreen: | Capacitive Touchscreen |
| Shell Material: | Metal Shell + Glass | Appearance Color: | White/Red/Black Optional |
| Android PCB Chip: | RK3288, Quad Core Processor | Max Resolution: | 1920(RGB)×1080(FHD) |
| RAM: | 2GB | ROM: | 16GB |
| High Light: | 19 Inch Transparent Advertising Monitor,20W Transparent Advertising Monitor,LVDS Transparent Advertising Showcase |
||

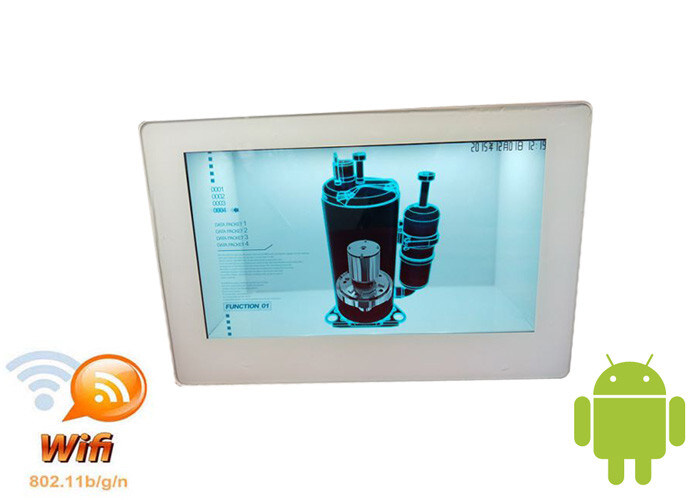

19 inch transparent advertising monitor showcase Manufacturer for Top-end watch
1, Main Feature :
1) Ultra-thin body design, fashion and elegant in the apperance ;
2) Dynamic play on the transprent screen, physical products show inside, combing static and dynamic display ;
3) Can be divided into different aspects of screen to play, support multiple media format;
4) Support timer switch, remote network control, etc;
5) Novel mode of transmission, and strengthen customer shopping experience, enhance the brand image;
6) Support 1080P full HD Display.
2, The specification of 19 inch transparent advertising monitor showcase :
| Model No | ZXTLCD-TL190HAT |
| Brand | ZXTLCD |
| Screen size | 19” |
| Panel type | A-Si TFT-LCD |
| Panel No | HNT1901 |
| Max resolution | 1280(RGB)×1024(FHD) |
| Dot pitch | 0.098×0.294 mm (H×V) |
| Pixel layout | RGB vertical bar |
| Pixel pitch | 0.294×0.294 mm (H×V) |
| Display area | 376×301 mm (H×V) |
| Appearance shape | Flat rectangle |
| Aspect ratio | 5 : 4 |
| Panel transparency | Above 75% |
| Contrast | 1000:1 (Typ.) |
| Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
| Optical mode | IPS, normally black display, transmissive |
| Best perspective | Full view angle |
| Response time | 7/11 (Typ.)(G to G)(B to W) (ms) |
| Display color | 16.7M (8-bit) |
| Panel Operating Voltage | 12V, 5A |
| working frequency | 60Hz |
| Panel signal system | LVDS |
| Control signal system | HDMI/VGA/USB/Audio inputs |
| Operating temperature | -20°～80° |
| Storage temperature | -30°～90° |
| Working Humidity | 10%~90% |
| Storage Humidity | 5%~90% |
| Power Supply | AC100-240V(50-60Hz) |
| Working Power Consumption | ＜20W |
| Standby Power Consumption | ＜3W |
| Protype | Desktop / Floor standing / Interactive(Optional) |
| Product size | Customized |
4,The specification of Capacitive touch screen frame
| Touch Method | Finger or Pen |
| Touch points | 10 Points |
| Touch strength | 10-60g |
| Finger touch time | ≥35,000,000 times |
| Withstand pressure | ＜10g |
| Surface hardness | ≥7H |
| storage temperature | -15°C~40°C,＜90%RH；40°C~70°C,＜60%RH |
| Relative humidity | 10%~90%RH at 40°C, non-condensing |
| Response time | <10ms |
| Transmittance | >85% |
| thickness | (1.1mm)+TopITO Film(0.125mm) +Bottom ITO Film(0.125mm) |
| Durability | Touch 50,000,000 times in the same position to work normally |
Application :
| red wine | Attract customer's attention and raise excitement |
| Resting Rooms | Disseminate latest information in an unexpected way |
| Multifunctional decoration | On wall, on table, embedded in fixture....and so on |
If you would like to discuss your requirement or need any additional information on our transparent advertising monitor showcase, then please do not hesitate to contact our sales team. Please send us a inquiry or contact us via whats App directly.
