Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-TB430CTM2Y |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Guangdong, China | Panel Size: | 43 Inch |
|---|---|---|---|
| Warranty: | 1-3 Years | LCD Type: | TFT-LCD |
| Material: | Metal Case + Toughened Glass Panel | Networking Support: | Ethernet,Wi-Fi |
| Touch Technology: | Capacitive Touch | Frame: | High-intensity Aluminum |
| Viewing Angle: | 178°/178° | Response Time: | 6ms |

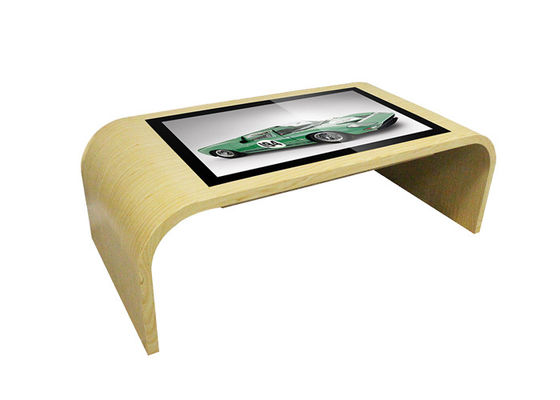

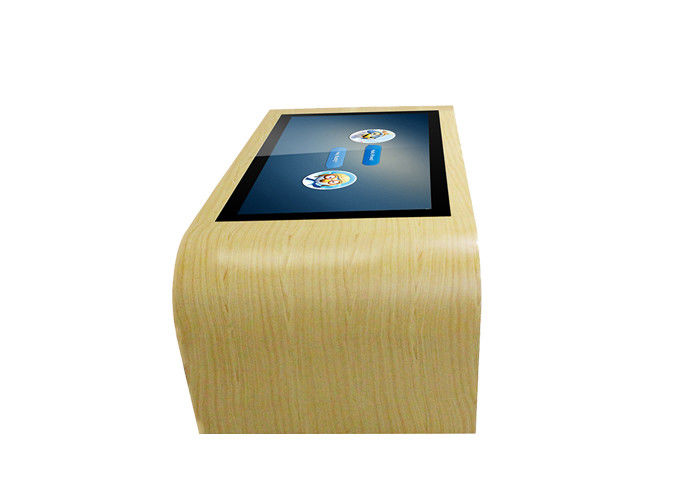

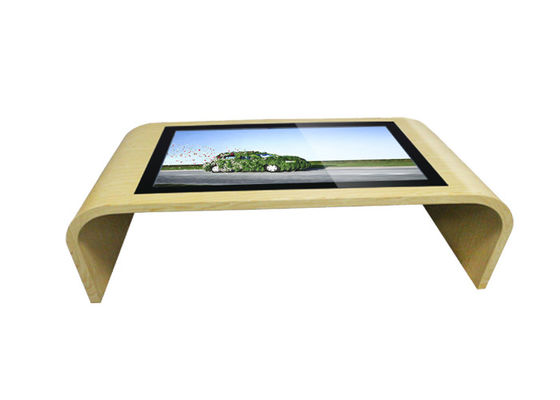

| Keywords: | Touch Screen Table / All-In-One Touch Screen Coffee Table |
the waterproof construction of our touch tables making them ideal for use in public spaces, outdoor environments, and more scenes. This means that you can display your interactive content at events, festivals, or in other outdoor settings without worrying about damage from rain or spills. Additionally, the durability of our touch tables means that they will continue to perform at a high level even with frequent usage.
Another key aspect of our touch tables is their versatility when it comes to customization. We offer a wide range of options for color, shape, and size, making it easy to find the perfect match for your business or organization's branding and space requirements.
- Available in 43" screen size
- Custom screen sizes available upon request
- Custom designs and leg lengths available upon request
- Full HD or 4K display
- 10-point PCAP touch
- Tempered safety glass panel
- Integrated Windows or Android
- Connect your own media player or PC
| LCD Panel | Screen Size | 43 Inch |
| Display area | 943.2mm(H) X 531.4mm(V) | |
| Aspect Ratio | 16:09 | |
| LCD Type | TFT-LCD (WLED Backlight) | |
| Max Resolution | 1920 X 1080 / 3840 X 2160 | |
| Display color | 16.7M | |
| Brightness | 350 cd/㎡ | |
| Contrast Ratio | 4000: 1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| The lifetime of screen panel | > 60,000hours |
| Touch screen parameter | Touch style | Projected Capacitive Touch screen |
| Touchpoints | 10 points | |
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
| Response speed | < 15ms | |
| Accuracy of touch | More than 90% of the touch area ±2mm | |
| Touch ways | sensitive to pens, prostheses, fingers, brushes and any non-transparent object | |
| Output format | The coordinate output | |
| Clicks time | Unlimited | |
| The smallest touch size | 5mm | |
| Long resistance | Yes available | |
| Touch Interfaces | USB | |
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | |
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH |
| Internal Android Media Player PCB board Configuration |
Processor | Cortex-A55 Quad-core processor, 1.8Ghz |
| RAM | 2GB | |
| ROM | 16GB | |
| OS | Android 11.0 version | |
| Built-in wifi | 150Mbps 802.11n wifi integrate | |
| Built-in Mini PC(Optional) | CPU | Intel 6th Gen I5-6200U processor, |
| RAM | 8GB | |
| Storage volume | 120GB SSD | |
| OS | Windows 10 / 11 | |
| Built-in wifi | 150Mbps 802.11n wifi integate | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
| HDMI | 1 | |
| USB | 2 USB 2.0 PORTS | |
| Power | Audio system | Built-in 10 W X 2 Speakers |
| Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 230w | |
| Standby power loss | < 1W |
| Features | Operating temperature | 0℃ ~ 50℃ |
| Storage temperature | below20℃ ~ +60℃ | |
| Enclosure | Front panel | 4 mm thick protective glass |
| Frame color | white / Black / Silver option | |
| Installation type | Floor standing | |
| Application | Indoor | |
| Touch Table | Dimension of machine | Customization |
