Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-LD320FHB |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Application: | Outdoor | Color: | Request / Custom, White / Black / Siliver |
|---|---|---|---|
| Panel Size: | 32 Inch | Place Of Origin: | Guangdong, China |
| Water And Dust Proof: | IP55 | Type: | LCD |
| Supplier Type: | Original Manufacturer | Response Time: | <5ms |
| Brightness: | >4000 | Luminance: | 400cdm2 |
| Keywords: | Digital Advertising Signs / Digital Advertising Signs Outdoor |
ZXTLCD outdoor digital signage allows for easy modification of advertising content. Instead of static text, consumers are exposed to videos, animations, and various advertising formats, which can constantly refresh the content and increase consumer demand.

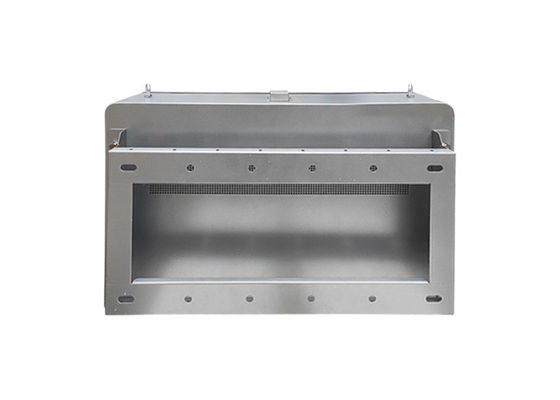

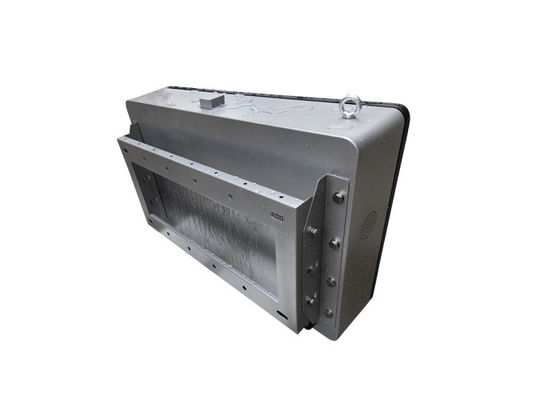

| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 32 inch |
| Display area | 697mm(H) X 392mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1080 X 1920 | |
| Display color | 16.7M | |
| Brightness | 1000 cd/㎡ ~ 1500cd/㎡ | |
| Contrast Ratio | 2000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
It also provides touch-screen query and self-service functionalities for customers who require them. In certain special applications, customization of software and hardware enables the implementation of complex additional features, such as integrating with public transportation systems to display bus routes and vehicle information.
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |

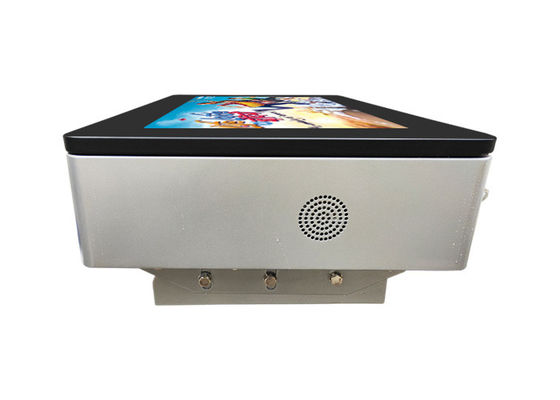

| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
Key Features:
☑ High-transparency tempered glass for scratch, explosion, and impact resistance, providing all-around screen protection.
☑ High-intensity backlighting for visibility in bright conditions, with a full HD screen equipped with intelligent light sensing and color calibration for automatic brightness adjustment and color correction.
☑ Utilizes natural airflow for heat dissipation, resulting in low power consumption, high efficiency, and energy savings.
☑ Meets IP65 protection standards with features like waterproof troughs and dust filters, and the base incorporates an internal locking anti-theft design.
☑ Supports network deployment via Ethernet, Wi-Fi, 4G, or 5G, allowing convenient cloud-based deployment and cost savings.
☑ The system enables centralized management through network remote control, offering functions such as remote power on/off, remote settings, and remote monitoring.
☑ The playback software supports multiple content formats, production methods, playback modes, and grouping settings.
