Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-LD430OUD |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Application: | Outdoor | Type: | LCD |
|---|---|---|---|
| Supplier Type: | Original Manufacturer, ODM, OEM | Place Of Origin: | Guangdong, China |
| Response Time: | 6ms | Service Life: | 60000 Hours |
| Installation Type: | Portable | IP Rating: | IP65 |
| View Angle（H/V）: | 178 | Input Voltage: | AC100V~240V |
| Keywords: | Outdoor Capacitive Touch Lcd Display / Outdoor Digital Signs For Business Near Me |

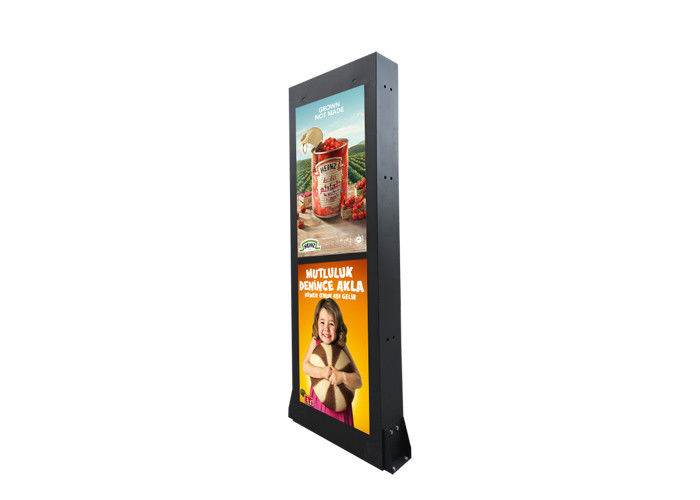

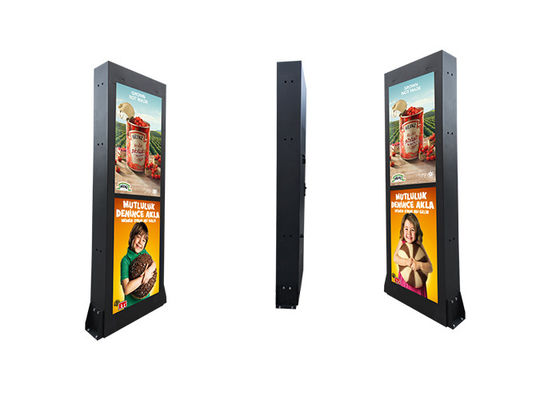

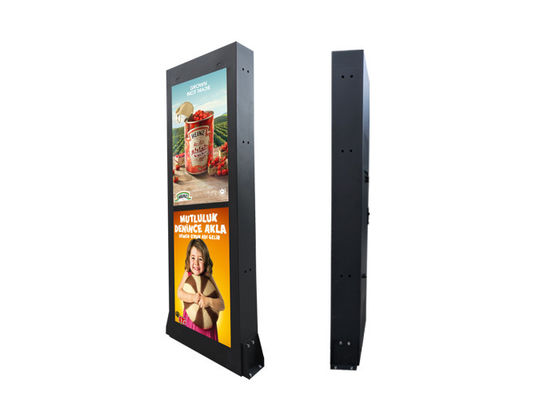

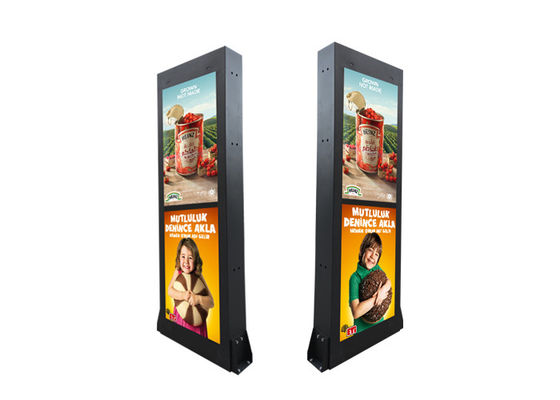

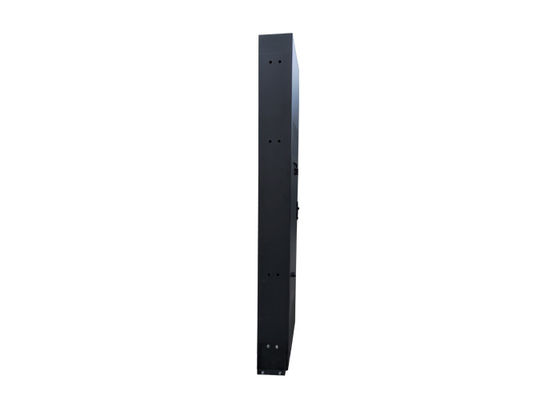

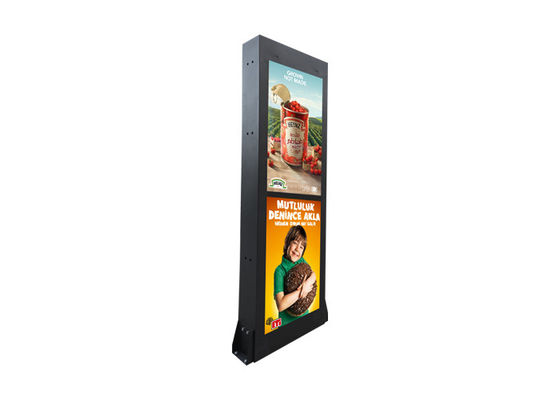

ZXTLCD Outdoor Digital Signage Product Features:
Wide Temperature Range: -20℃ to 70℃
ZXTLCD Outdoor Digital Signage is designed for outdoor environments and interactive commercial displays. With a 6-layer PCB circuit board design and optimized layout, the size is controlled at 120*75mm, saving valuable space. To adapt to complex usage environments, it is made using immersion gold technology with corrosion-resistant gold fingers on the core board, ensuring stable operation 24/7 even in temperatures ranging from -20℃ to 70℃.
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 43 inch |
| Display area | 530mm(H) X 938mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1080 X 1920 | |
| Display color | 16.7M | |
| Brightness | 1500 cd/㎡ ~ 2000cd/㎡ | |
| Contrast Ratio | 1000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz |
Cost-Effective Processor
Equipped with a low-power quad-core processor and Android 7.1 operating system, it offers high performance at an excellent cost-to-performance ratio. The processor operates at a maximum frequency of 1.2GHz.
HD Display Output
Supports HDMI/LVDS display output, with a maximum resolution of 1080P for both HDMI and LVDS screens and decoding.
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month |
Peripheral and Network Communication
All peripheral interfaces are designed with surge protection and anti-static measures. It supports 1x 100Mbps Ethernet with auto-negotiation, built-in Wi-Fi, and optional Bluetooth connectivity.
Extensive Customization Support
Offers deep customization options for both software and hardware, including CPU, motherboard, and memory specifications. It supports popular operating systems such as Windows 10 or 11, Android 11, and can run all software compatible with the corresponding system.
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
