Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-LD550LA |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| View Angle（H/V）: | 178°X178° | Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Subway, Restaurant & Hotel Supplies |
|---|---|---|---|
| Refresh Rate: | 60Hz | Power Supply: | 110V~240V AC |
| Logo: | With Customer's Logo | Panel Life: | About 50000 Hours |
| Brand Name: | ZXTLCD / OEM | Max Resolution: | 1920 X 1080 / 3840 X 2160 |
| Warranty: | 1-3 Years | Color: | Full Color |
| Keywords: | Outdoor Digital Notice Board |

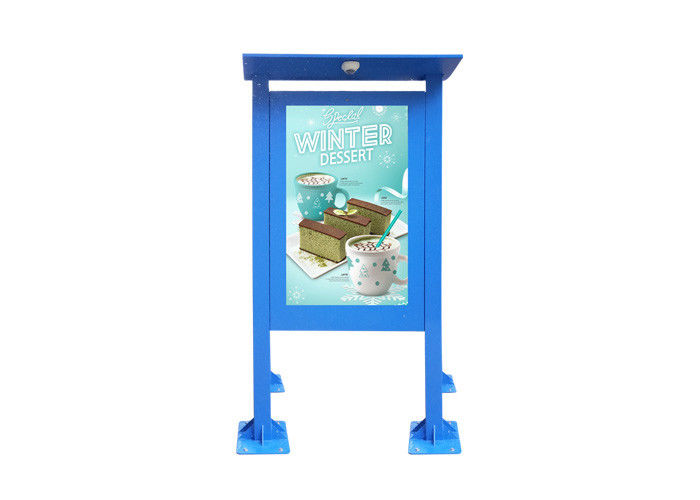

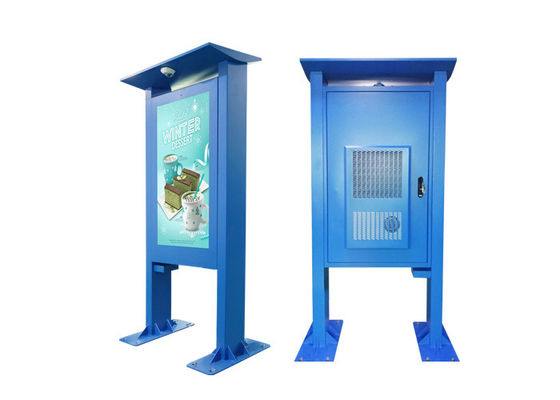

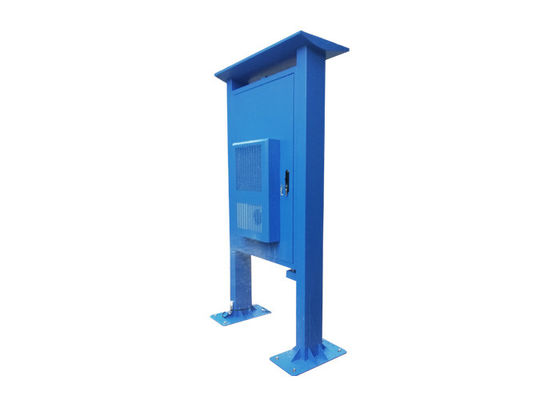

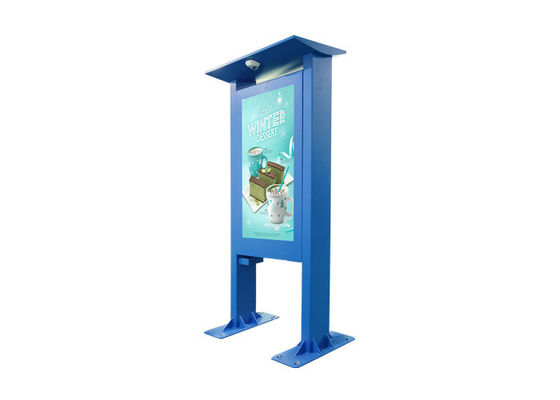

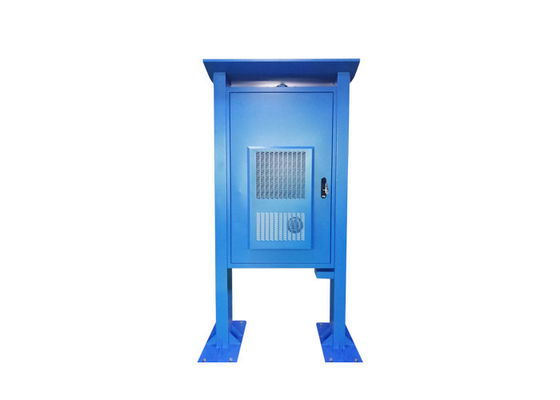

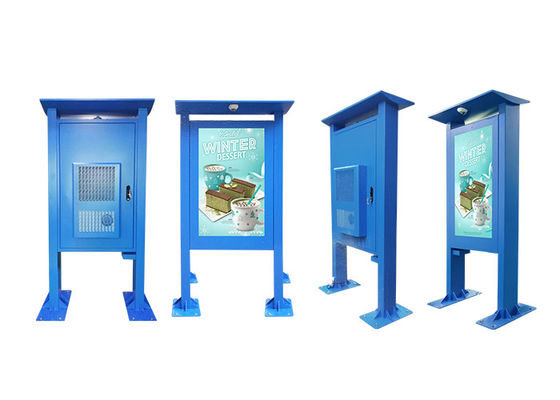

High-Brightness LCD Screen with Next-Generation LED Backlight Technology, equipped with an embedded information distribution system, allows the digital signage to display images and videos clearly even in bright light. Therefore, outdoor LCD screen digital signage gradually replaces traditional lightbox advertisements, especially suitable for malls, commercial streets, subway stations, bus platforms, government agencies, schools, upscale residential areas, parks, tourist attractions, etc.
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 1500 cd/㎡ ~ 2000cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz |
1: The world's first adoption of intelligent variable-frequency air conditioning temperature control, constant temperature, energy-saving, and long lifespan on wide voltage startup;
2: All-weather, high resolution, high contrast, high brightness, visible in strong light, greatly enhancing the sense of image hierarchy. Even under scorching sun in the summer, it does not affect your visual experience at all;
3: Automatic light-sensing control, automatically adjusts brightness according to the surrounding environment, energy-saving and environmentally friendly, particularly suitable for working in harsh environments (maximizes energy efficiency);
4: Built-in fixed-frequency air conditioning temperature control, capable of working normally under outdoor LCD temperature of 40°C to 55°C, even under direct sunlight;
5: Pioneering new heat dissipation mode for outdoor LCD screens, featuring heat exchange and excellent performance in energy efficiency, as well as natural cooling system; stable and reliable performance;
6: Outdoor protection level reaches P5, waterproof, dustproof, temperature-proof, corrosion-proof, and riot-proof, suitable for outdoor use in harsh environments;
7: Remote content publishing and management enabled through wireless networks such as 3G/Wi-Fi and wired RJ45 networks;
8: Supports various multimedia file formats such as MPEG-1/2/4, MP3, AVI, DAT, PPT, etc.;
9: The entire machine adopts high integration modular design, standardized design, clear indication of operational status, enabling quick maintenance;
10: Long lifespan, continuous operation for 7*24 hours, reaching over 60,000 hours;
11: Optional features include touchscreen, built-in PC, and security monitoring system;
12: Intelligent power on/off control, intelligent monitoring system, capable of monitoring the internal environmental operation status (temperature, humidity, vibration) at any time;
13: Installation method: using poured cement base, embedding 8 M20 bolts, closely connected with the machine's base, able to withstand level 10 typhoons;
14: Customizable solutions for various outdoor information distribution systems according to industry applications.
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month |
Multimedia Playback:
Supports almost all video, image, and audio formats.
Supports high-definition video decoding.
Plays file videos and streaming media videos.
Weather Information:
Displays temperature and weather logos.
Automatically updates weather data.
Simply set the city.
Terminal Management:
Supports almost all video, image, and audio formats.
Supports file videos and streaming media videos.
Supports high-definition video decoding.
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
Playback Strategies:
Provides carousel/interstitial/on-demand programs.
Customizable playback schedule.
Flexible settings for start time, end time, frequency, etc.
Scheduled Power On/Off:
Can remember time and date.
Automatically turns on/off according to specified time.
Up to 5 time periods for automatic power on/off per day.
Recording and Statistics:
Can track the number of times and duration of a program's playback.
Can track terminal's power-on time and frequency.
View current and historical playback records of the terminal.
Split Screen Display:
Supports arbitrary screen division.
Video zone/image zone/subtitle zone/date zone/weather zone.
Supports landscape and portrait display.
Terminal Monitoring:
Can view terminal's network connection status records.
Records time abnormalities/network abnormalities/abnormal shutdowns.
Provides real-time screenshot function of terminal playback.
Automatic Download:
When there are program updates, the terminal automatically downloads content.
Can set start and end times for downloading.
Can manually stop downloading before completion.
Built-in Wireless Wi-Fi:
Built-in wireless Wi-Fi, easily access the internet.
