Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-LD550OUK |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Guangdong, China | Function: | SDK |
|---|---|---|---|
| Panel Type: | Original LG / BOE Panel | Display Area: | Display Area: |
| Brightness: | 2000-2500cd Per Square Meter, 2500cd/m2 | Response Time: | 6MS |
| Display Color: | 16.7M | Operating System: | Android / Windows (optional) |
| Warranty: | 1-3 Years | After-sales Service Provided: | Online Support, Field Installation, Commissioning |
| Keywords: | Outdoor LCD Digital Sign Board |

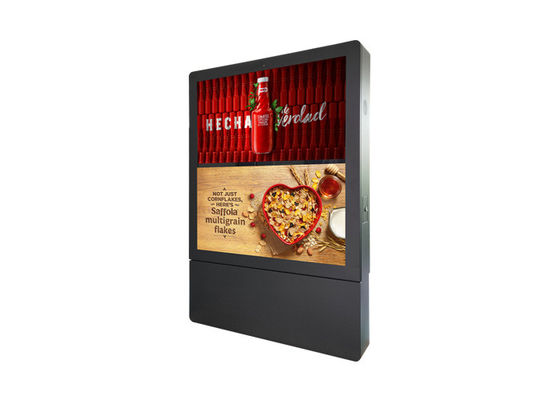

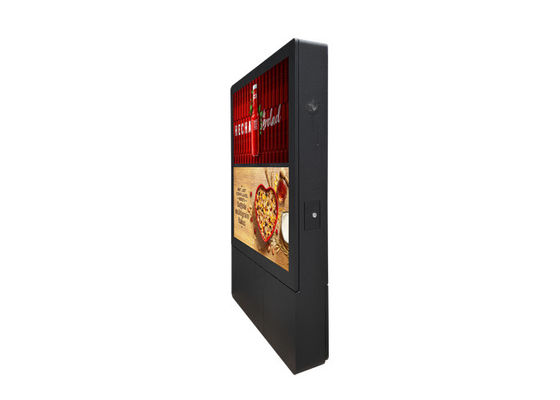

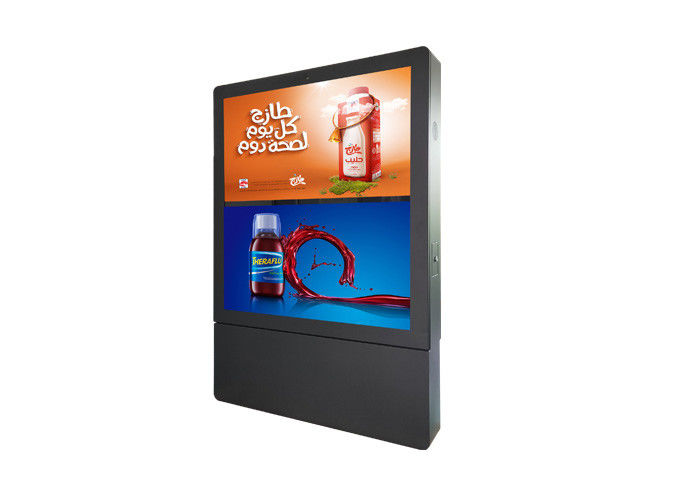

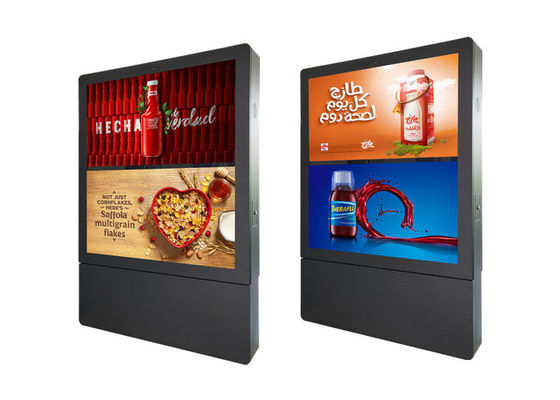

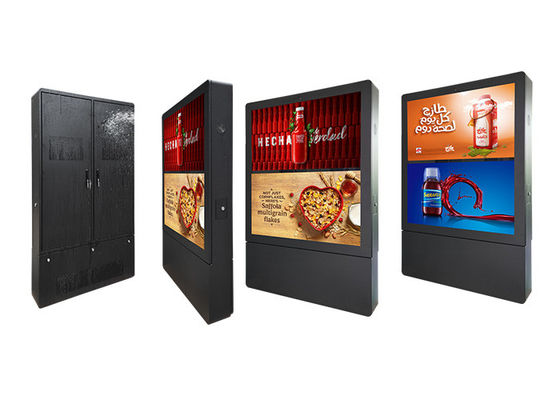

With the construction of smart cities, outdoor advertising is transitioning from the era of traditional posters to the era of intelligent advertising. ZXTLCD Outdoor Digital Signage stands out with its advantages in various fields such as shopping malls, squares, scenic spots, schools, parks, communities, and bus stations.
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 55 inch |
| Display area | 1214mm(H) X 684mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 1500 cd/㎡ ~ 2000cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz |
Outdoor Protection: The outdoor signage achieves an IP65 protection level, meeting customer requirements for waterproof, dustproof, explosion-proof, and anti-theft design.
Touchscreen Interactivity: It can be used as a menu board, news bulletin, or traffic information kiosk, providing real-time information and interactive features through its sensitive touchscreen. Users can easily find the desired information and even make direct transactions.
Remote Control: Multiple outdoor signage units can be connected to a cloud control panel, enabling one-click content replacement, power on/off, and scheduled playback settings.
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month |
Two Cooling Methods: The signage supports fan cooling and air conditioning cooling, allowing for the selection of different cooling methods based on the temperature of different regions. It ensures normal operation in environments ranging from -40℃ to 55℃, making it resistant to harsh cold weather and rain.
Brightness Adjustment: The outdoor signage can automatically adjust its brightness. It maintains high visibility under sunlight during the day and provides softer lighting with automatic brightness adjustment at night.
UV Protection: Inadequate UV protection can cause damage or even render the LCD screen unusable. ZXTLCD Outdoor Digital Signage has a UV protection rate of up to 99%, ensuring better protection for the LCD screen.
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
Furthermore, ZXTLCD's devices meet professional quality requirements in areas such as lightning protection, load-bearing capacity, cable routing, and thermal design. The company is committed to providing customers with the most satisfactory services.
If you are interested in the product or have other questions, please feel free to contact us Via WhatsApp.
