Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-OW430BW |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case,carton,flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Aspect Ratio: | 16:9(W:H) | Material: | Metal Case + Toughened Glass Panel |
|---|---|---|---|
| Style: | Wall Mounted | Control Method: | IR Controller, Android Windows OS |
| Application: | Outdoor | Panel Size: | 32" ~86" |
| Media Available: | Datasheet, Photo, EDA/CAD Models | Keywords: | Wall Tv Display; Seamless Lcd Video Wall |

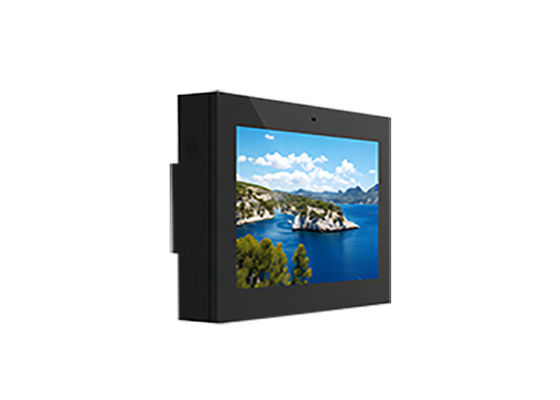

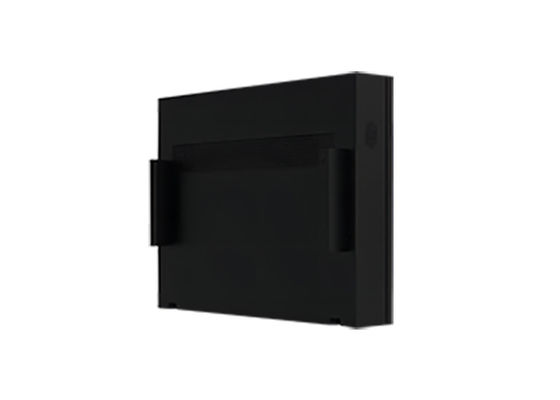

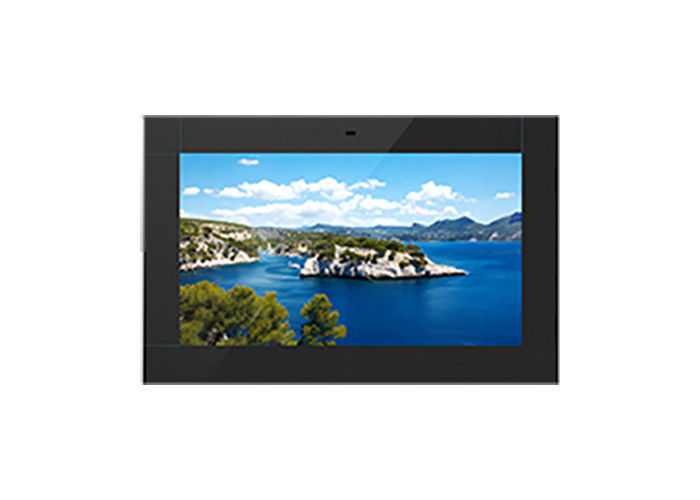

Big size smart 43 inch lcd video wall tv display/outdoor waterproof seamless lcd video wall
ZXTLCD Outdoor Digital Signage: Dynamic Advertising Solution
ZXTLCD outdoor Digital Signage appears to have several features and specifications that make it suitable for outdoor use in various environments. Here's a summary of the key points of the product:
IP65 Waterproof Protection: The signage has a high level of waterproof protection, preventing elements like rainwater, mosquitoes, and gravel from entering the machine.
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 43 inch |
| Display area | 530mm(H) X 938mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1080 X 1920 | |
| Display color | 16.7M | |
| Brightness | 1500 cd/㎡ ~ 2000cd/㎡ | |
| Contrast Ratio | 1000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz |
High Brightness: The standard brightness of the display is 1500-2500cd/㎡, ensuring visibility even in strong light conditions. Custom higher brightness options may be available.
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month |
High Definition Picture Quality: The screen resolution is up to 1920x1080, providing high-definition picture quality. Custom higher resolutions may be possible.
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
