Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-OF666SD |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case,carton,flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Aspect Ratio: | 16:9(W:H) | Video: | AVI/MOV/MP4/5GP/MPG/VOB/DAT/TS |
|---|---|---|---|
| Style: | Floor Standing | Material: | Aluminum Alloy,tempered Glass |
| Panel Size: | 32" ~86" | Supplier Type: | Original Manufacturer, ODM, OEM |
| Media Available: | Datasheet, Photo, EDA/CAD Models | Keywords: | Advertising Multimedia; Kiosk Digital Signage |

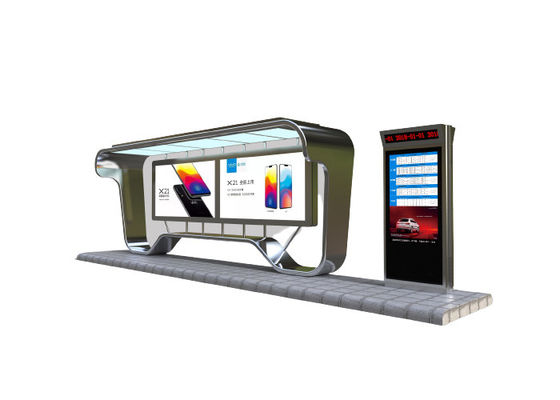

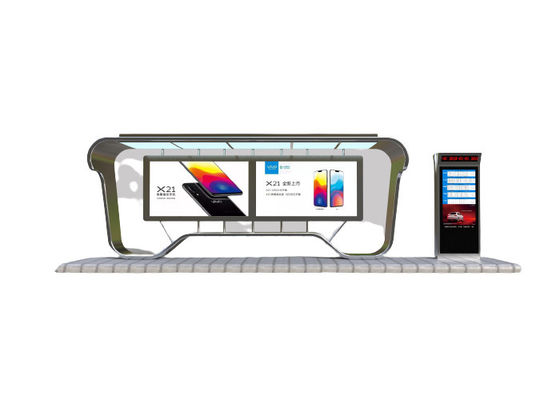

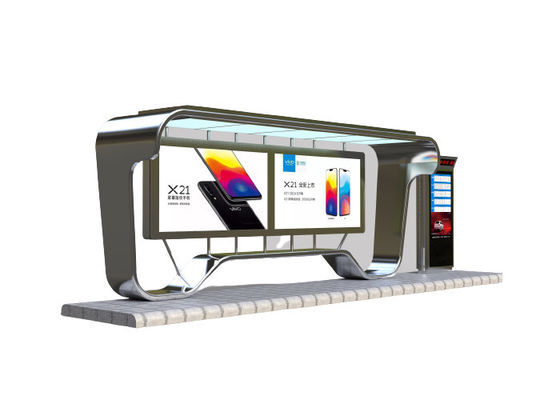

Big Size Display Outdoor Bus Station Advertising Multimedia Lcd Screen In mation Kiosk Digital Signage
Working in high-temperature
This signage solution is specially designed to withstand the harsh weather conditions and features an intelligent temperature control system. Whether it's a hot summer day or an unforgiving heatwave, the internal air conditioning of ZXTLCD outdoor digital signage keeps it cool and ensures optimal performance. Its IP65 outdoor protection rating guarantees dust and water resistance. No more worries about sand getting into the machine and causing damage, as its excellent protection capabilities ensure uninterrupted operation for a long time.
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 65 inch |
| Display area | 1429mm(H) X 804mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1920X 1080 | |
| Display color | 16.7M | |
| Brightness | 2500cd/㎡~3000 cd/㎡ | |
| Contrast Ratio | 3000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz |
Customizable software and hardware
Another great feature of ZXTLCD outdoor digital signage is its versatility. With customizable software and hardware options, you can tailor this solution to your specific needs. Choose from a range of CPU, motherboard, and memory specifications, and select your preferred operating system, including Windows 10 or 11, and Android 11. Create a powerful platform for digital signage that perfectly suits your business.
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month |
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
