Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC/ERP Energy Label |
| Model Number: | ZXTLCD-OF860WP |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case,carton,flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Brand Name: | ZXTLCD | Max Resolution: | 4K |
|---|---|---|---|
| WaterProof: | IP65 | MOQ: | 1pc |
| Material: | Aluminum Alloy,tempered Glass | Color: | White |
| Panel Size: | 32" ~86" | Keywords: | Digital Signage; Digital Display Board |

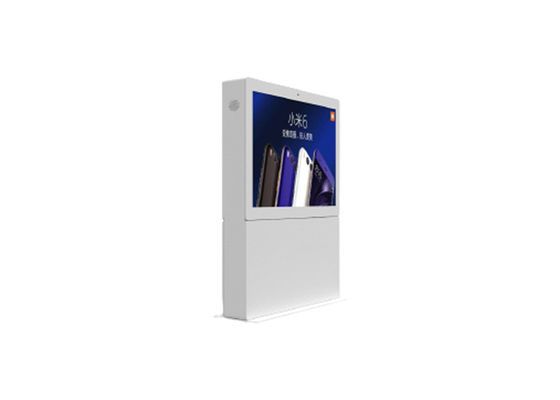

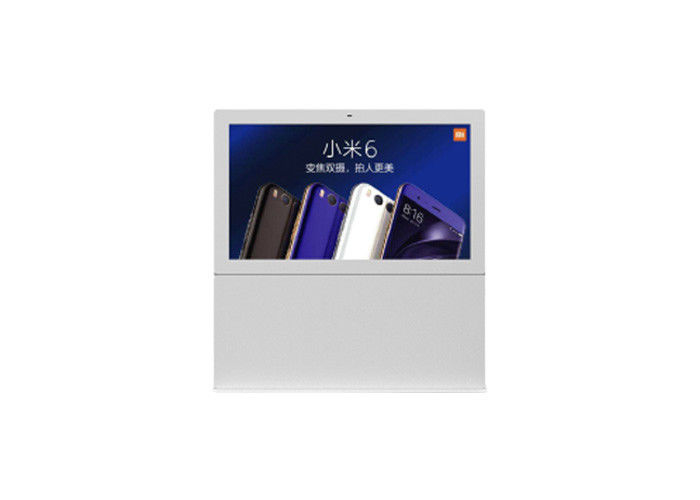

IP65 Outdoor LCD Digital Signage For Business Outdoor Electronic Signs Digital Display Board Screen
Unleash the Power of ZXTLCD Outdoor Digital Signage: Elevate Your Advertising Impact in Every Outdoor Setting
Transform Open-Air Commercial Streets and Shopping Plazas:
Ignite your advertising revenue potential with ZXTLCD Outdoor Digital Signage. With its high brightness that rivals the sun, 1080 resolution, expansive 178° wide viewing angle, and vibrant LCD screen, it captivates the attention of passersby like never before. It can operating seamlessly 24/7. At night, its automatic brightness adjustment ensures a captivating display without overpowering viewers. ZXTLCD Outdoor Digital Signage can maximize your advertising reach, amplify your brand's presence, and unlock a wealth of advertising income.

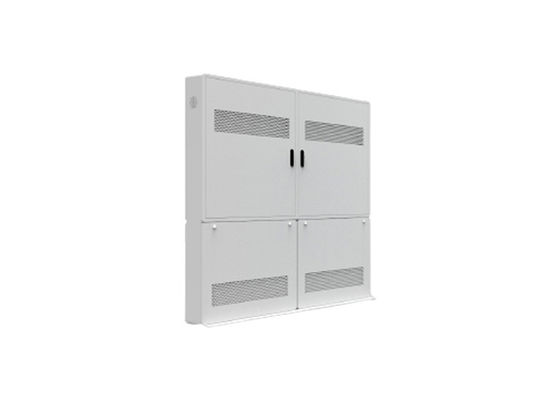

| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 86 inch |
| Display area | 1860mm(H) X 1046mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 3840 X 2160 | |
| Display color | 16.7M | |
| Brightness | 2500cd/㎡~3000 cd/㎡ | |
| Contrast Ratio | 4000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
Capture Attention in Transportation Hubs:
Dazzle passengers in airport terminals, train stations, bus stops, and ferry terminals with ZXTLCD Outdoor Digital Signage. Provide vital information, real-time schedules, routes, and updates to travelers awaiting their next journey. When people eagerly seeking flight information, advertisings in the same screen can provide an astonishing publicity effect. The signage's impeccable picture quality guarantees your advertisements are showcased in the most captivating way, leaving an indelible impression on viewers.
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 500W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
