Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM133SMT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 13.3 Inch | Aspect Ratio: | 16：9； 16：10 |
|---|---|---|---|
| Brightness: | 220 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Highlight: | 13.3 Inch Embedded Monitor,Retail Systems Embedded Monitor,Interactive Displays Embedded Monitor |
||
In the heart of large data server centers, an efficient and precise user interface is key to ensuring the flow and management of information. When facing vast data servers, the 13.3-inch embedded industrial control all-in-one touch display is essential for promptly handling various emergencies. As the 'brain' of the site, its characteristics of easy operation and convenient maintenance are making it a new favorite in data centers.

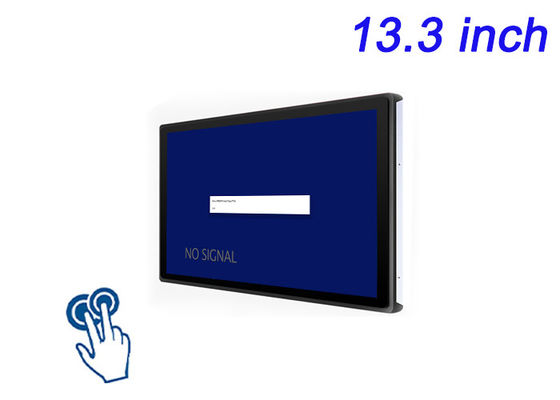

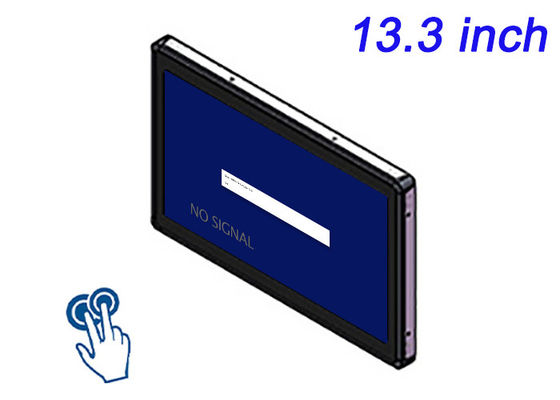

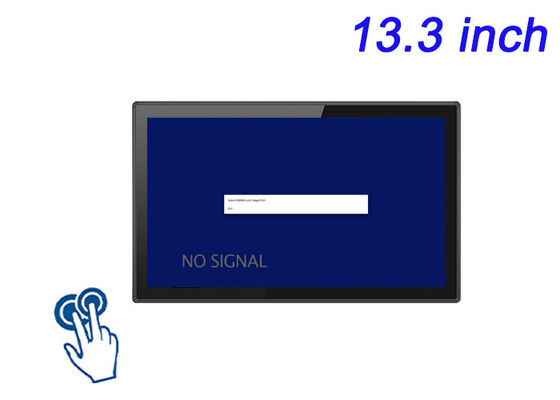

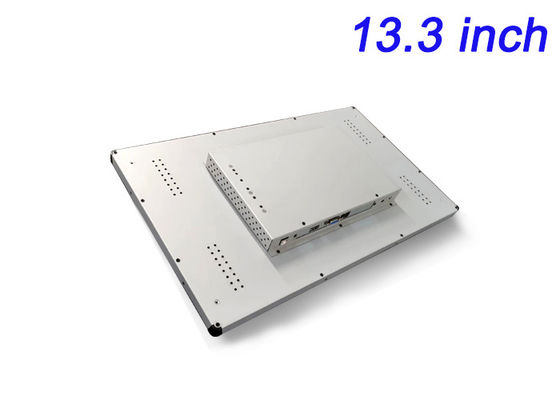

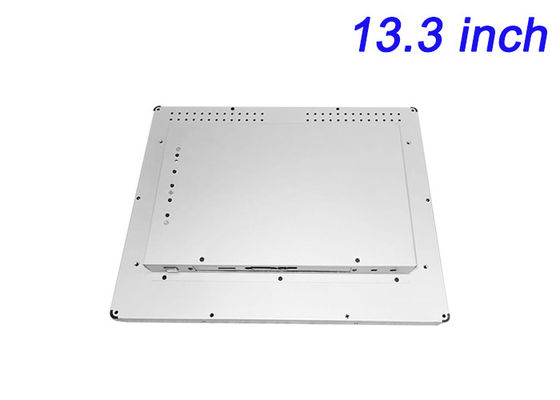

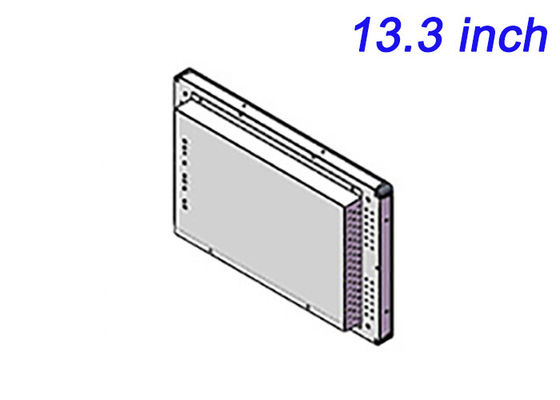

| Embedded 13.3-Inch Capacitive Touchscreen | ||||
| LCD Panel Parameters | Screen Size | 13.3 Inch | ||
| Display Area | 294 mm.(Height) X 165.5(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 262K, 45% NTSC | |||
| Brightness | 220cd/m² | |||
| Contrast Ratio | 800 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 85°/85°/85°/85° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Audio Parameters (External Speaker Option) |
Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Onboard Interface | HDMI Input | 1 | ||
| VGA Input | 1 | |||
| DVI Input | 1 | |||
| USB Type B or any desired USB Type | 1 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 25 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Accessories | Power Cord Length | 1.5m | ||
| HDMI Cable Length | 2m | |||
| USB-A to USB-B Cable Length | 1.5m | |||
| Stereo Speaker Size with Connector | 99*45*20mm | |||
| Stereo Speaker Length | 1.5m | |||
| Package Size | Device Dimensions | 339 X 219 X 51.7mm. | ||
| Net Weight | 3 Kilogram | |||
| Package Size | 38.9 X 27.4 X 11Centimeter | |||
| Gross Package Weight per Unit | 4 Kilogram | |||
Stepping into the bustling area of the data center, this 13.3-inch embedded industrial control all-in-one touch display, with its oversized touchscreen, makes complex data monitoring and operations intuitive and simple. Whether adjusting server configurations or monitoring data flow in real-time, everything can be accomplished with a light touch, greatly enhancing work efficiency and accuracy. Its embedded design saves space, perfectly integrating into the data center environment, showcasing a harmonious unity of technology and aesthetics.
In a data center that operates 24 hours a day without interruption, stability and durability are the primary considerations. The 13.3-inch embedded industrial control touchscreen all-in-one machine uses high-quality industrial-grade components to ensure stable operation even in extreme working environments, reducing failure rates and ensuring the safety and efficiency of the data center. Its powerful processing capability and optimized cooling system allow for smoother data processing, providing continuous power support for the data center.
The 13.3-inch embedded industrial control all-in-one machine touchscreen display, with its excellent touch experience, stable and efficient performance, and compact and aesthetically pleasing design, is becoming an indispensable part of large data server centers. It not only simplifies the operation process and enhances work efficiency, but also represents a solid step towards the intelligent and efficient evolution of data centers. Choosing it means opting for a smarter and more reliable future data center solution.
