Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM156SM |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Highlight: | Embedded Monitor for Payment Systems,Embedded Monitor for Kiosks,15.6 Inch Embedded Monitor |
||

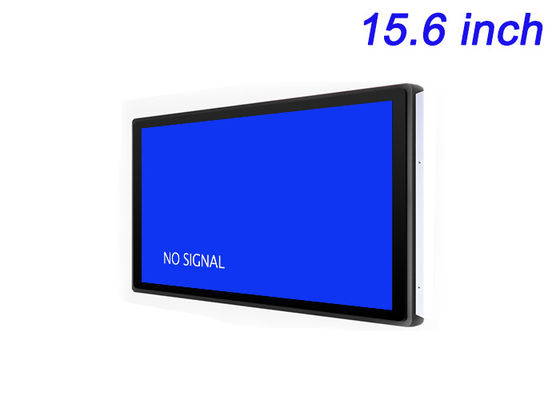

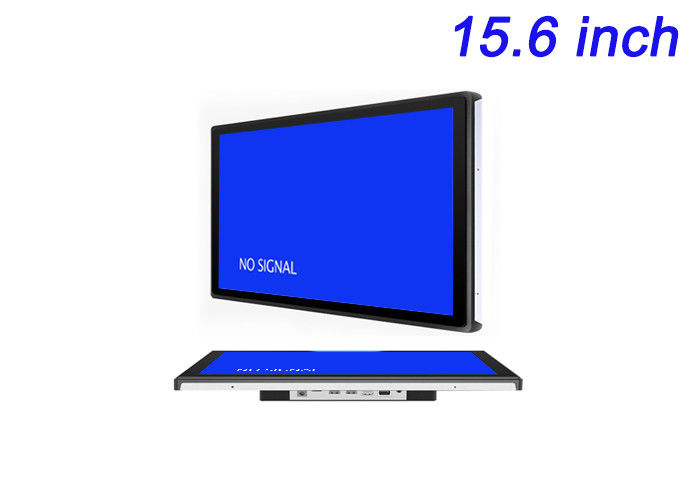

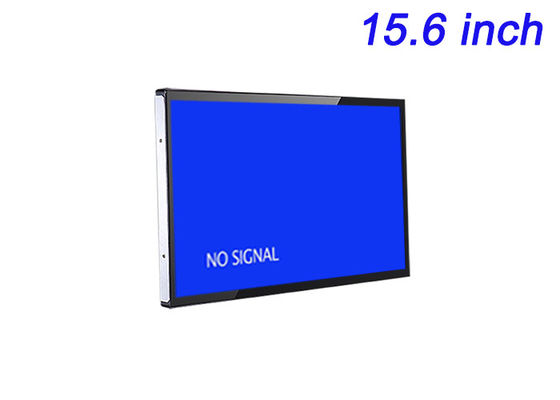

In the modern manufacturing industry, CNC equipment has become an important tool for improving production efficiency and product quality. As one of the core components of CNC equipment, the performance of the display panel directly affects the convenience of operation and the accuracy of data. The 15.6-inch embedded industrial control all-in-one machine, with its stable display performance and robust design, has become the ideal solution for display panels of CNC equipment.

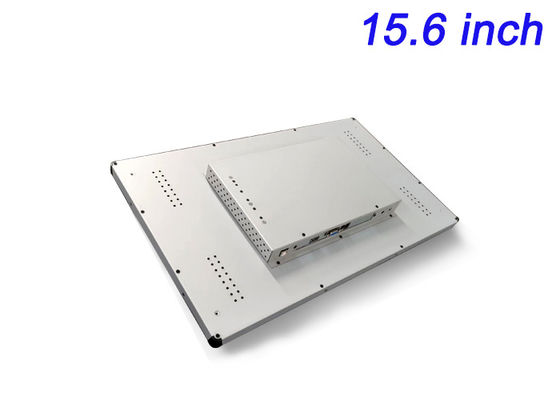

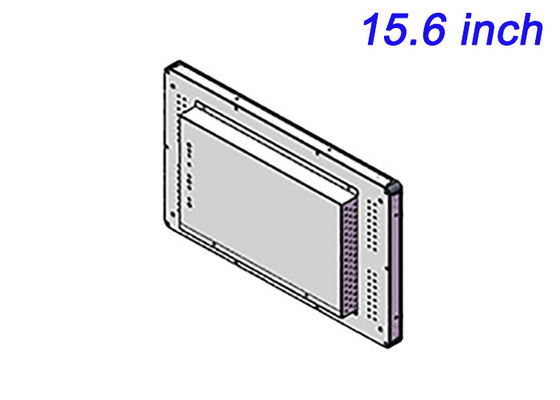

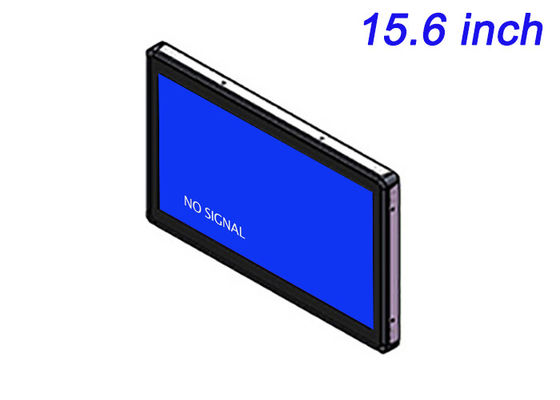

During the operation of CNC equipment, it is crucial to clearly and accurately display various data and status information. The 15.6-inch embedded industrial control all-in-one machine, with its high-resolution LCD screen, can clearly display the working parameters, alarm information, and other necessary operational instructions of the equipment. This all-in-one machine features an embedded installation design that not only saves space but also integrates closely with the equipment casing, providing better protection performance, suitable for various industrial environments.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.2 mm.(Height) X 193.50(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio Parameters (External Speaker Option) |
Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Onboard Interface | HDMI Input | 1 | ||
| VGA Input | 1 | |||
| DVI Input | 1 | |||
| USB Type B or any desired USB Type | 1 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Accessories | Power Cord Length | 1.5m | ||
| HDMI Cable Length | 2m | |||
| USB-A to USB-B Cable Length | 1.5m | |||
| Stereo Speaker Size with Connector | 99*45*20mm | |||
| Stereo Speaker Length | 1.5m | |||
| Package Size | Device Dimensions | 389 X 249 X 51.7mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 44.2 X 30 X 10.5Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
For CNC equipment, the visual display of data helps operators promptly grasp the operating conditions of the equipment and make corresponding adjustments. The 15.6-inch industrial control data display panel not only updates various indicators of the equipment in real-time but also presents the data intuitively through charts and other forms, making it easy to understand. In addition, the panel supports multiple data interfaces, facilitating data exchange with other control systems or management systems, further enhancing the efficiency of equipment management.
The 15.6-inch embedded industrial control all-in-one machine, with its outstanding display effect and reliable performance, has become the preferred solution among display panels for CNC equipment. Whether for improving production efficiency or ensuring operational safety, this product demonstrates its exceptional value in the field of industrial automation.
