Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-RM215SM |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight case are option |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 21.5 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
Highlight: | Industrial Dashboards Embedded Monitor,Hospitality Applications Embedded Monitor,21.5-Inch Embedded Monitor |

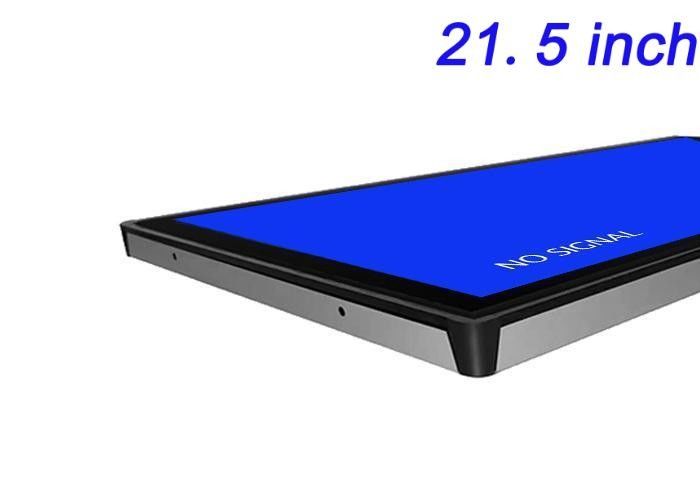

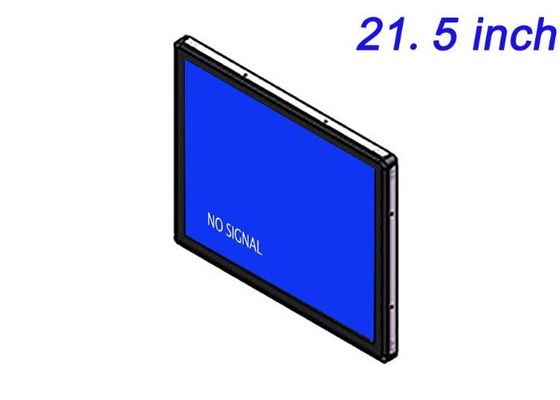

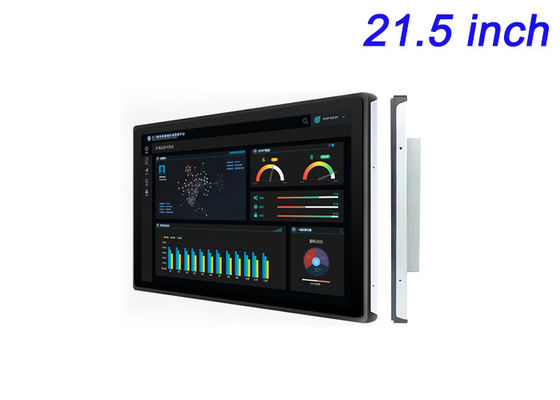

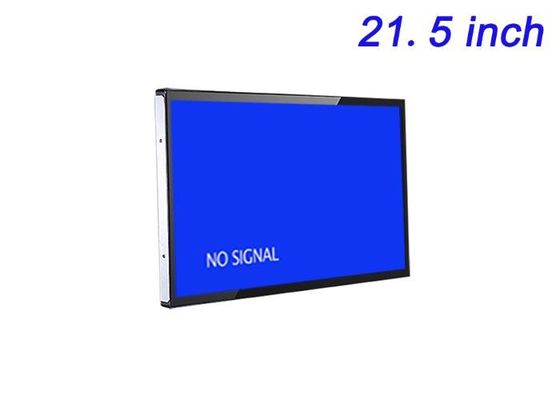

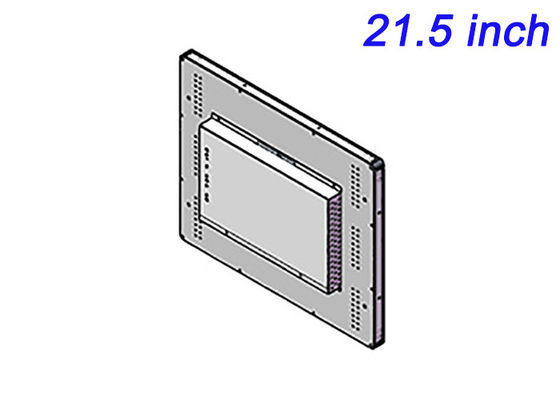

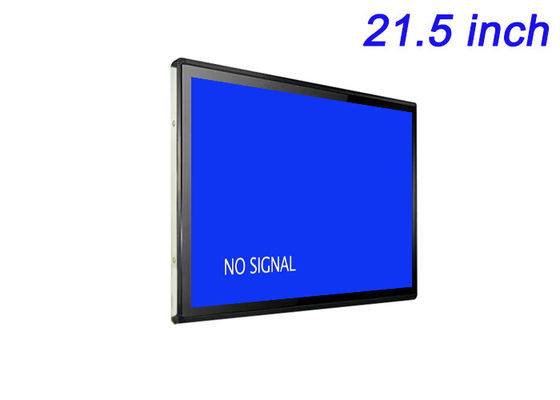

In the pursuit of efficient and stable industrial automation systems, the choice of equipment is crucial. Today, we recommend a star product designed specifically for harsh industrial environments—the 21.5-inch fully enclosed embedded industrial control all-in-one machine, which not only meets various demands of industrial automation with its outstanding performance but also leads the industry with its unique design philosophy.
Designed specifically for industrial automation systems, this 21.5-inch fully enclosed embedded industrial control all-in-one machine effectively resists the intrusion of dust, moisture, and other harsh environmental factors with its compact body and comprehensive sealed design, ensuring stable operation even under extreme conditions. Its 21.5-inch high definition display clearly presents critical data, providing operators with intuitive and accurate visual feedback, aiding in the efficient management of production processes.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.64 mm (Height) X 268.11 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio Parameters (External Speaker Option) |
Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Onboard Interface | HDMI Input | 1 | ||
VGA Input | 1 | |||
DVI Input | 1 | |||
USB Type B or any desired USB Type | 1 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Accessories | Power Cord Length | 1.5m | ||
HDMI Cable Length | 2m | |||
USB-A to USB-B Cable Length | 1.5m | |||
Stereo Speaker Size with Connector | 99*45*20mm | |||
Stereo Speaker Length | 1.5m | |||
Package Size | Device Dimensions | 523 X 315 X 51.7 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 58 X 37.8 X 10.5Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
As a model of an 21.5-inch closed industrial tablet all-in-one machine, this product integrates a high-performance processor, large-capacity memory, and a stable industrial-grade operating system, ensuring smooth handling of complex industrial tasks. The non-touch design reduces the possibility of misoperation, further enhancing the reliability and safety of the equipment. At the same time, its flexible installation methods and convenient maintenance interfaces allow it to easily integrate into industrial automation systems, becoming a powerful assistant in improving production efficiency.
The 21.5-inch fully enclosed embedded industrial control all-in-one machine demonstrates extraordinary strength in the field of industrial automation with its excellent protective performance, outstanding processing capability, and convenient maintenance features. It is not only a solid backbone of industrial automation systems but also an important force in promoting industrial upgrades and enhancing production efficiency. Choosing it means choosing a smarter, more efficient, and reliable future in industrial automation.
