21.5-Inch Android Embedded Touch Screen for Interactive Menus, Corporate Training Displays, Hospitality Solutions, and Public Information Terminals

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-RM215SAT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight case are option
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	21.5 Inch	Aspect Ratio:	16：9
Brightness:	250 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
Andriod OS:	10.0; 11.0	Config:	2+32GB; 4+32GB
Highlight:	Interactive Menus Embedded Screen , 21.5 Inch Embedded Screen , Android Embedded Screen

21.5-Inch Android Touch Embedded Screen for Interactive Menus, Corporate Training Displays, Hospitality Solutions, and Public Information Terminals

Leading a New Trend in Retail: The Outstanding Performance of the 21.5-inch Android All-in-One Machine with Industrial IPS Screen

In today's digital wave sweeping the retail industry, efficient and intelligent self-service terminals have become key to enhancing customer experience and operational efficiency. Among them, the self-service terminal equipped with the 21.5-inch Android all-in-one machine with industrial IPS screen, with its outstanding display effect and stable performance, is gradually becoming the preferred choice in the retail industry.

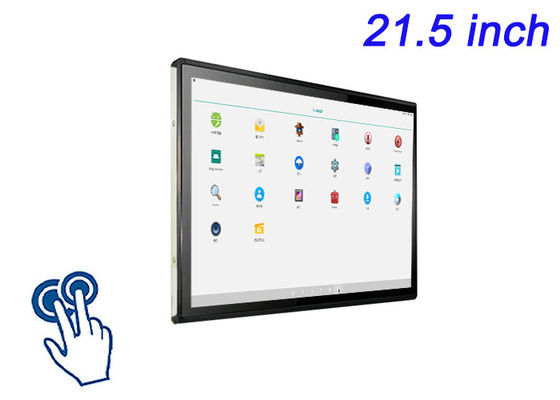

21.5-Inch Android Embedded Touch Screen for Interactive Menus, Corporate Training Displays, Hospitality Solutions, and Public Information Terminals 0

21.5-inch Android All-in-One Industrial IPS Screen: A Visual Feast for Retail Self-Service Terminals

Featuring an 21.5-inch high-definition industrial-grade IPS screen, this Android all-in-one machine not only offers a wide field of view but also ensures precise color reproduction and a broad viewing angle. Whether displaying product details or guiding customer operations, it provides a clear and delicate visual experience, effectively enhancing customer interaction and promoting purchasing decisions.

LCD Panel Parameters	Screen Size	21.5 Inch
	Display Area	476.64 mm (Height) X 268.11 mm (Width)
	Aspect Ratio	16 : 9
	LCD Type	TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7m
	Brightness	250cd/m²
	Contrast Ratio	3000 : 1
	Viewing Angle (Up/Down/Left/Right)	89/89/89/89 (Type)(CR≥10)
	Response Time	6.5ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Capacitive Touchscreen Capacitive Projected
	Touch Points	10 Points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Built-in Speaker	Power	2 x 5W
Configuration PCB Android Built-in (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11.0
	Ethernet	1 x RJ45, Ethernet 1,000 Mbps	1 x RJ45, Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	USB2.0 x 2
			HDMI IN x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 45 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	523 X 315 X 50.7 mm.
	Net Weight	7 Kilogram
	Package Size	58 X 37.8 X 10.5Centimeter
	Gross Package Weight per Unit	7.5 Kilogram

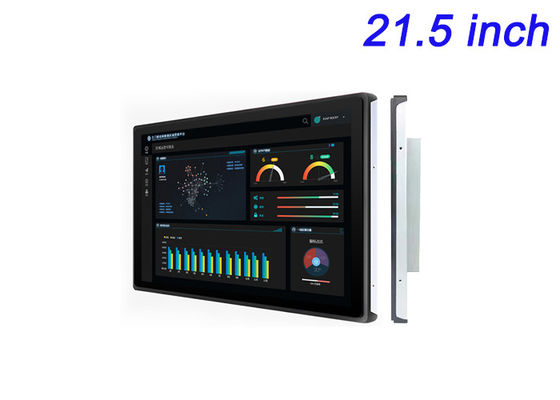

21.5-Inch Android Embedded Touch Screen for Interactive Menus, Corporate Training Displays, Hospitality Solutions, and Public Information Terminals 1

21.5-inch Industrial Screen Android All-in-One Machine: Stable and Efficient, Empowering a New Retail Ecosystem

The Android system designed specifically for industrial applications, combined with powerful hardware configuration, allows this 21.5-inch industrial screen Android all-in-one machine to demonstrate extraordinary stability and efficiency in retail environments. Whether running for long periods or facing complex and variable operational demands, it can handle tasks with ease, providing reliable technical support for retailers and helping to create a new ecosystem of intelligent and self-service shopping.

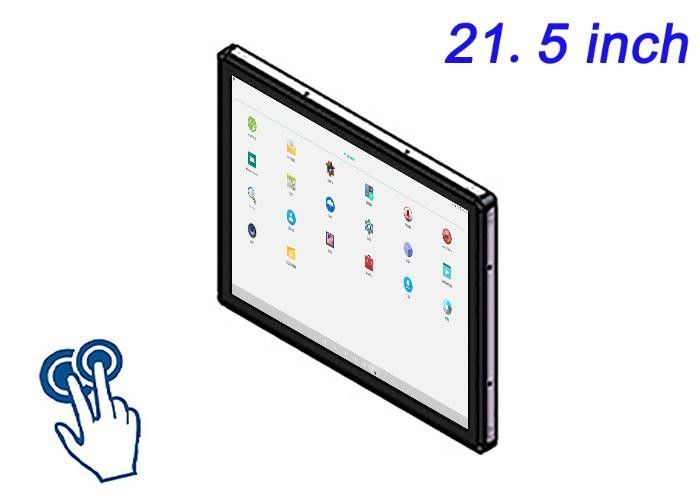

21.5-Inch Android Embedded Touch Screen for Interactive Menus, Corporate Training Displays, Hospitality Solutions, and Public Information Terminals 2

The 21.5-inch Android all-in-one industrial IPS screen, with its outstanding display effect, stable performance, and efficient self-service capabilities, is profoundly changing the landscape of the retail industry. It is not only an important tool for enhancing customer experience but also a strong driving force for retail digital transformation. Choosing it means choosing a smarter and more efficient future retail world.
