Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM236SAT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 23.6 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Andriod OS: | 10.0; 11.0 | Config: | 2+32GB; 4+32GB |
| Highlight: | Medical Diagnostics Embedded Touch Display,CNC Machines Embedded Touch Display,23.6-Inch Embedded Touch Display |
||

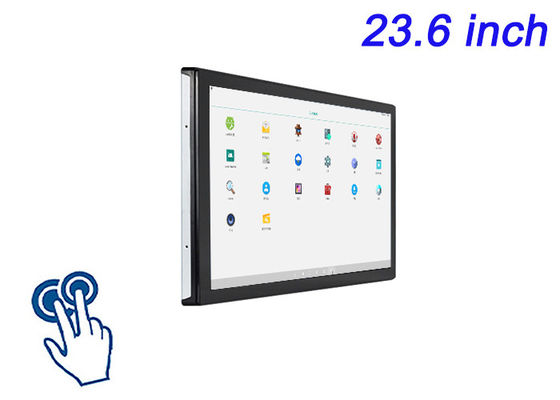

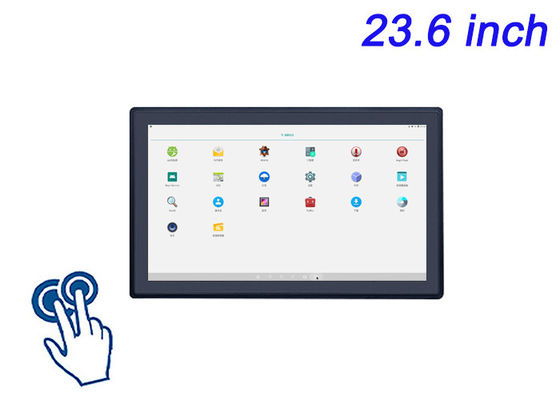

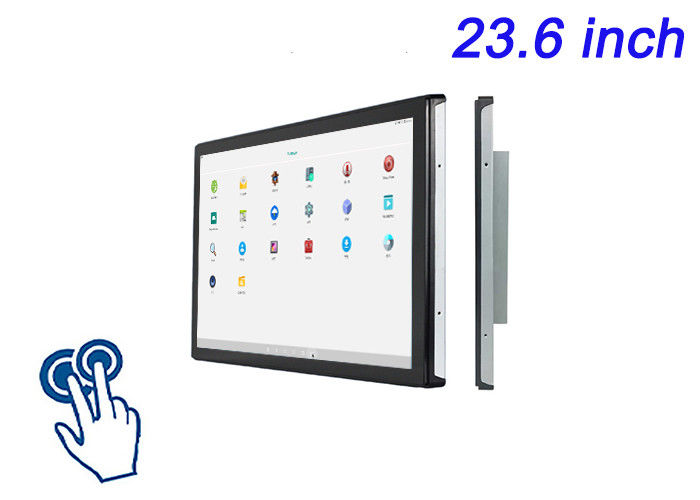

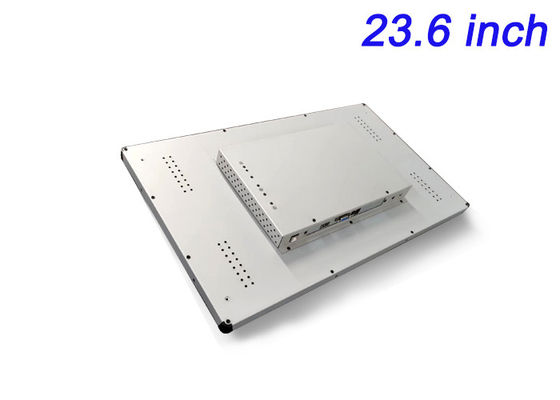

The development of modern agriculture relies on high-tech support, especially in the areas of agricultural mechanization and intelligence. To improve agricultural production efficiency, many modern agricultural machinery devices have begun to incorporate advanced information technology, among which the 23.6-inch embedded industrial touchscreen all-in-one machine, with its outstanding performance and multifunctionality, has become one of the key devices for automation control in agricultural machinery.
In modern agricultural machinery, precise control and efficient management are key factors in enhancing productivity. The 23.6-inch embedded industrial touchscreen all-in-one machine, with its robust and durable design and powerful computing capabilities, is the ideal control terminal for agricultural machinery. This device is equipped with a high-definition large screen, allowing the user to clearly view the machine's operating status and make operational settings through an intuitive interface. Whether for sowing, fertilizing, or harvesting operations, fine management can be achieved through this control panel, significantly improving the efficiency and quality of agricultural production.
| LCD Panel Parameters | Screen Size | 23.6 Inch | ||
| Display Area | 521.28 mm.(Height) X 293.22(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7m , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 1000 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 14ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Built-in Speaker | Power | 2 x 5W | ||
| Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 45 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 569 X 341 X 51.7mm. | ||
| Net Weight | 8 Kilogram | |||
| Package Size | 52.7 X 40.4 X 10.5Centimeter | |||
| Gross Package Weight per Unit | 9 Kilogram | |||
The 23.6-inch industrial control Android touchscreen is not just a simple control panel; it is also an intelligent terminal. Based on the openness and flexibility of the Android system, this touchscreen can install various agriculture-related applications, ranging from weather forecasts to soil moisture monitoring, from crop growth cycle management to pest and disease early warning, covering almost all aspects of agricultural production. In addition, its multi-touch function makes operation simpler and faster, ensuring stable operation even in complex outdoor working environments, which guarantees the efficient operation of agricultural machinery.
The 23.6-inch embedded industrial touchscreen all-in-one machine provides strong technical support for modern agricultural machinery, promoting the modernization of agricultural production. This is a reliable choice for both farmers and equipment manufacturers.
