23.8-Inch Android Embedded Touch Screen for Hospitality Applications, CNC Machines, Logistics Dashboards, and Digital Signage

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-RM238SAT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight case are option
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	23.8 Inch	Aspect Ratio:	16：9
Brightness:	250 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
Andriod OS:	10.0; 11.0	Config:	2+32GB; 4+32GB
Highlight:	23.8-Inch Embedded Touch Screen , CNC Machines Embedded Touch Screen , Logistics Dashboards Embedded Touch Screen

23.8-Inch Android Touch Embedded Screen for Hospitality Applications, CNC Machines, Logistics Dashboards, and Digital Signage

21.5-inch embedded Android all-in-one machine: An efficient solution for self-service information inquiries at airports.

With the popularity of air travel and advancements in technology, travelers' expectations for their travel experience are increasing. To enhance service quality, many airports have begun to adopt advanced self-service information inquiry devices, among which the 21.5-inch embedded Android all-in-one machine has become an important tool for airports to improve service efficiency due to its outstanding performance and ease of use.

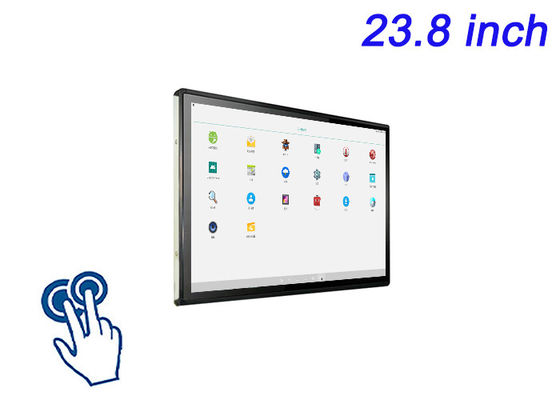

23.8-Inch Android Embedded Touch Screen for Hospitality Applications, CNC Machines, Logistics Dashboards, and Digital Signage 0

21.5-inch embedded Android all-in-one machine - The key to enhancing passenger experience

In the busy airport environment, travelers often need to quickly access important information such as flight details, gate changes, and baggage claim. The 21.5-inch embedded Android all-in-one machine, with its high-definition large screen and smooth operating experience, can effectively assist travelers in self-service information inquiries. This device uses the Android operating system and supports a multilingual interface, ensuring that travelers from around the world can easily use it.

LCD Panel Parameters	Screen Size	23.8 Inch
	Display Area	528.2 mm.(Height) X 297.6(Width)mm.
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7m , 99% sRGB
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Projected Capacitive Touchscreen Monitor
	Touch Points	10 Points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Built-in Speaker	Power	2 x 5W
Configuration PCB Android Built-in (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11.0
	Ethernet	1 x RJ45, Ethernet 1,000 Mbps	1 x RJ45, Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	USB2.0 x 2
			HDMI IN x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 45 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	568.97 X 345 X 51.7mm
	Net Weight	8 Kilogram
	Package Size	62.7 X 40.4 X 10.5Centimeter
	Gross Package Weight per Unit	9 Kilogram

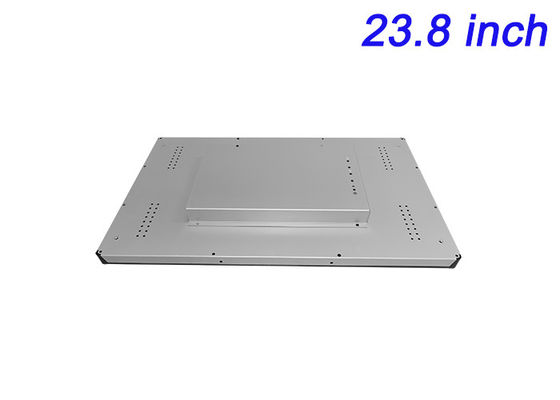

23.8-Inch Android Embedded Touch Screen for Hospitality Applications, CNC Machines, Logistics Dashboards, and Digital Signage 1

Information Inquiry and Service Upgrade - 21.5-inch Industrial Control Embedded Android Screen

In addition to basic information inquiry functions, the 21.5-inch industrial embedded Android screen can also provide more value-added services. For example, it can display weather forecasts, recommend tourist attractions, and even offer online shopping services, enriching the waiting time for travelers. Moreover, the device supports customized development, allowing for functional expansion based on the actual needs of the airport, such as connecting to wireless networks and printing boarding passes, further simplifying the travel process for passengers.

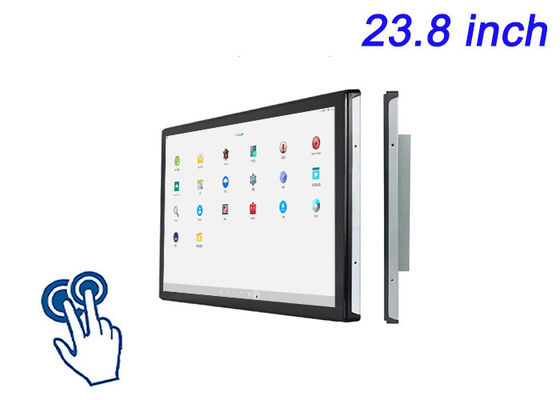

23.8-Inch Android Embedded Touch Screen for Hospitality Applications, CNC Machines, Logistics Dashboards, and Digital Signage 2

The 21.5-inch embedded Android all-in-one machine has brought revolutionary changes to airport self-service information inquiry services with its comprehensive functions and excellent user experience. For both airport managers and travelers, this is a technology worth promoting.
