Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM430SAT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 43 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 300 Cd/m² Max 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Andriod OS: | 10.0; 11.0 | Config: | 2+32GB; 4+32GB |
| Highlight: | 43 Inch Embedded Touch Screen,Android Embedded Touch Screen,Stadium Displays Embedded Touch Screen |
||

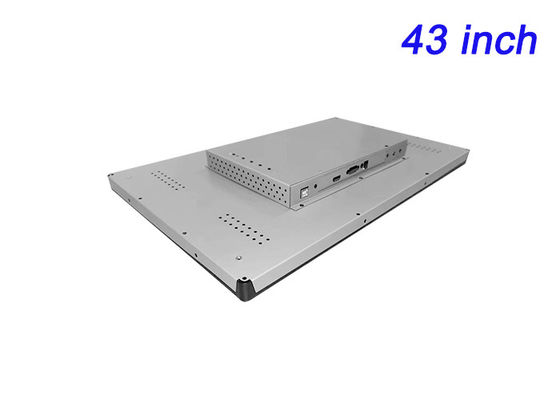

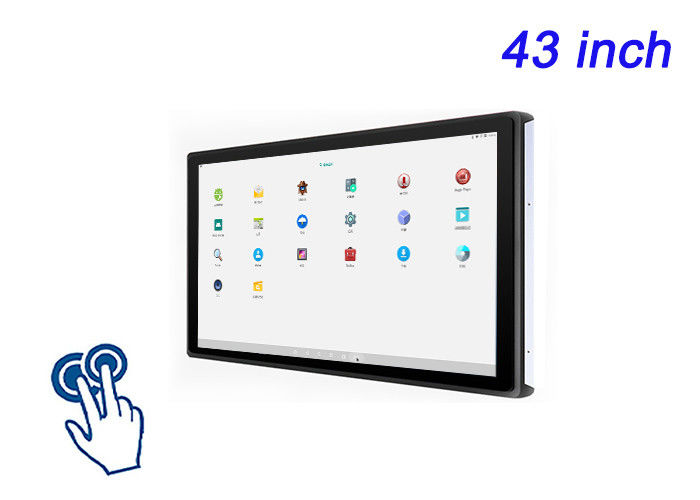

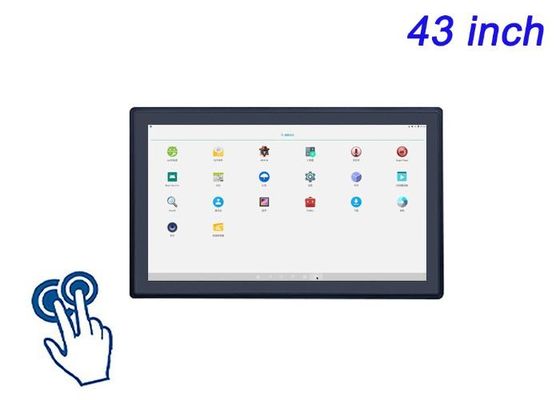

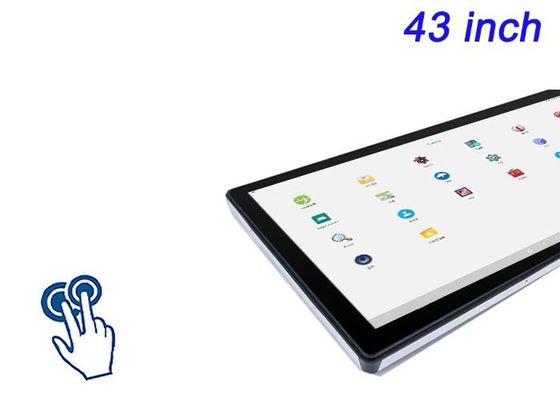

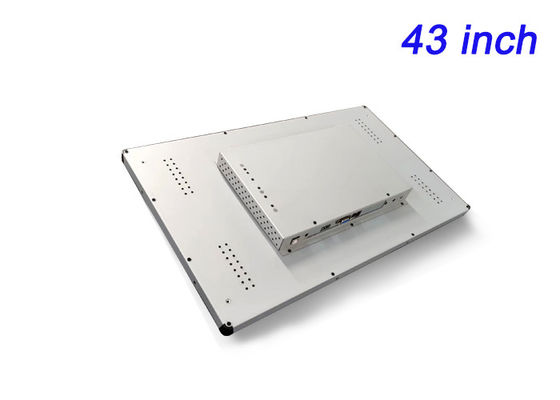

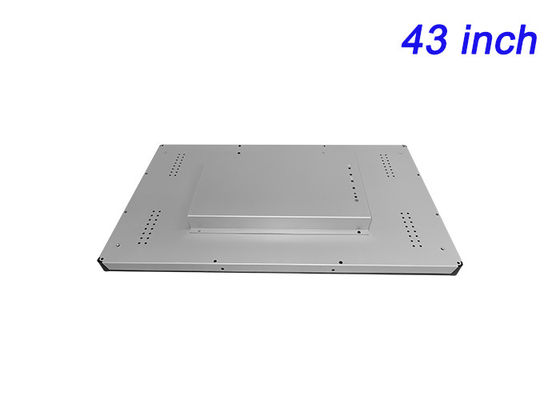

43-inch capacitive touchscreen industrial control Android version: A brand new experience of the Smart Quality Inspection System
In the context of Industry 4.0, intelligent quality inspection systems are gradually becoming key tools for the manufacturing industry to enhance product quality and production efficiency. As a leader in this trend, the 43-inch capacitive touchscreen industrial control Android version brings unprecedented convenience and efficiency to the Smart Quality Inspection System with its outstanding performance and intuitive user interface.
In modern factories, controlling product quality is crucial. The 43-inch capacitive touchscreen industrial control Android model, with its high-resolution display and sensitive touch technology, enables operators to quickly and accurately identify and address quality issues on the production line. This device uses the Android operating system, making software updates and maintenance simple and fast, while also supporting multi-touch, greatly enhancing the efficiency of human-computer interaction.
| LCD Panel Parameters | Screen Size | 43 Inch | ||
| Display Area | 941.2 mm.(Height) X 529.4(Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 | ||
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC | ||
| Brightness | 300cd/m² | 400cd/m² | ||
| Contrast Ratio | 1200 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) | ||
| Response Time | 8ms | 6ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | ||
| Touch Points | 10 Points | |||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Built-in Speaker | Power | 2 x 5W | ||
| Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 90 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 1011 X 599 X 66.9 mm. | ||
| Net Weight | 22 Kilogram | |||
| Package Size | 108.6 X 69.6 X 12.5Centimeter | |||
| Gross Package Weight per Unit | 24 Kilogram | |||
In addition to providing an intuitive user interface, the 43-inch Android industrial control host also possesses powerful data processing capabilities. It can collect and analyze various types of data on the production line in real-time, helping factory managers quickly identify potential issues and make timely adjustments. In addition, this host also supports remote monitoring and management, allowing you to understand the operation status of the quality inspection system anytime and anywhere through the network, ensuring smooth operation of the production line.
The 43-inch capacitive touchscreen industrial control Android model injects new vitality into the Smart Quality Inspection System with its powerful features and ease of use. Whether for improving production efficiency or ensuring product quality, this device demonstrates its irreplaceable value.
