Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM430SA |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are option |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 49 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 300 Cd/m² Max 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Andriod OS: | 10.0; 11.0 | Config: | 2+32GB; 4+32GB |
| Highlight: | 49-Inch Embedded Screen,Smart City Displays Embedded Screen,Stadium Advertising Embedded Screen |
||

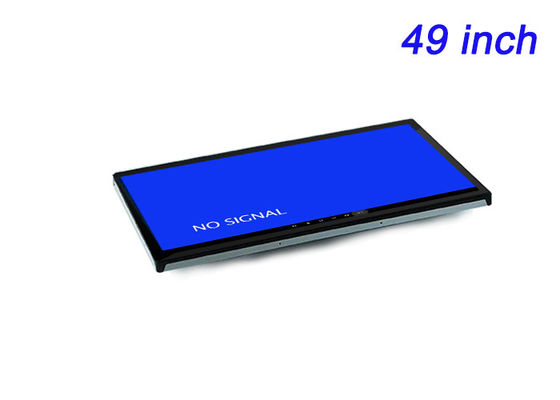

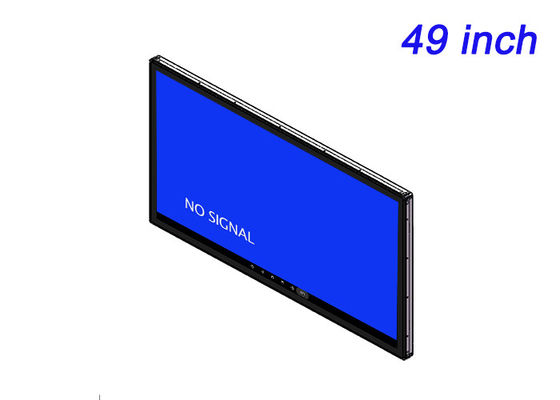

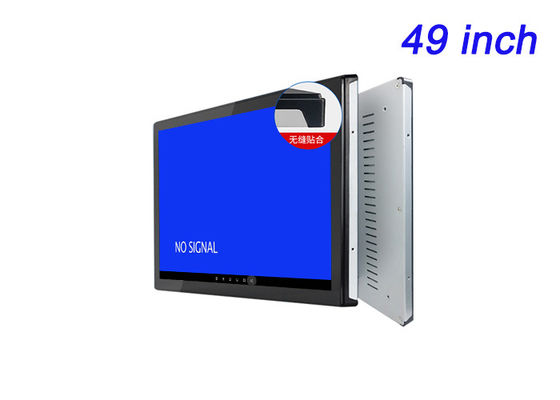

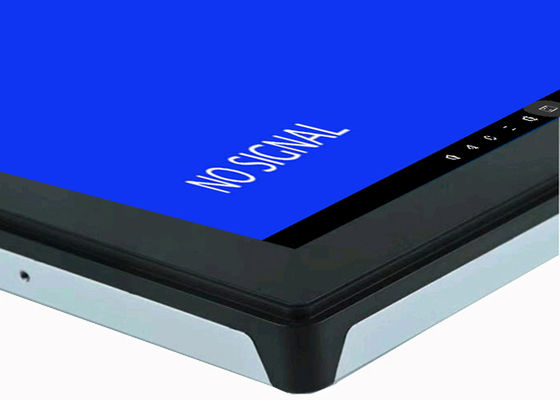

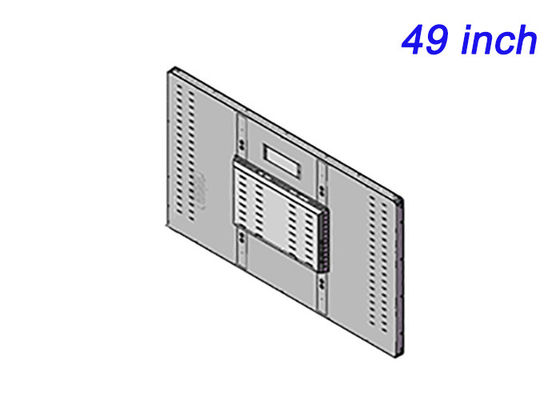

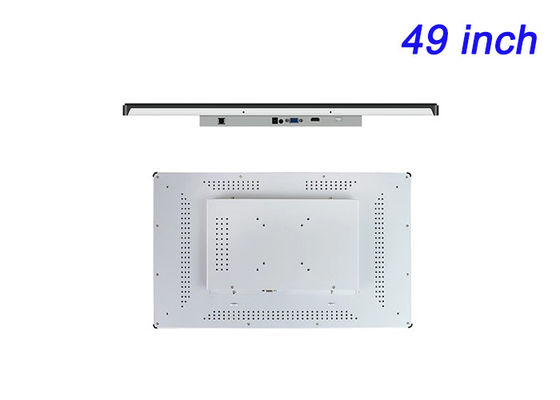

In the age of smart logistics, real-time monitoring and precise inventory management are essential for optimizing warehouse operations. The 49-inch Android industrial all-in-one display, tailored for smart warehousing, provides an efficient, non-touch solution that integrates seamlessly with modern inventory systems.
| LCD Panel Parameters | Screen Size | 49 Inch | ||
| Display Area | 1073.8 mm.(Height) X 604.1 (Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 | ||
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC | ||
| Brightness | 300cd/m² | 400cd/m² | ||
| Contrast Ratio | 1200 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) | ||
| Response Time | 8ms | 6ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Built-in Speaker | Power | 2 x 5W | ||
| Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
| GPU | Mali-T764 | Mali-G52 | ||
| RAM | 2GB | 4GB | ||
| ROM | 32GB | 32GB | ||
| Android System | Android 10.0 | Android 11.0 | ||
| Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
| Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
| Bluetooth | 4.2 | 5 | ||
| Interface | USB2.0 x 2 | USB2.0 x 2 | ||
| HDMI IN x 1 | ||||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 90 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 1144 X 674 X 66.9 mm. | ||
| Net Weight | 29 Kilogram | |||
| Package Size | 137.5 X 14.5 X 84.5Centimeter | |||
| Gross Package Weight per Unit | 32 Kilogram | |||
In the dynamic environment of smart warehouses, clear and reliable data visualization is critical. The 49-inch Android industrial all-in-one display delivers high-definition clarity, ensuring that operators can monitor inventory levels, item locations, and workflow progress at a glance. Its robust performance guarantees smooth updates and accurate reflections of warehouse activities, offering a streamlined inventory tracking experience that reduces human errors.
The 49-inch Android industrial all-in-one display and industrial control machine are indispensable tools for smart warehousing. Their high-definition visualization and dependable performance not only enhance real-time inventory management but also contribute to smoother, more efficient logistics operations. As the logistics industry continues to embrace digital transformation, these displays will become integral to the advancement of smart warehousing systems.
