55-Inch Android Embedded Screen for Digital Signage, Corporate Interfaces, Large-Scale Retail Solutions, and Exhibition Panels

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZXTLCD
Certification:	CE/Rohs/FCC
Model Number:	ZXTLCD-RM550SA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden case, carton, flight case are option
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 pcs per month

Contact Now

Detailed Product Description

Screen Size:	55 Inch	Aspect Ratio:	16：9
Brightness:	300 Cd/m² Max 400 Cd/m²	Install Type:	Embedded, Open-frame, Wall-mounted, Floor-standing
Suitable Environment:	Outdoor; Indoor	Applications:	Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An
Andriod OS:	10.0; 11.0	Config:	2+32GB; 4+32GB
Highlight:	55-Inch Embedded Screen , Corporate Interfaces Embedded Screen , Exhibition Panels Embedded Screen

55-Inch Android Embedded Screen for Digital Signage, Corporate Interfaces, Large-Scale Retail Solutions, and Exhibition Panels

Expanding Industrial Applications, 55-Inch Android Industrial Control All-in-One Machine Redefines Visual Management

In industrial applications, ensuring the seamless integration of data visualization and operational control is critical for effective management. The 55-inch Android industrial control all-in-one machine is specifically designed for industrial environments, offering a non-touch yet highly capable solution for diverse use cases such as production monitoring, facility management, and control centers.

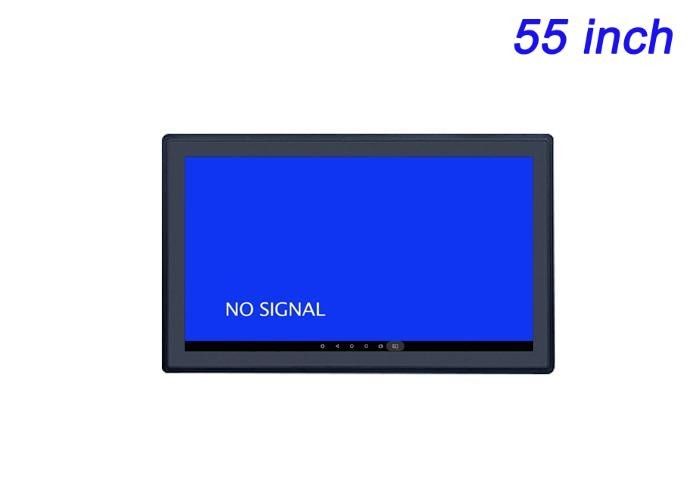

55-Inch Android Embedded Screen for Digital Signage, Corporate Interfaces, Large-Scale Retail Solutions, and Exhibition Panels 0

55-Inch Android Industrial Control All-in-One Machine: High-Definition Visuals for Enhanced Operational Clarity

Industrial operations demand precise and consistent data visualization, and the 55-inch Android industrial control all-in-one machine delivers just that. Its high-definition display ensures users have a comprehensive view of critical information, such as production metrics, equipment status, and facility monitoring. The large screen size allows for better visualization of complex data dashboards, while its reliable performance ensures real-time updates, enabling quick and informed decision-making.

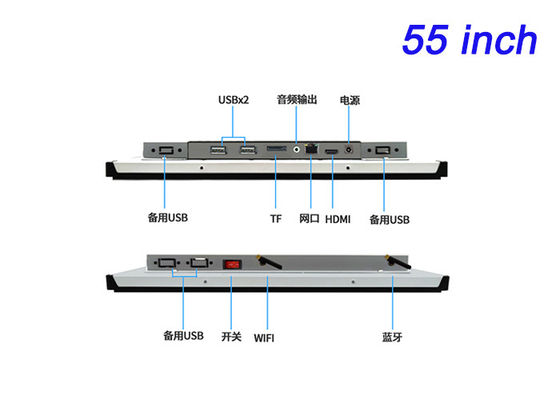

55-Inch Android Embedded Screen for Digital Signage, Corporate Interfaces, Large-Scale Retail Solutions, and Exhibition Panels 1

LCD Panel Parameters	Screen Size	55 Inch
	Display Area	1209.6 mm.(Height) X 680.4 (Width)mm.
	Aspect Ratio	16 : 9	16 : 9
	LCD Type	a-Si TFT-LCD Monitor	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080	3840 X 2160
	Display Color	16.7m , 72% NTSC	1.06B, 74% NTSC
	Brightness	300cd/m²	400cd/m²
	Contrast Ratio	1200 : 1	1000 :1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)	89°/89°/89°/89°(Type)(CR≥10)
	Response Time	8ms	6ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
Built-in Speaker	Power	2 x 5W
Configuration PCB Android Built-in (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11.0
	Ethernet	1 x RJ45, Ethernet 1,000 Mbps	1 x RJ45, Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	USB2.0 x 2
	Interface	USB2.0 x 2	HDMI IN x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 90 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
Features	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	1287 X 769 X 68.4 mm.
	Net Weight	32 Kilogram
	Package Size	137.8 X 20.0 X 89.4Centimeter
	Gross Package Weight per Unit	35 Kilogram

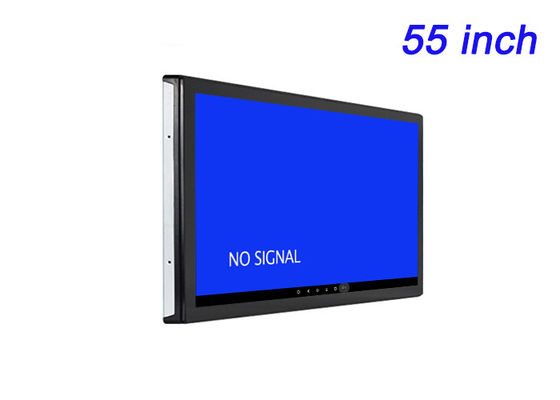

55-Inch Android Embedded Screen for Digital Signage, Corporate Interfaces, Large-Scale Retail Solutions, and Exhibition Panels 2

55-Inch Android Industrial System Host: Reliable Performance for Long-Term Industrial Use
In addition to its visual capabilities, the 55-inch Android industrial system host serves as a robust foundation for industrial applications. Its stable operation across diverse software platforms makes it compatible with a range of industrial and automation systems. Built with durability in mind, this system is designed to withstand harsh environments and operate continuously, ensuring optimal performance and reducing downtime in critical industrial settings.

The 55-inch Android industrial control all-in-one machine and its system host are quickly becoming essential tools in industrial applications. Their large-format, high-definition display and reliable operational capabilities make them ideal for improving productivity, safety, and workflow efficiency. As industries continue to adopt advanced technologies, these devices will play a pivotal role in transforming operational management.
