Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM430SWT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 43 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 300 Cd/m² Max 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Windows Versions: | 10; 11 | CPU: | Intel I5-4310M; Intel I5-6100T |
| RAM+ROM (GB): | 4+128; 8+256 |
In today's rapidly developing industrial robotics industry, an efficient and stable interactive interface has become key to enhancing the intelligence level of production lines. The 43-inch industrial-grade touchscreen tablet, with its outstanding performance and features designed specifically for industrial environments, is gradually becoming a core component of industrial robot control systems, leading a new wave of transformation in intelligent manufacturing.
| LCD Panel Parameters | Screen Size | 43 Inch | ||
| Display Area | 941.2 mm.(Height) X 529.4(Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 | ||
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC | ||
| Brightness | 300cd/m² | 400cd/m² | ||
| Contrast Ratio | 1200 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) | ||
| Response Time | 8ms | 6ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 90 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 1011 X 599 X 66.9 mm. | ||
| Net Weight | 22 Kilogram | |||
| Package Size | 108.6 X 69.6 X 12.5Centimeter | |||
| Gross Package Weight per Unit | 24 Kilogram | |||

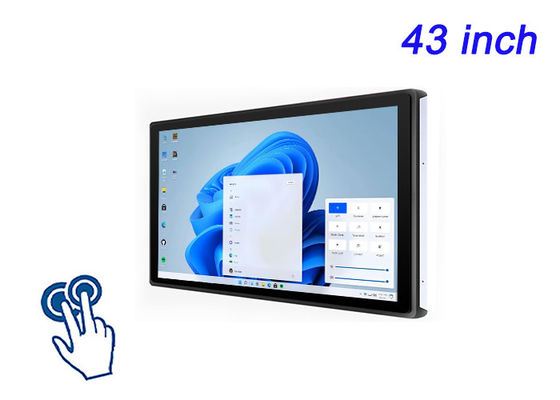

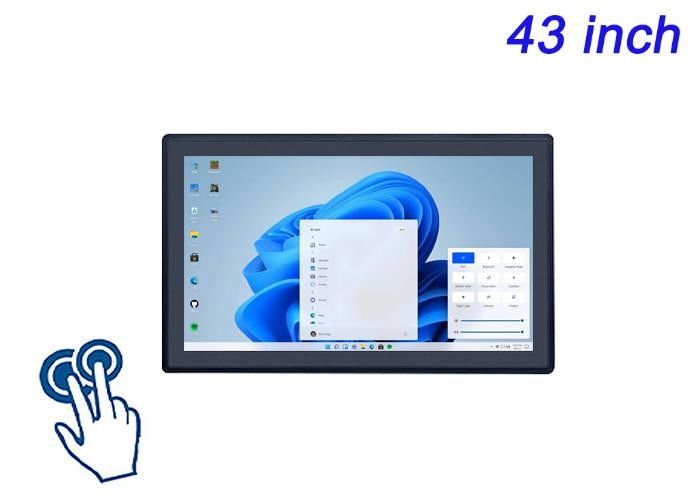

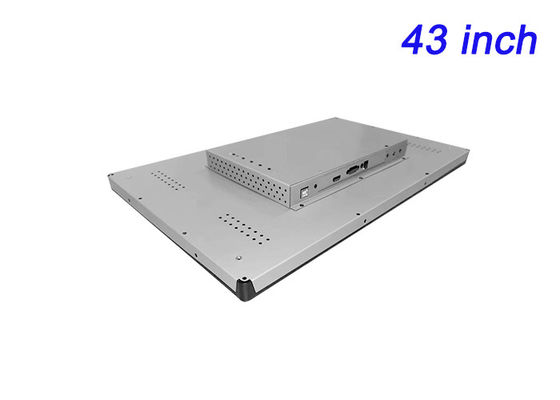

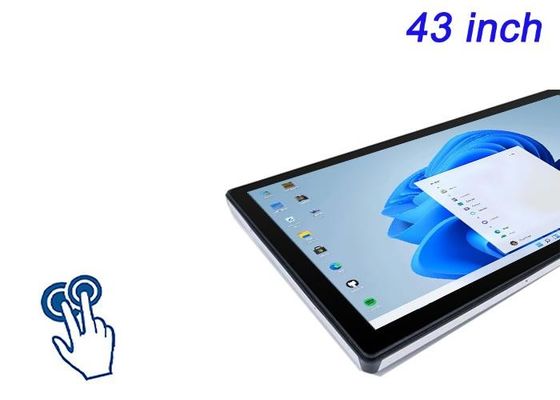

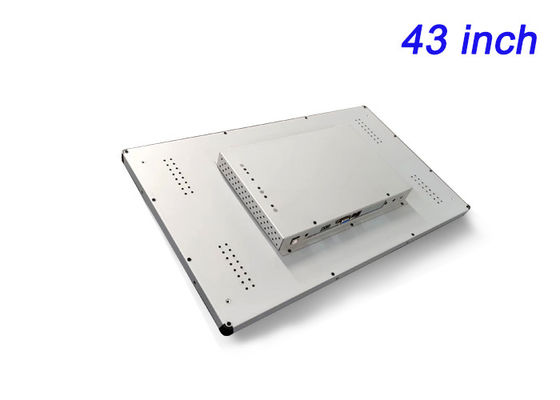

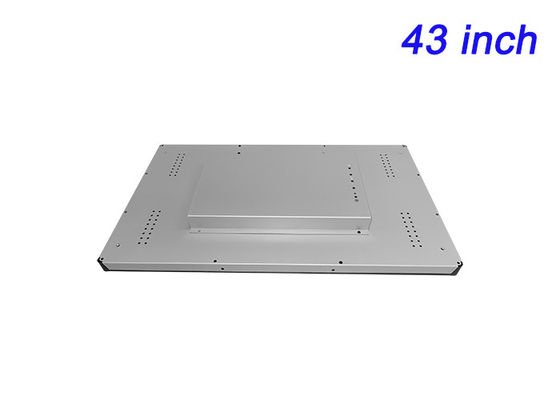

43-inch Industrial Grade Touchscreen: Expanding Vision, Precise Control
The 43-inch industrial-grade touchscreen, tailored for the industrial robot industry, provides users with a broader view due to its large display area. Whether monitoring complex process flows or fine-tuning robot programming, everything is clear at a glance. By integrating high-sensitivity touch technology, precise and accurate operation commands can be issued, greatly enhancing production efficiency and operational precision.
43-inch Industrial Touch Computer: Integrated Innovation, Stable and Reliable
As a 43-inch industrial touch computer that combines display, computing, and touch functions, it is not only a high-performance display terminal but also the brain of intelligent control for industrial robots. Using industrial-grade components and reinforced design, it ensures stable operation in harsh industrial environments, reducing failure rates and lowering maintenance costs. At the same time, the powerful data processing capability supports multi-task parallel processing, providing a solid guarantee for the efficient collaborative operation of industrial robots.
The 43-inch industrial-grade touchscreen tablet, with its outstanding display performance, precise touch experience, and stable operating performance, is gradually becoming an indispensable part of the industrial robot industry. It not only enhances the intelligence level of the production line but also brings significant economic and social benefits to enterprises. Choosing the 43-inch industrial touchscreen computer is choosing the infinite possibilities of future intelligent manufacturing.
