Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM550SWT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight case are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 55 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|

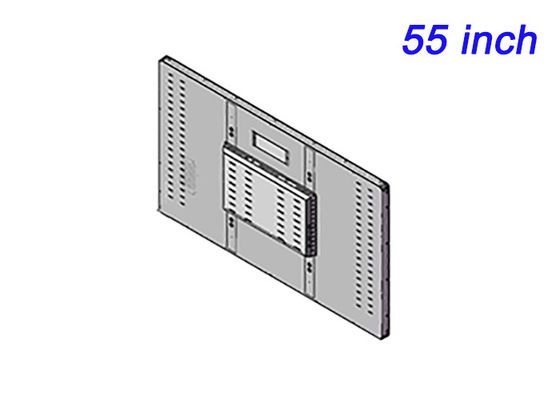

| Brightness: | 300 Cd/m² Max 400 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Windows Versions: | 10; 11 | CPU: | Intel I5-4310M; Intel I5-6100T |
| RAM+ROM (GB): | 4+128; 8+256 |
In the vibrant Children's Play Park, effective entertainment content display and children's interaction are key to enhancing the park's appeal and customer satisfaction. The 55-inch embedded Capacitive Touch All-in-One Computer, as an efficient platform for interactive entertainment and information display, is becoming an important tool for Children's Play Parks to enhance service quality and customer experience.

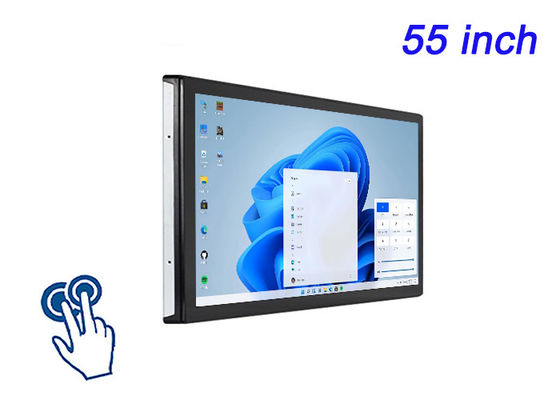

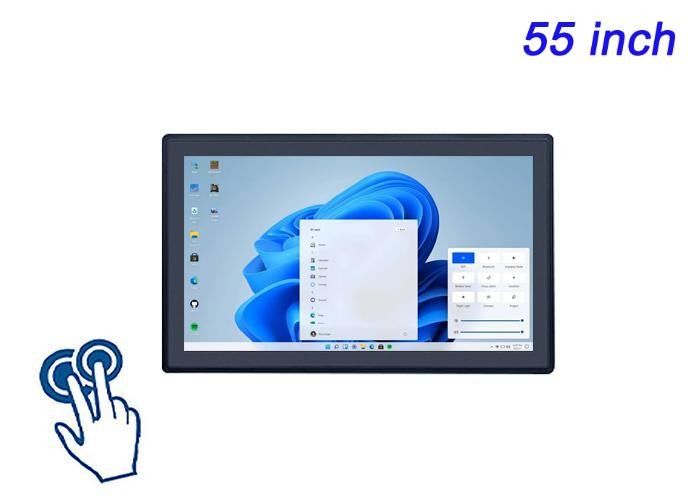

The 55-inch embedded Capacitive Touch All-in-One Computer features an HD LCD touch screen, providing a clear and vivid visual experience. This large screen size is suitable for the entrance, central area, or interactive experience zone of children's play parks, making game content and advertising promotions more eye-catching.
It can integrate various functions such as game introductions, video playback, interactive educational applications, and dynamic information inquiries. Through simple touch operations, children can easily access the information they need, enhancing both the fun and educational value of their play.
Considering the price of the 55-inch embedded network capacitive touch advertising machine and the marketing effects it brings, this investment is highly cost-effective for children's play parks. By enhancing customer interaction experience and revisit rates, the park can quickly recoup its investment and significantly increase revenue.
| LCD Panel Parameters | Screen Size | 55 Inch | ||
| Display Area | 1209.6 mm.(Height) X 680.4 (Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 | ||
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC | ||
| Brightness | 300cd/m² | 400cd/m² | ||
| Contrast Ratio | 1200 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) | ||
| Response Time | 8ms | 6ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | ||
| Touch Points | 10 Points | |||
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
| Glass 3 mm. Optical mount to reduce parallax | ||||
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
| Response Speed | < 6ms | |||
| Touch Accuracy | More than 90% of the touch area ±2 mm | |||
| Touch Method | Inch Stylus | |||
| Output Format | Coordinate Output | |||
| Click Time | Unlimited | |||
| Smallest Touch Size | 5 mm | |||
| Long-lasting Durability | Yes, Available | |||
| Touch Interface | USB | |||
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||

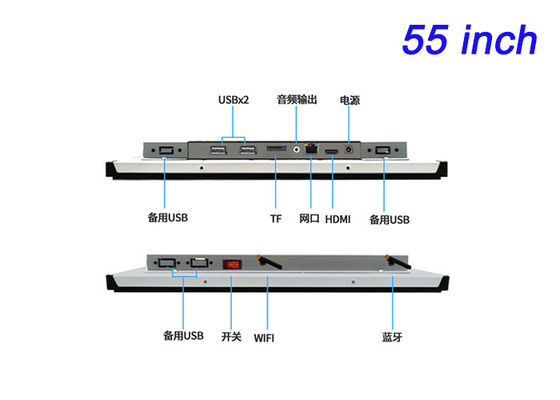

| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 90 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 1287 X 769 X 68.4 mm. | ||
| Net Weight | 32 Kilogram | |||
| Package Size | 137.8 X 20.0 X 89.4Centimeter | |||
| Gross Package Weight per Unit | 35 Kilogram | |||
Technical Features of the Smart Capacitive Interactive Touch Advertising Machine All-in-One Computer
The smart capacitive interactive touch advertising machine all-in-one computer is based on the Windows operating system, providing good compatibility and security. This system supports easy and quick content updates and management, while also enabling remote monitoring and maintenance.
