Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM101SW |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 10.1 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 400 Cd/m² Max 1000 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Windows Versions: | 10; 11 | CPU: | Intel I5-4310M; Intel I5-6100T |
| RAM+ROM (GB): | 4+128; 8+256 |

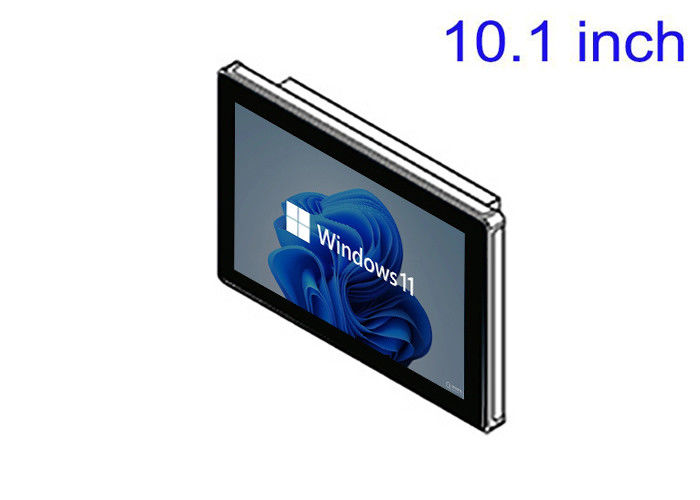

In today's world where intelligent robots are becoming increasingly popular, efficient and precise data monitoring has become the key to enhancing robot performance and efficiency. To this end, we have meticulously crafted the 10.1-inch IPC industrial control all-in-one machine embedded solution, specifically designed for intelligent robot data monitoring panels, leading the industry with outstanding performance and compact structure.
As a core component for monitoring intelligent robot data, the 10.1-inch IPC industrial control all-in-one machine features a high-definition display that presents key metrics and status information of the robot's operation in real-time. Although the non-touch design simplifies the user interface, operators can still easily access and analyze data through an external keyboard or mouse, ensuring that the robot remains in optimal working condition. Its compact embedded structure perfectly integrates into the robot's body, saving space while enhancing overall aesthetics.
| LCD Panel Parameters | Screen Size | 10.1 Inch | ||
| Display Area | 217 mm.(Height) X 135.6(Width)mm. | |||
| Aspect Ratio | 16 : 9 | 16 : 10 | ||
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor | ||
| Maximum Resolution | 1280 X 800 | 1920 X 1200 | ||
| Display Color | 16.7M, 50% NTSC | 16.2M , 50% NTSC | ||
| Brightness | 400cd/m² | 1000cd/m² | ||
| Contrast Ratio | 900 : 1 | 1000 :1 | ||
| Viewing Angle (Up/Down/Left/Right) | 85°/85°/85°/85° (Type)(CR≥10) | 80°/80°/80°/80° (Type)(CR≥10) | ||
| Response Time | 30ms | 30ms | ||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ohm | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 15 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Stereo Speaker Length | 1.5m | |||
| Package Size | Device Dimensions | 259.62 X 177.62 X 41.6 mm. | ||
| Net Weight | 2 Kilogram | |||
| Package Size | 31 X 23.3 X 11Centimeter | |||
| Gross Package Weight per Unit | 4 Kilogram | |||
10.1-inch industrial control all-in-one machine embedded display: a stable and reliable monitoring partner.
In the complex and ever-changing working environment of intelligent robots, the 10.1-inch industrial control all-in-one machine with an embedded display has become a reliable partner for robot data monitoring due to its industrial-grade high quality and stability. It not only withstands the erosion of harsh environments on the equipment but also operates stably for long periods, ensuring the continuity and accuracy of data monitoring. Whether in high temperatures, humidity, or vibration environments, this embedded display can handle it with ease, safeguarding the efficient operation of intelligent robots.
The 10.1-inch IPC industrial control all-in-one machine with an embedded display is the ideal choice for intelligent robot data monitoring, thanks to its excellent display effect, compact structural design, and stable and reliable performance. In the future of intelligent manufacturing, it will continue to play an important role, helping robotics technology reach new heights.
