Give your amazing touch and visual experience !!!
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | ZXTLCD |
| Certification: | CE/Rohs/FCC |
| Model Number: | ZXTLCD-RM156SW |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case, carton, flight cases are optional |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pcs per month |
| Screen Size: | 15.6 Inch | Aspect Ratio: | 16：9 |
|---|---|---|---|
| Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
| Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
| Windows Versions: | 10; 11 | CPU: | Intel I5-4310M; Intel I5-6100T |
| RAM+ROM (GB): | 4+128; 8+256 |

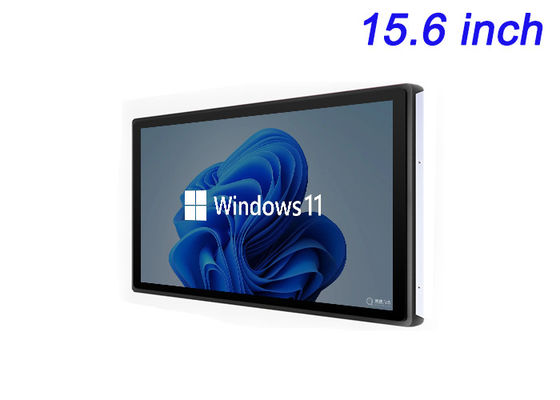

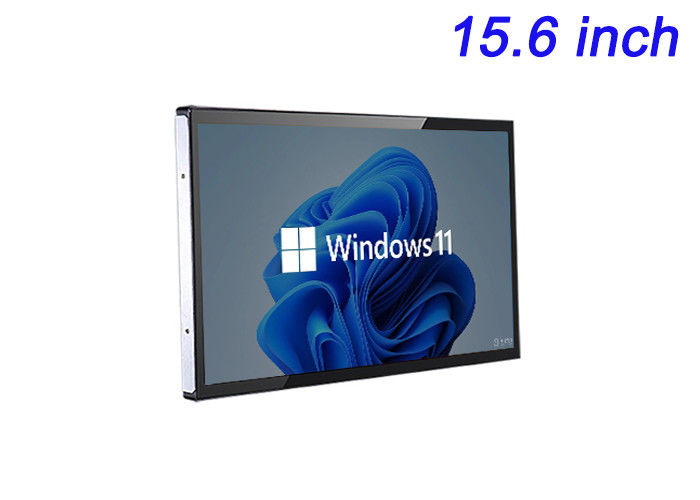

In the mobile space of a bus, how to effectively convey advertising information is a crucial consideration for advertisers. The 15.6-inch high definition embedded industrial display, specifically designed for internal bus advertising, provides a comprehensive display solution that is non-touch but fully functional.
On the bus, the 15.6-inch high-definition embedded industrial display successfully attracted passengers' attention with its high-quality visuals. It not only clearly displays advertising content but also ensures smooth playback of the advertisements through stable performance, thereby enhancing the effectiveness of the ads.
At the same time, the 15.6-inch LCD industrial control machine display also plays an important role in advertising playback on the bus. It not only operates stably across various systems but also is compatible with various advertising software, providing users with a convenient advertising management platform. Moreover, its durable design allows it to operate stably for a long time in the frequently vibrating environment of a bus, optimizing the effectiveness of advertising communication.
| LCD Panel Parameters | Screen Size | 15.6 Inch | ||
| Display Area | 344.2 mm.(Height) X 193.5(Width)mm. | |||
| Aspect Ratio | 16 : 9 | |||
| LCD Type | a-Si TFT-LCD Monitor | |||
| Maximum Resolution | 1920 X 1080 | |||
| Display Color | 16.7M , 72% NTSC | |||
| Brightness | 250cd/m² | |||
| Contrast Ratio | 700 : 1 | |||
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
| Response Time | 30ms | |||
| LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
| Field Frequency | 60Hertz | |||
| Audio parameters | Audio system | Stereo | ||
| Speaker size | ≈ 99 x 45 x 20 mm | |||
| Impedance | 8 Ω | |||
| Power | 2 x 5 Watt | |||
| Loudness | > 80 Decibel | |||
| Interface | 4-pin connector | |||
| Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
| Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
| RAM | 4GB | 8GB | ||
| Storage Memory Capacity | 128GB | 256GB | ||
| OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
| Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
| Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
| Audio Format | MP3, WMA | |||
| Photo Format | BMP, JPEG, PNG, GIF etc. | |||
| Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
| HDMI | 1 | |||
| USB | 4 | |||
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
| Maximum Power Loss | ≤ 30 Watt | |||
| Standby Mode Power Loss | < 1 Watt | |||
| Features | Operating Temperature | 0℃ ~ 50℃ | ||
| Storage Temperature | Below 10℃ ~ +60℃ | |||
| Package Size | Device Dimensions | 389 X 249 X 51.7mm. | ||
| Net Weight | 5 Kilogram | |||
| Package Size | 44.2 X 30 X 10.5Centimeter | |||
| Gross Package Weight per Unit | 5.5 Kilogram | |||
The 15.6-inch high-definition embedded industrial display and the 15.6-inch LCD industrial control machine display, with their high-definition picture quality and stable operating performance, are becoming a new choice for advertising in public buses. They not only enhance the attractiveness of advertisements but also improve their dissemination effects. In the future, with the continuous advancement of technology, they will play a greater role in the advertising industry.
