Place of Origin: | Guangdong, China |
Brand Name: | ZXTLCD |
Certification: | CE/Rohs/FCC |
Model Number: | ZXTLCD-RM215SW |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | wooden case, carton, flight cases are optional |
Delivery Time: | 3-5 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pcs per month |
Screen Size: | 21.5 Inch | Aspect Ratio: | 16:9 |
---|---|---|---|
Brightness: | 250 Cd/m² | Install Type: | Embedded, Open-frame, Wall-mounted, Floor-standing |
Suitable Environment: | Outdoor; Indoor | Applications: | Industrial Control, Medical Equipment, Automotive Systems, Various Self-service Terminals (new Retail Vending Machines/financial Terminals/information Kiosks/parcel Lockers/storage Lockers/garbage Recycling Cabinets/charging Stations, Etc.), Hospitality An |
Windows Versions: | 10; 11 | CPU: | Intel I5-4310M; Intel I5-6100T |
RAM+ROM (GB): | 4+128; 8+256 |

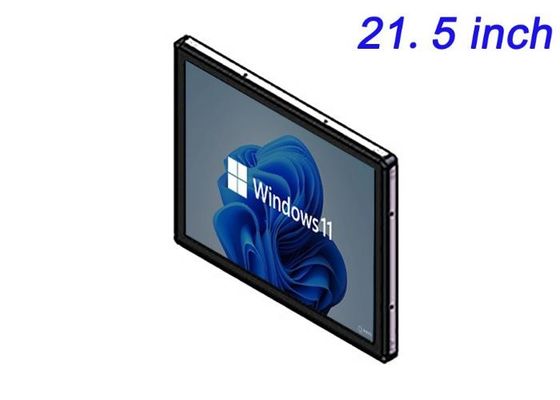

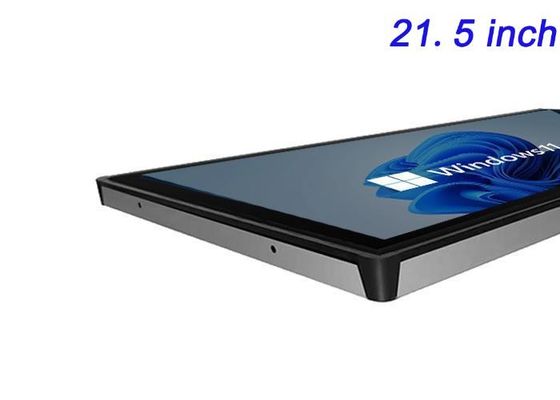

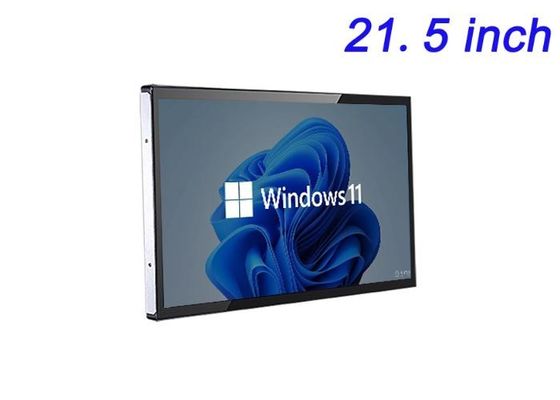

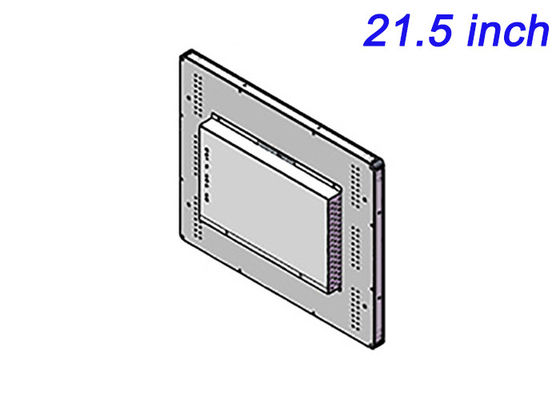

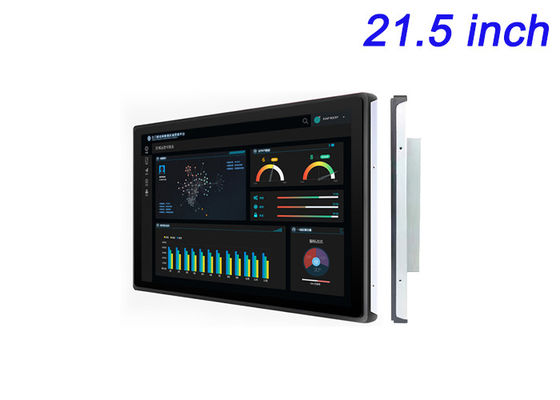

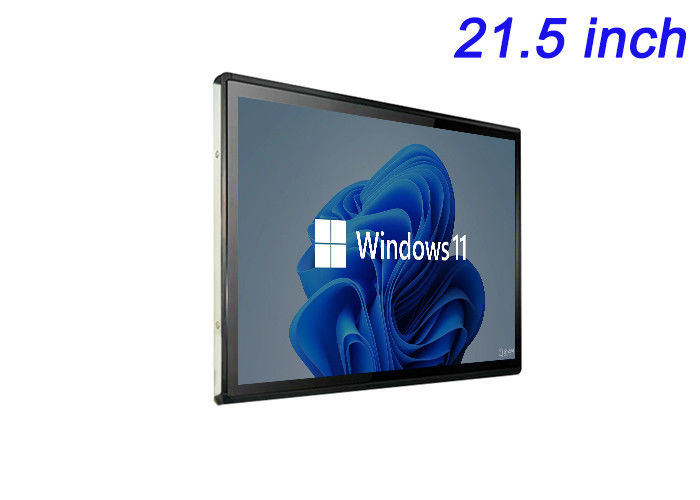

In the modern parking lot that pursues efficient management and convenient experience, every detail showcases the charm of intelligent upgrades. Among them, the 21.5-inch embedded industrial wall-mounted display, with its outstanding performance and flexible installation methods, has become the ideal choice for parking lot information display screens, bringing an unprecedented visual feast and operational convenience to car owners and management personnel.
The 21.5-inch embedded industrial control wall-mounted display, equipped with advanced display technology, is specifically designed for parking lot information display. Its embedded design not only saves space but also perfectly integrates with the surrounding environment, showcasing a high-end and elegant appearance. High-definition picture quality combined with high brightness ensures that information is clearly presented whether under the blazing sun or in drizzling rain, making parking guidance, promotional activities, and safety reminders easily visible, greatly enhancing the service quality and operational efficiency of the parking lot.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.64 mm (Height) X 268.11 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 523 X 315 X 51.7 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 58 X 37.8 X 10.5Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
It is particularly worth mentioning that this 21.5-inch embedded high-brightness display is optimized for outdoor or semi-outdoor environments, ensuring the visibility and readability of information content even in strong light conditions. The high-brightness screen design effectively resists environmental light interference, making each screen the brightest guiding light in the parking lot, providing drivers with instant and accurate navigation information while showcasing the professional image and intelligent management strength of the parking lot.
The 21.5-inch embedded industrial control wall-mounted display, with its efficiency, high brightness, and easy installation features, is gradually becoming the preferred solution for information display screens in parking lots. It not only enhances the level of intelligence in parking lots but also provides car owners with a more convenient and comfortable parking experience. Choosing it means choosing a smarter and more efficient future parking era.
